Effectivity Button, via Fault Code Master

The A/C Effectivity button is a standard button found throughout the system. The following is just one example of the A/C Effectivity button as displayed in the system.

Select the A/C Effectivity button to apply A/C Effectivity to the selected part from the Fault Code Master. Assigning aircraft effectivity to parts is needed, for example, in order to be allowed to install parts only on those aircraft they are effective to. A part's A/C Effectivity is a vital configuration that affects multiple types of transactions throughout the system.

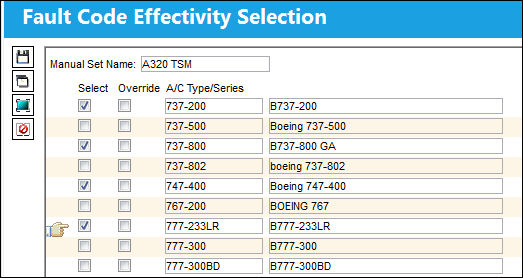

When the button is selected, the P/N Effectivity appears as follows.

The following information/options are available in this window:
_____________________________________________________________________________________

Fleet Select All / Deselect All buttons

Use these buttons to select all fleets (including every aircraft) or to deselect all fleets.

Override button

The Override button allows users to specify effectivity for individual aircraft in the selected Type/Series. Once the override has been applied, the Override checkbox will appear selected.

Select checkbox

Select this checkbox if the P/N is to be effective to this aircraft. Only those aircraft with this checkbox selected will have effectivity.

Override checkbox

The Override checkbox indicates whether or not individual aircraft have been selected for effectivity. This is done using the Override Button. Once individual aircraft are selected, the checkbox will appear selected.

A/C Type/Series

The entire aircraft fleet. An entire fleet can be selected for effectivity by selecting the A/C Type/Series checkbox or individual aircraft from that fleet can be selected by selecting the Expand / Collapse buttons.

Description

The description of the A/C Type/Series

_____________________________________________________________________________________

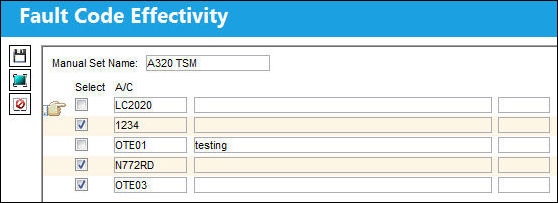

To select only specific Tail Numbers within a fleet Type/Series, select the Override button.

Once all applicable Aircraft have been selected, select the Save button.

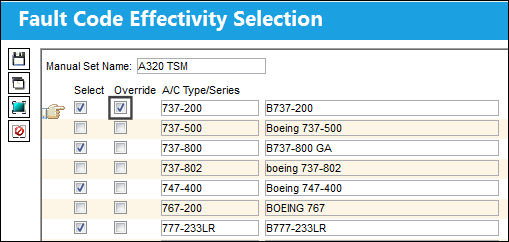

The Override checkbox now appears selected due to the partial effectivity that has been applied to the Type/Series.
