MTBURNLAPRINT - P/N MTBUR Print Excludes Unscheduled NLA Removal Due to NHA's Removal

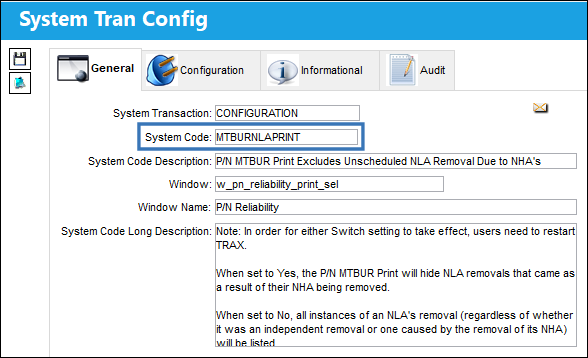

P/N MTBUR Print Excludes Unscheduled NLA Removal due to NHA's removal

Affected Window: w_pn_reliability_print_sel

Note: In order for either Switch setting to take effect, users need to restart TRAX.

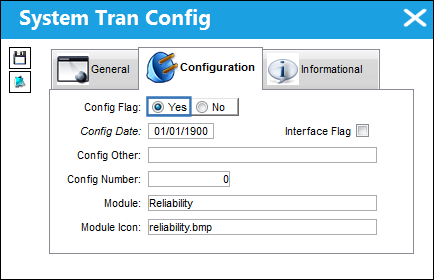

Switch set to Yes:

When set to Yes, the P/N MTBUR Print will hide NLA removals that came as a result of their NHA being removed.

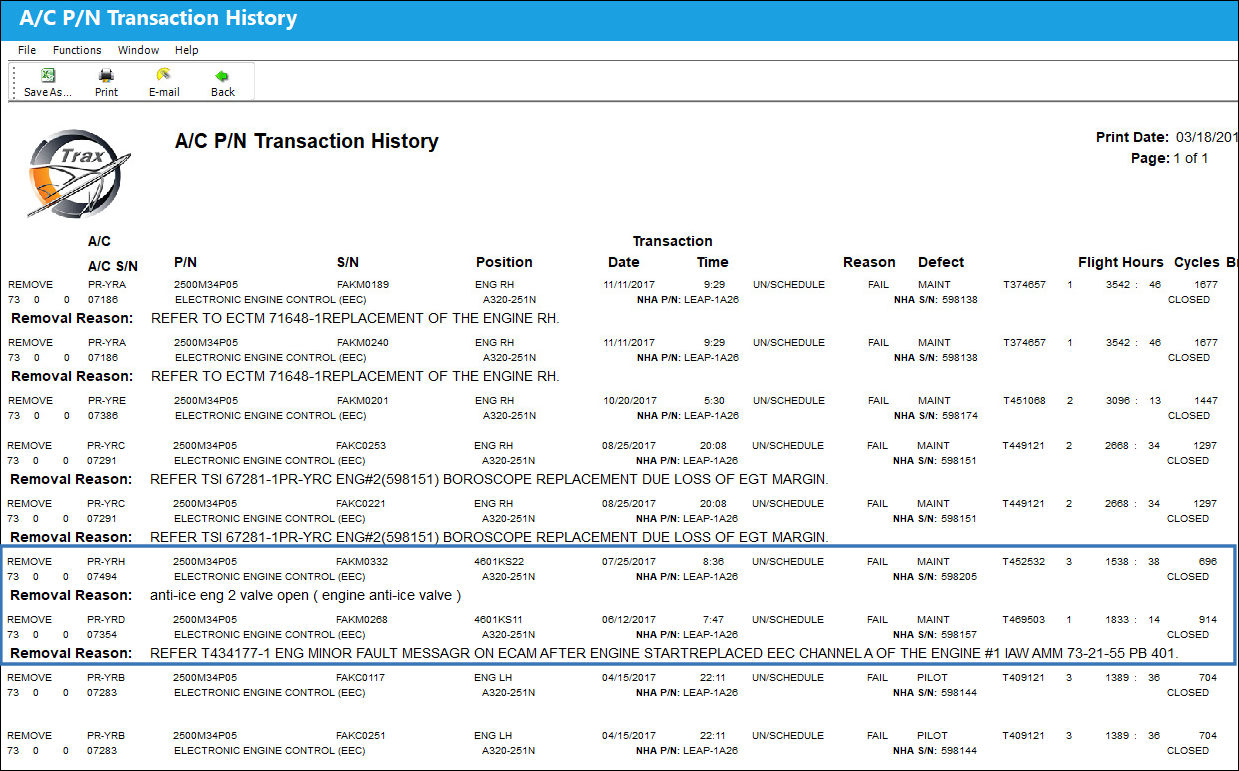

In this example, a NLA had been removed a total of ten times as seen below. However, eight of those removals were a result of its NHA being removed from the aircraft; only two (marked below) were independent removals.

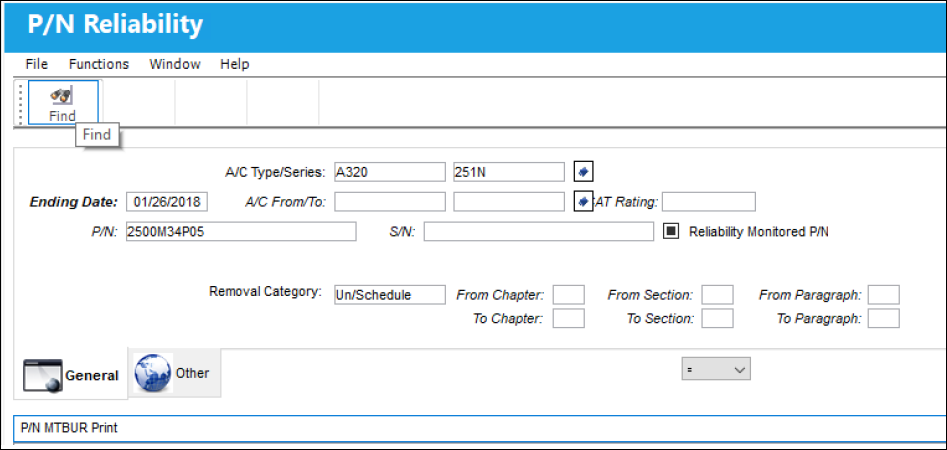

The user decides to run the P/N MTBUR Print for the NLA in question.

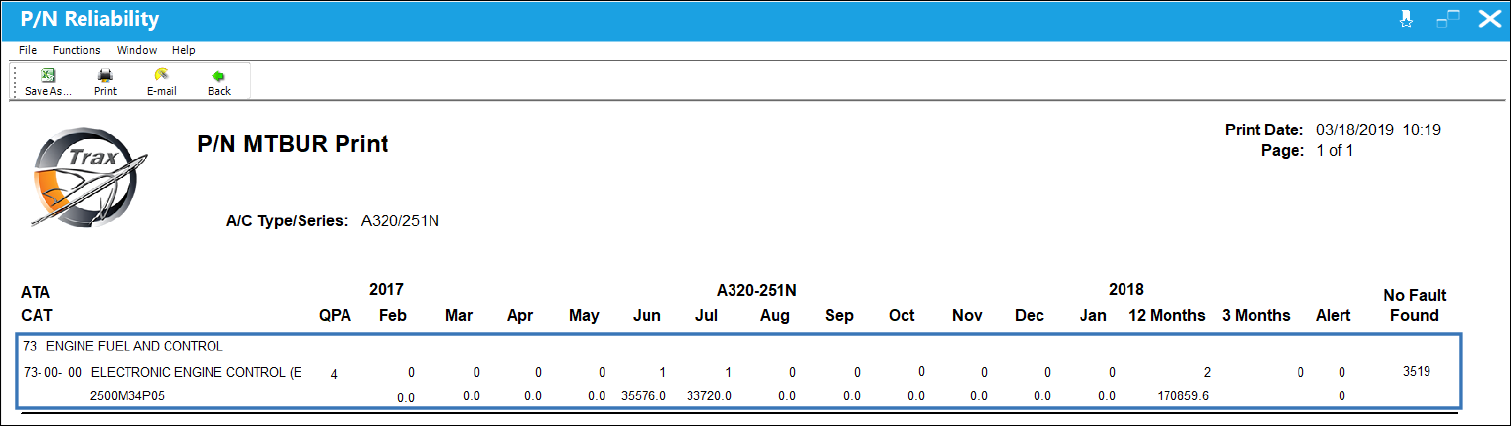

The generated P/N MTBUR Print has been filtered and only shows the two independent NLA removals.

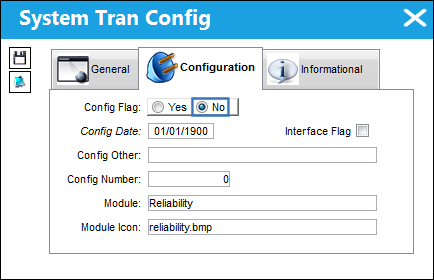

Switch Set to No:

When set to No, all instances of an NLA's removal (regardless of whether it was an independent removal or one caused by the removal of its NHA) will be listed.

In this example, a NLA had been removed a total of ten times as seen below. However, eight of those removals were a result of its NHA being removed from the aircraft; only two (marked below) were independent removals.

The user decides to run the P/N MTBUR Print for the NLA in question.

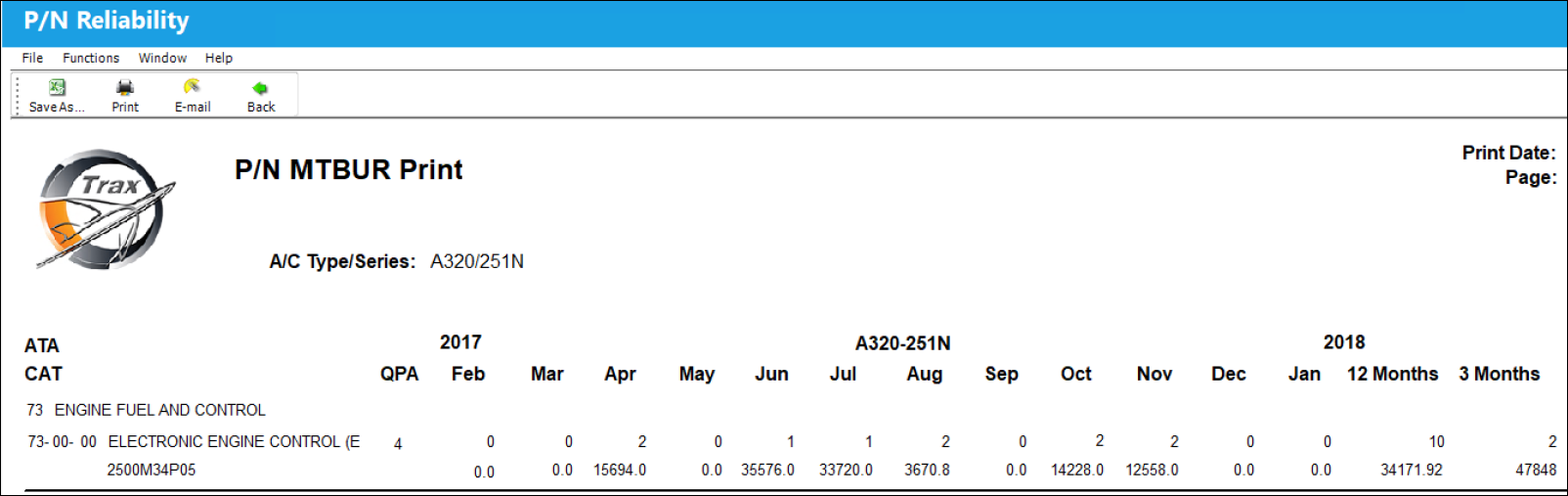

The P/N MTBUR Print remains unfiltered and shows every removal that has occurred.
