TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > Aircraft Type/Series > A/C Type/Series Buttons > Survey Forms Button, via A/C Types/Series > A/C Types Series Forms Revision, General Tab

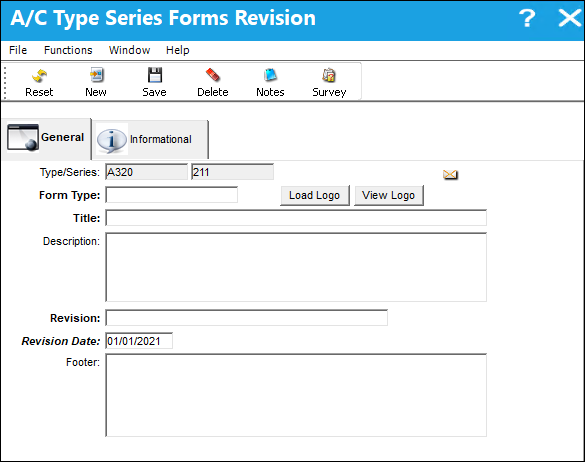

The A/C Type Series Forms Revision window is used to set up and categorize survey forms based on fleet type/series.

Note: Existing survey forms will appear at the bottom of the window.

The following information/options are available in this window:
_____________________________________________________________________________________

Type/Series

The aircraft type/series the survey form will be available for.

Form Type

The user defined purpose of the survey form (e.g, Fluids, Bird Strike).

Form Title

The survey form name which will be visible to the user via the PilotLog app.

Description

A brief description that will appear under the survey form name.

Revision

The current revision of the survey form.

Revision Date

The date the survey form was last revised.

Footer

Text that will appear at the bottom of the survey form.

Load Logo button

Allows the user to upload an image to appear in the survey form.

View Logo button

Allows the user to preview the image uploaded.

_____________________________________________________________________________________
