TRAX MANUALS > Library > Library Module > Library, Update Menu > Manual Control > Manual Master Buttons > P/N Effectivity Button, via Manual Master

Along with Aircraft, a manual can also be effective to particular part.

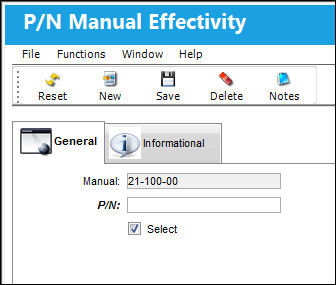

Select the P/N Effectivity button to apply Part Number effectivity to the manual:

The following information/options are available in this window:
_____________________________________________________________________________________

Manual

The title of the manual. This field will be grayed.

P/N

The Part Number reference for the aircraft part to which the manual will be effective.

Select Checkbox

Select if Part Number effectivity is required to be active. Informational only.

_____________________________________________________________________________________

Additionally, the P/N Manual Effectivity, Informational Tab and the Notes button are available to view and include information relevant to the record.
