TRAX MANUALS > TraxDoc > TraxDoc Module > TraxDoc, Update Menu > TraxDoc Master > TraxDoc Document Detail > TraxDoc Document Detail Buttons > Import From OEM Manual Button, via TraxDoc Document Detail > Load an AMM through TraxDoc, via Aircraft Maintenance Manual (AMM) Doctype > View AMM Effectivity Button, via Task Card Create from AMM

From the Task Card Create from AMM window, select the Effectivity button. Here the user may view effective aircraft.

The TraxDoc must be effective to at least one Type/Series (excluding EMM and EIPC TraxDocs).

If the TraxDoc is effective to multiple Type/Series, then the SGML Designator for each Type/Series must be set to the same value.

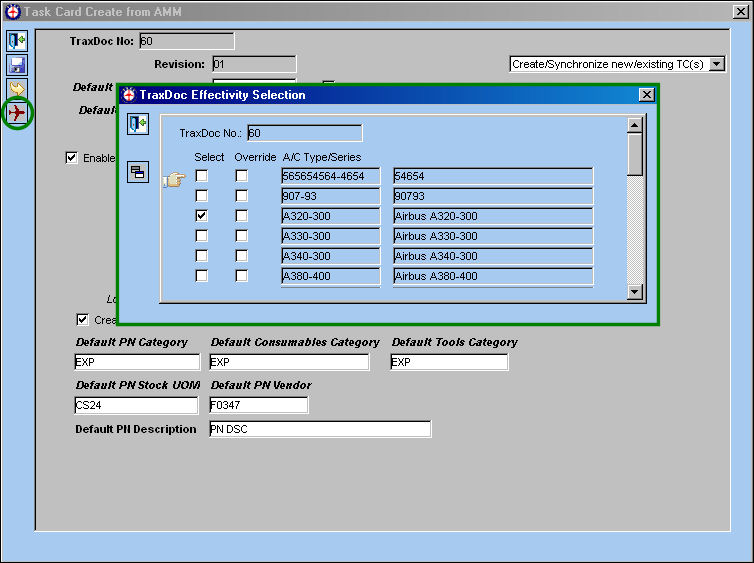

The TraxDoc Effectivity Selection window appears:

Note: This is a view only window.

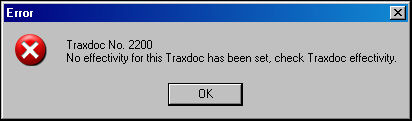

The TraxDoc must be effective to at least one Type/Series (excluding EMM and EIPC TraxDocs). If effectivity is not established, the following error will appear:

If the TraxDoc is effective to multiple Type/Series, then the SGML Designator for each Type/Series must be set to the same value.
