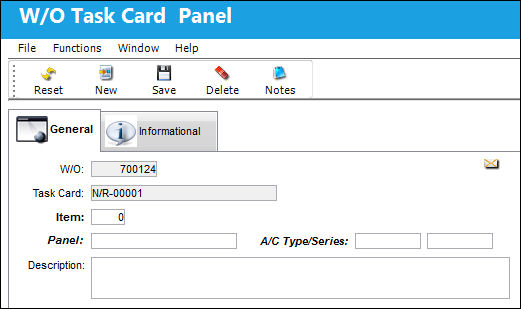

Select the Panel button to enter the specific Panels that are required to be removed in order to carry out the task. These will later be used to produce an access Panel removal sheet on a Work Order. Panels can be validated against data in the Task Card Control Master option in the Engineering module.

The following information/options are available in this window:
_____________________________________________________________________________________

Task Card

The Task Card / Job Card that details the scheduled maintenance work.

Item (0 = ALL)

The specific item number on the Task Card that this record is to be associated with. Leave default '0' to have this record associated with all item numbers on the Task Card.

Panel

The Panel reference to be removed for access.

Description

The Panel description information.

_____________________________________________________________________________________

Additional information can be viewed through the Shop W/O (N/R) Task Card Panel, Informational Tab, and added through the Notes button.

Applicable panels can be imported to a Task Card using the MPT Loader function. For more information, refer to the Panel MPD Import.
