Defect Report Print

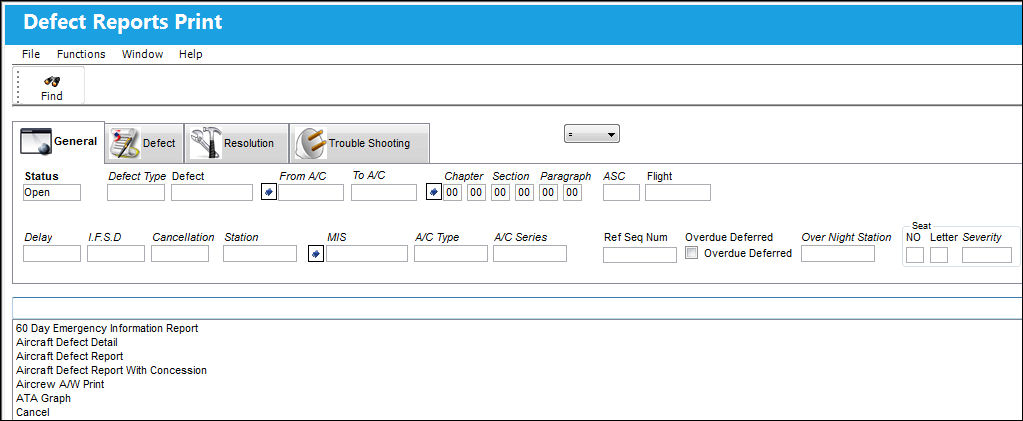

The Defect Report Print window allows the user to view and print reports that contain Defect Report information.

Note: These are customized prints. Print layouts and options may vary per operator.

The following information/options are available in this window:
_____________________________________________________________________________________

Status

The status of the Defect Report.

All - Select the 'All' status to query for all logs.

Open - Select the 'Open' status to query for all logs in 'Open' status.

Closed - Select the 'Closed' status to query for all logs in 'Closed' status.

Defect Type

The type of defect found on the aircraft (for example, Pilot Report, MX Report). For additional information, refer to the Defect Type Transaction Code, via the Technical Records Transaction Code Manual.

Defect

The defect number (or log book number).

From A/C - To A/C

Enter the aircraft or aircraft range.

Chapter / Section / Paragraph

The ATA chapter/section/paragraph, as applicable.

ASC

The Aircraft System Code.

Flight

The flight reference number/information.

Delay

The Delay Code (i.e. Equipment Failure, Scheduled Ground Time).

I.F.S.D

The Engine In-Flight Shut Down code (i.e. Foreign Object Debris, Lightning Strike). These codes can be set up via the Technical Records Transaction Codes. Go to Settings/ Explorer/ System Transaction Code/ Technical Records.

Cancellation

The flight cancellation code if applicable (i.e. Maintenance Repairs, Ground Servicing). These codes can be set up via the Technical Records Transaction Codes. Go to Settings/ Explorer/ System Transaction Code/ Technical Records.

Station

The station where the defect was worked on.

MIS

The Mechanical Interruption Summary related to this Defect.

A/C Type / Series

The Aircraft Type and Series/Fleet assignment.

Ref Seq Num

The reference sequence number of this Defect.

Over Night Station

Over Night Station Code.

Seat Number

The passenger seat number on the aircraft.

Seat Letter

The passenger seat letter on the aircraft.

Seat Severity

The Seat Severity Code used to indicate the level of severity (i.e damage) of the seat. This can be selected from the list of Seat Severity Transaction Codes via the Technical Records System Transaction Codes.

_____________________________________________________________________________________
