Cancel/Defer Reason

logo_15 big tran code

The System Transaction Codes are displayed with both the Code Names and Descriptions. The Code Descriptions directly illustrate their functionality and role in the system, as fields are populated and tasks are performed.

Transaction Code:	Cancel/Defer Reason
General Description:	Cancel/Defer Reason field and Part Number field available
Are Authorization Steps Available?	N
Is System Notification Available?	N
Trax Control Panel Path(s):	Production/ Update/ W/O/ T/C Work
Windows(s):	w_wo_task_card_update
Related Switch(s):	WOTCMANDATORYREASON
Functions:	Cancel/Defer Reason input field is available when the status is set to Cancel/Defer in the W/O Task Card window.The Part Number field will appear if Part Required checkbox is selected in the Transaction Code.
Reports:	NA

Available Functionality

The Cancel/Defer Reason transaction code will make the Cancel/Defer Reason field available in the W/O Task Card window when the Status is set to Cancel/Defer. The Part Number field will also be available when the Part Required checkbox is selected in the Transaction Code.

The following information/options are available in this window:
_____________________________________________________________________________________

Part Required checkbox

Indicates if a part is required for Cancel/Defer reason. When Part Required is selected, the Part Number field will be available.

_____________________________________________________________________________________

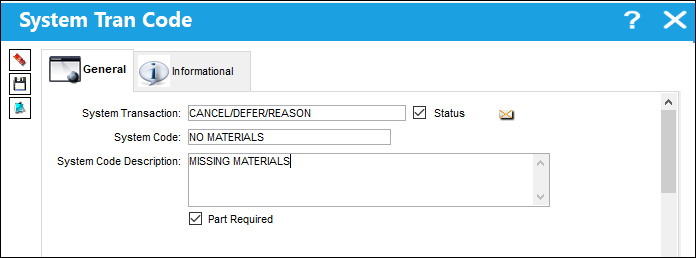

The following Transaction Code has the Part Required checkbox selected.

Part Required Selected

The Part Number field appears due to the Part Required checkbox being selected in the Transaction Code entered in the Cancel Reason field.

WOTCREASONMANDATORY NO Part Number Field

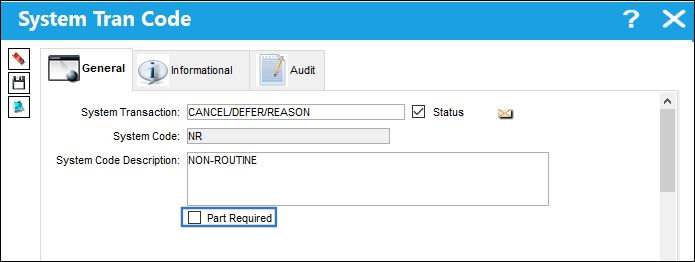

The following Transaction Code does not have the Part Required checkbox selected.

Cancel Defer Part Required Not Selected

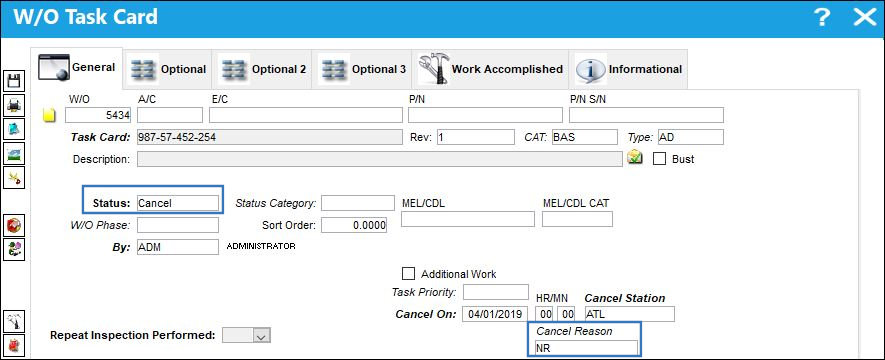

The Part Number field does not appear due to the Part Required checkbox not being selected in the Transaction Code entered in the Cancel Reason field.

Cancel Defer NR No Part Required
