Aircraft Hours and Landings Record Spec2000 Report

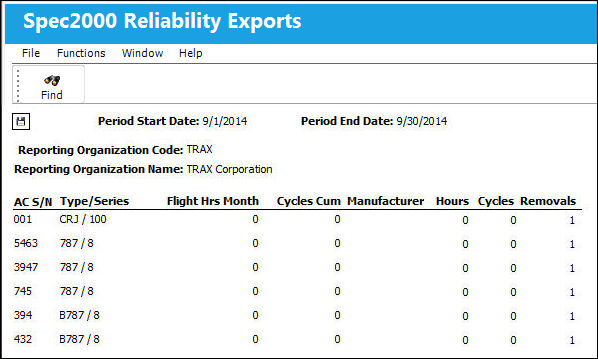

The following is an example of how a record is generated:

The Aircraft Hours and Landings Record Spec2000 reliability XML report is generated from the following fields.

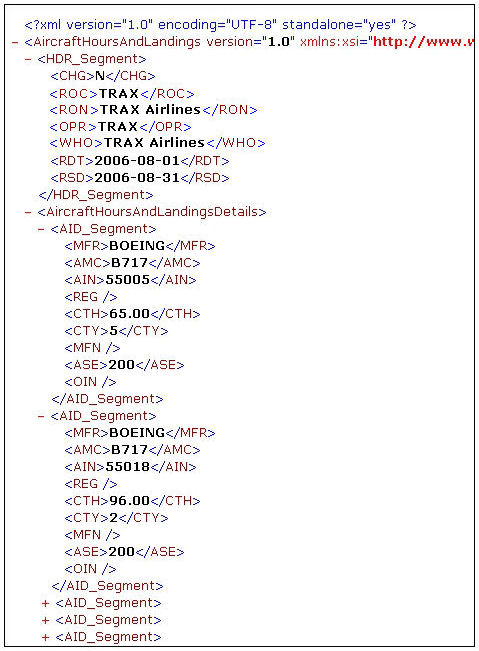

The following would export to XML as shown below:

The following table outlines what the above XML translates to:

For example, some of the fields are being mapped from the data entered as seen below:

Go to Settings/Update/Company Profile

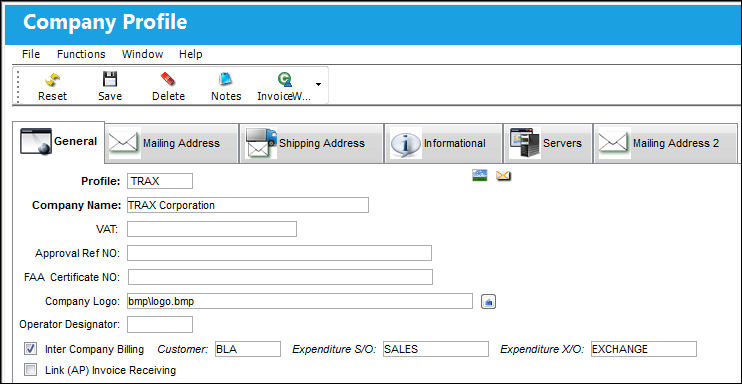

In the Company Profile, General tab, the ROC and the OPR codes come from the Profile Field (TRAX). The RON and the WHO codes come from the Company Name Field (TRAX Corporation) as shown below:

Go to Settings/Update/A/C Master

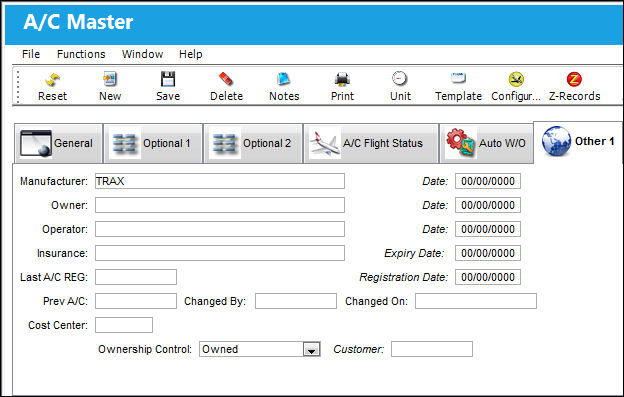

In the A/C Master, Other tab, the MFR code comes from the Manufacturer Field (Boeing) as shown below:

Go to Technical Records/Update/A/C Actual Flights

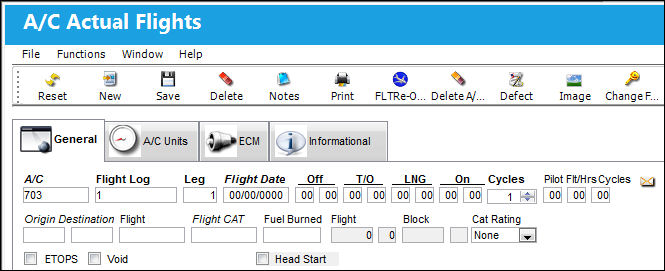

In the A/C Actual Flights, General tab the RDT code comes from the From Flight Date Field and the RSD code comes from the To Flight Date Field as shown below:
