TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > Aircraft > A/C Master Buttons > Unit Button, via Aircraft Master > A/C Unit Type, Consumption Levels Tab

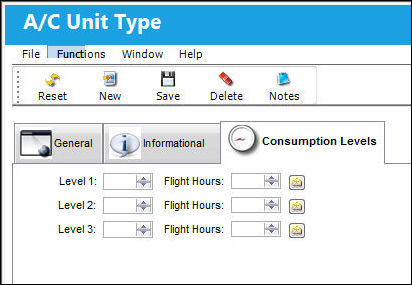

The A/C Unit Type, Consumption Levels tab allows users to set up alerts when a consumption level has surpassed a specified number of flight hours.

The following information/options are available in this window:
_____________________________________________________________________________________

Level

The actual Alert Level. This is usually defined and set up by specific organizations.

Flights Hours

The amount of Flight Hours that need to be surpassed in order for a Consumption Level alert to be created and sent.

System Notification buttons

Select to create and/or edit alerts for each Consumption Level. The system notification for each Level Alert can contain different information. For additional information regarding the System Notifications, refer to Set Up - System Notification via System notification of the Settings Training Manual.

Note: When set to Yes, Technical Records switch OILCONSCAL will trigger an email notification when the oil consumption level average specified in the Consumption Levels Tab has been exceeded. When set to No, the notification is sent when the non-averaged consumption level is exceeded.

_____________________________________________________________________________________

System Notification Creation Process
