TRAX MANUALS > Settings > Settings Module > Settings, Update Menu > P/N Software Configuration Management > P/N Software Configuration Authorization Buttons > Cancel A/C Type & Series Revision Button, via P/N Software Configuration Authorization

The Cancel A/C Type & Series Revision button allows the user to cancel the revision for an entire A/C Type & Series.

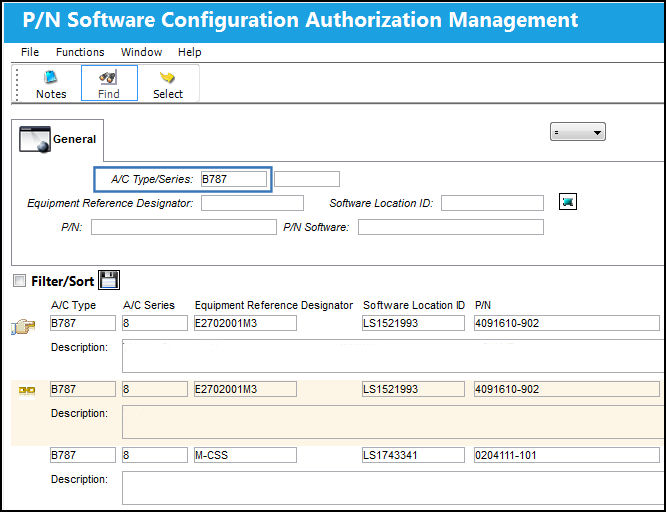

The following configurations are in open revision in the P/N Software Configuration Authorization Management window.

Note that they all share the same A/C Type/Series.

In the following example, the user is going to cancel the revision for the selected configuration.

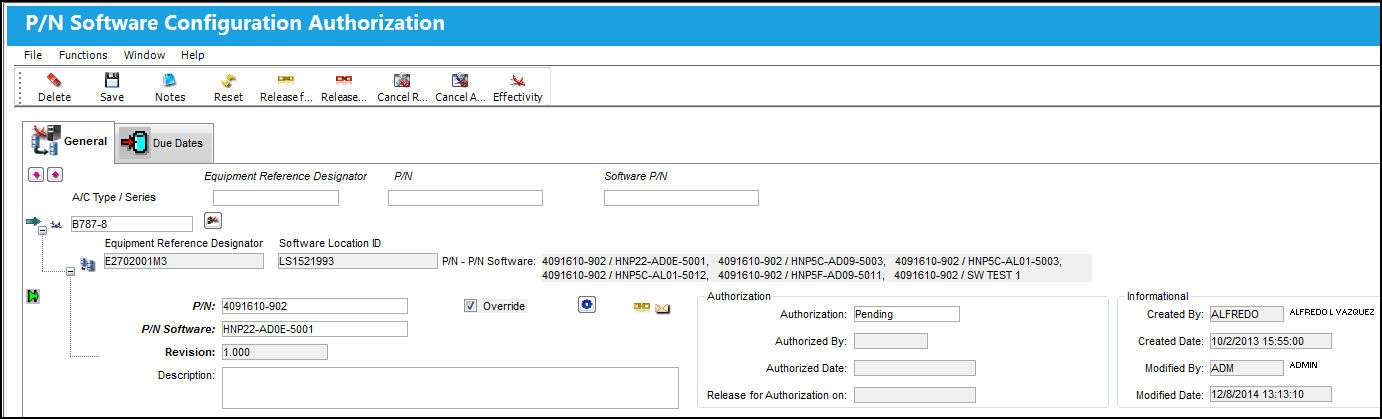

From the P/N Software Configuration Authorization window select the Cancel A/C Type & Series Revision button.

The following cancel Revision pop up prompt appears. Select 'Yes' to cancel the revision for A/C Type/Series B737-700.

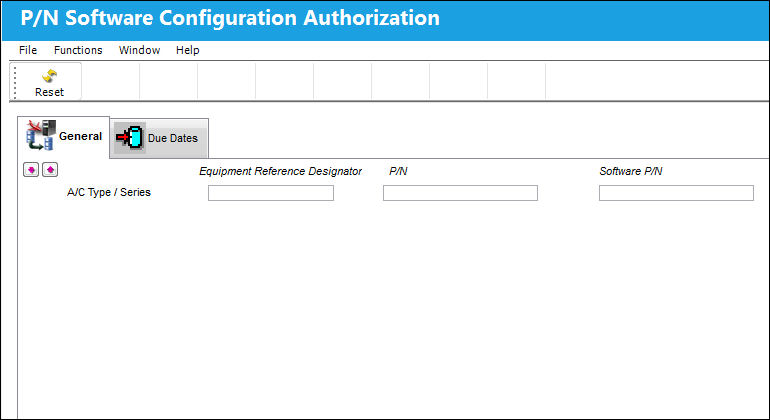

The revision is immediately removed from the P/N Software Configuration Authorization window:

All revisions for A/C Type/Series B737/700 have been canceled.

When querying for any open revisions for A/C Type/Series B737/700, no records are found:
