GSE Task Card, Allowed Locations Tab

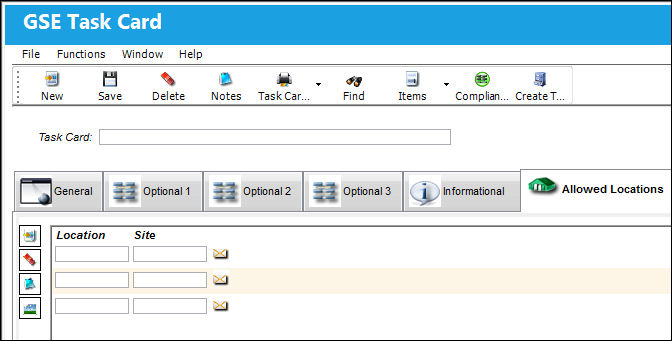

Select the Task Card, Allowed Locations tab allows the user to add a Location/Site to a Task Card. The new Task Card Location can be added to a Work Order that was created with a different Location.

Note: This tab is only available if Switch LOCSITEALLOWED is set the Yes. This tab can still be edited/updated when Switch TCVIAREV is set to Yes.

The following information/options are available in this window:
_____________________________________________________________________________________

Location

The location of the GSE.

Site

The Site where the work is to be carried out (if applicable).

_____________________________________________________________________________________

Select the New button to add multiple locations and sites.

Select the Delete button to delete a location and site record.

Select the Notes button to add any additional information to the printed document.

Select the Image button to add an image to the Task Card.

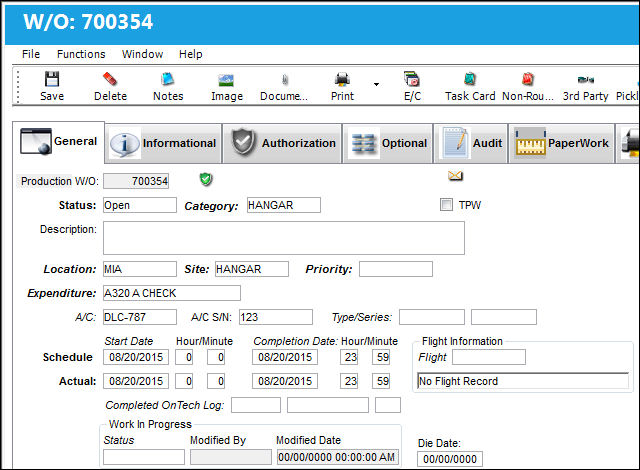

Notice the W/O Location is different from the Location in the Task Card.

In the W/O Task Card window, a warning sign appears if the allowed Location/Site in the Task Card doesn't match the Location/Site of the W/O.

The W/O Task Card can still be saved.

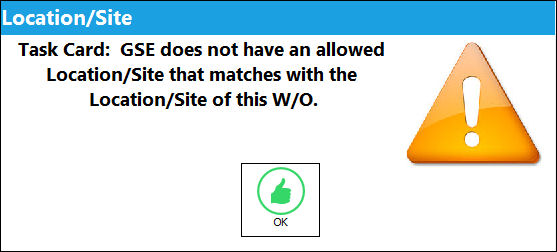

When adding the Task Card to the W/O Engineering Control, a soft warning appears saying that the allowed Task Card location does not match the allowed location for the W/O.
