GSE Task Card, Optional 1 Tab

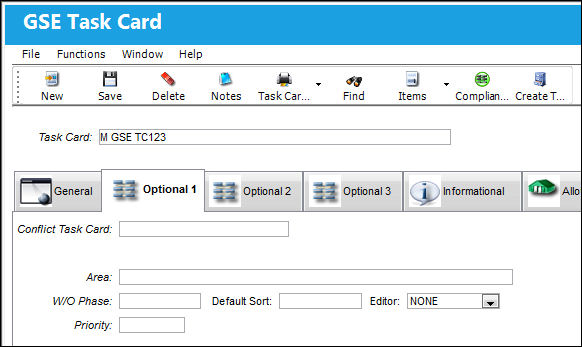

The Task Card (GSE), Optional 1 tab offers the following options:

The following information/options are available in this window:
_____________________________________________________________________________________

Conflict Task Card

If a Task Card is specified here, it indicates that the current Task Card should not be performed should it appear in a Work Order with the specified Task Card.

Area

The Area of the aircraft which this Task Card is related to, as defined in the Trans Code.

W/O Phase

The phase of the Work Order on which the Task Card work is carried out on.

Default Sort

The default sort priority of this Task Card when it is printed on a Work Order.

Editor

Using the Editor drop-list on the Optional 1 Tab of the Task Card, the user can choose the editor that will be used to edit each Task Card Item (Step) on an individual basis. The user may set the value for all new Task Cards with the following configuration switch.

Note: Using the Editor drop-list on the Optional 1 Tab of the Task Card, the user can choose the editor that will be used to edit each Task Card Item (Step) on an individual basis. The user may set the value for all new Task Cards with the following configuration switch:

• TCEDITOR - (Task Card Item Editor) Enter the default application editor to be used in the Config Other field. Enter any of the following five words:

  NONE - This is the system default editor and should be entered in all capital letters.

  WORD - This should be entered in all capital letters. This application is a Rich Text Editor with embedded images.

  TRAXDOC - The TRAXDOC Editor uses uploaded Style Sheets in TRAXDOC as a template for a print. The Task Card print layout can be defined by a TRAXDOC Style Sheet. Task Cards of each TRAXDOC can have a different layout based on the criteria of the TRAXDOC (i.e. fleet type, customer). TRAXDOC allows the user to modify Task Cards using Style Sheets. The TRAXDOC Editor is not a RTF Editor. When the TRAXDOC Editor is selected, the following field and button appears.

  STYLESHEET - The Style Sheet Editor is a RTF (Rich Text Format) Editor which allows the user to enter the Task Card item text using the available RTF options. Please see descriptions for the various options and buttons below.

  Note: This Editor functionality is only supported when using Oracle ® version 8i and up. Also, this functionality is compatible with Microsoft ® Word 2000 and later versions.

Priority

The priority of the Task Card (e.g., Normal, Urgent).

_____________________________________________________________________________________
