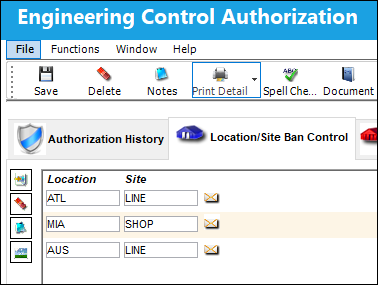

The Engineering Control Authorization, Location/Site Bin Control tab allows the user to view which locations will NOT be eligible to perform Work Orders that contain the currently selected E/C. prior to authorizing it. The information in this window is a copy of the Engineering Control, Location/Site Bin Control tab, and can be edited or updated with the appropriate security privileges.

The following information/options are available in this window:
_____________________________________________________________________________________

Location

The Location for maintenance events, inventory stores, orders, transactions, or training events.

Site

The Site where the work is to be carried out (if applicable).

_____________________________________________________________________________________

If a user tries to place this E/C on a Work Order at any of the locations listed in this tab, the system will display an error message.

Note: Locations and Sites are set up in the Location Master via the Settings module.

If a user tries to place a Task Card with a location/site limitation on this E/C, if the E/C does not contain a matching Location/Site, a list of Locations/Sites will be provided.

Note: The user has the option to enter as many locations limits as desired by clicking on the New button. Additionally, the user also has the option to remove location limits items by utilizing the Delete button.

The Notes and Image buttons are available to include relevant information.
