Shop Work Pack Print

The Shop Work Order Pack Print is used to organize work packages that detail the work required to be performed. The worksite manager can specify the day/shift's work details by a variety of parameters (like by W/O, Task Card, Location, Date, etc). How the printed selections are organized can then also be customized to fit what is most convenient for a given worksite (like sequence orders and work checklists).

The Shop Work Pack Print can be accessed from two locations: either directly via Shop/ Print/ Shop W/O Pack Print or from the Shop W/O Detail window.

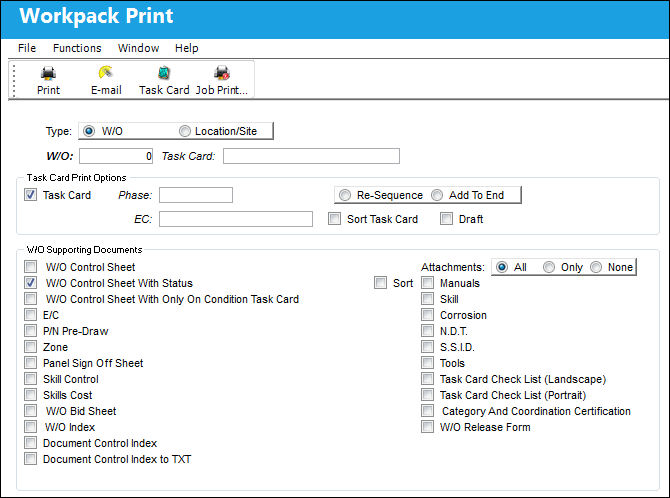

The system displays the Shop Work Pack Print window as follows:

Many of the options in this window are security-controlled via Shop/ Print/ Shop Work Pack Print. For more information refer to the Security Explorer.

The following information/options are available in this window:
_____________________________________________________________________________________

Type

The type of criteria used to specify the work that must be printed. The options are W/O (which allows users to narrow down the work that needs to be performed by Work Orders) and Location/Site (which allows users to narrow down the work that needs to be performed by Location and Site).

W/O radio button

Selecting W/O allows users to narrow down the work that needs to be printed by Work Order. This radio button is selected by default. If the Print button was selected from the Work Order window, the Work Order number will automatically be entered in the W/O field. Otherwise, select the Work Order required to be printed.

When the W/O radio button is selected, the following options appear to help narrow down the print results:

W/O - The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.

Task Card - The Task Card / Job Card that details the scheduled maintenance work. If this Task Card is not specified, all of the Task Cards that are associated to the W/O will be printed.

Location/Site radio button

Choose to print all Task Cards for a Location/Site. When selected, the W/O, Task Card, and All W/O checkbox disappear. When selected, the following options appear to help narrow down the print results.

Location - The Location for maintenance events, inventory stores, orders, transactions, or training events.

Site - The Site where the work is to be carried out (if applicable).

Category - The Work Order Category that will be printed.

W/O Status - Select a W/O Status to print by.

From Date - To Date fields - Enter a date range in these fields to specify the Work Orders that will be printed.

_____________________________________________________________________________________

Task Card Print Options:

_____________________________________________________________________________________

Task Card checkbox

Select this checkbox to choose a Work Order Task Card to define the print. When the Task Card checkbox is selected, the following options appear:

Phase - The Phase selection allows only certain Phases of the Work Order Task Cards to be printed (for example, the Pre-dock Task Cards for the check).

E/C - The Engineering Control that specifies aircraft or component scheduled maintenance intervals.

Re-Sequence radio button - Select this checkbox to add Task Card to sequence and re-sequence the set as necessary.

Add To End radio button - Select this checkbox to add the Task Card to the end of existing sequence.

Sort Task Card checkbox - Select this checkbox to specify your own sort order for the Task Card data output by the printer. Task Cards are normally sorted in the 'sort order' field from the Task Card itself. If you select the Sort Task Card parameter, a sort selection box will only appear when you click the Print button, you can then change the required sort order and click OK.

Draft checkbox - Select this checkbox if you want your printouts to be stamped with the word “DRAFT." This allows for the printouts to be used strictly for informational purposes.

Note: This is customized functionality that requires a modification to the stylesheet. In order to utilize this 'DRAFT' feature, create a Modification web log with Customer Support.

_____________________________________________________________________________________

W/O Supporting Documents:

Select any of the following checkboxes that customize the organization of the print:

_____________________________________________________________________________________

W/O Control Sheet

Includes the W/O Control Sheet which allows managers to verify that all of the work was signed off on.

Note: When the W/O Control Sheet checkbox is selected, the following radio buttons and checkboxes appear:

W/O Control Sheet With Status

Select to include W/O Control sheet with Status.

Note: When the W/O Control Sheet With Status checkbox is selected, the Sort checkbox appears.

W/O Control Sheet With Only On Condition Task Card

Select to include W/O Control Sheet With Only On Condition Task Card.

Note: When the W/O Control Sheet With Status checkbox is selected, the Sort checkbox appears.

E/C

The Engineering Control that specifies aircraft or component scheduled maintenance intervals.

P/N Pre-Draw

Select to include P/N Pre-Draw.

Skill Control

Select to include Skill Control.

Skills Cost

Select to include Skills Cost.

W/O Bid Sheet

Select to include W/O Bid Sheet.

W/O Index

Select to include W/O Index.

Document Control Index

Select this checkbox to include an index of all documents included in the Task Card.

Document Control Index to TXT

Select this checkbox to include an index of all documents included in the Task Card in a .txt file.

Attachment (All/Only/None) radio buttons

Select one of the following radio buttons regarding attachments:

All - Select to include 'All' attachments

Only - Select to include 'Only' or selected attachments

None - Select to include no attachments

Manuals

Select to include Manuals.

Skill

Select to include Skill.

Corrosion

Select to include Corrosion.

N.D.T.

Select to include N.D.T.

S.S.I.D.

Select to include S.S.I.D.

Tools

Select to include Tools.

Task Card Check List (Landscape)

Select to include Task Card Check List (Landscape).

Note: When the Task Card check List (Landscape) checkbox is selected, the Sort checkbox appears.

Task Card Check List (Portrait)

Select to include a checklist of all Task Cards.

Note: When the Task Card check List (Landscape) checkbox is selected, the Sort checkbox appears.

Category And Coordination Certification

Select to include Category And Coordination Certification.

W/O Documents

Select to include W/O Documents.

Note: When the W/O Documents checkbox is selected, all documents associated to the Work Order will be printed. For an example, refer to the W/O Document Control Button, via the A/C Master, Auto W/O Tab, of the Settings Training Manual.

_____________________________________________________________________________________

Progress Bar:

The Current Progress bar and Overall Progress bar have been added to the Workpack Print window.

Note: The Task Card button is available to view the T/C(s) associated to the specified W/O.

Additional information relevant to the functionality of this window can be viewed in the topic regarding the Work Order Pack Print - Report Server.
