From the Shop W/O N/R Task Card Item window users can view, add, delete, and edit the itemized procedures that must be performed in order to complete the work for the Task Card. Create a new Task Card or select one from the drop down menu.
Select the Items

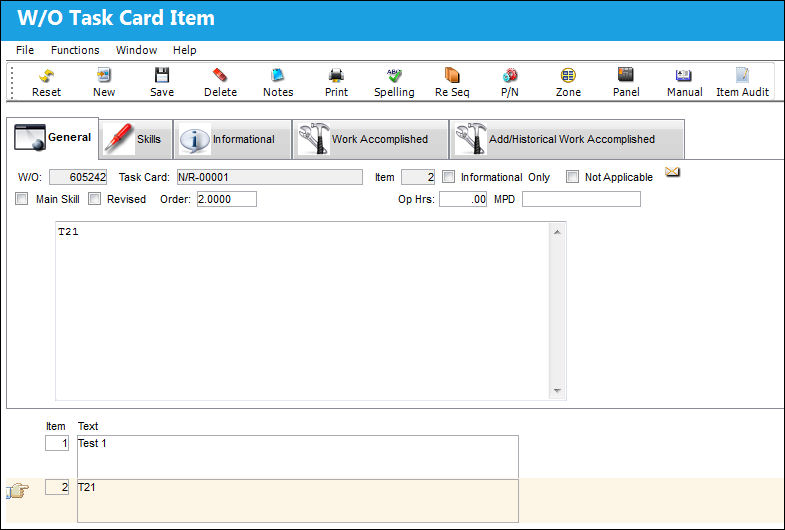

button from the Task Card window. The system will display the W/O Task Card Item, General tab:
The following information/options are available in this window:
_____________________________________________________________________________________
W/O
The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.
Task Card
The Task Card / Job Card that details the scheduled maintenance work.
Item
The item number required to accomplish a Task Card.
Informational Only checkbox
Select if this item is for an informational step only (no labor required). When selected, the Main Skill checkbox will be removed from this window.
Not Applicable checkbox
When selected, the Informational Only checkbox also becomes selected and the skills in the Skills tab no longer become available. Also the Items in the Task Card print become grayed out when the Not Applicable checkbox is selected.
This checkbox only appears in this window if the Editor selected for the Task Card is TraxDoc in the Task Card, Optional 1 tab.
Main Skill checkbox
Select this checkbox if this is the primary skill of the Task Card. The user can then organize the Task Cards by primary skill (using filter and sort functionality via the related modules such as Production Work Orders.)
Revised checkbox
If the item has been revised selecting this checkbox would flag the Task Card item with a revision bar on the left of the item on the Task Card print when printed out. For additional information refer to Switch
RMVRVBAR via the Engineering Switches Manual.
Order
When the sequential order is changed for the Item number, via the Re-Sequence button, the Items are re-ordered on the list at the bottom of the window. While the Item number will reflect the change, the Order number will reflect the original sequential order. For additional information, refer to the Re-sequence button.
Op Hours
Operation Hours.
MPD
The Maintenance Planning Document reference for this Task Card.
This field is no longer available in the GSE Task Card Item window via the GSE Task Card section of the GSE Training Manual.
_____________________________________________________________________________________
