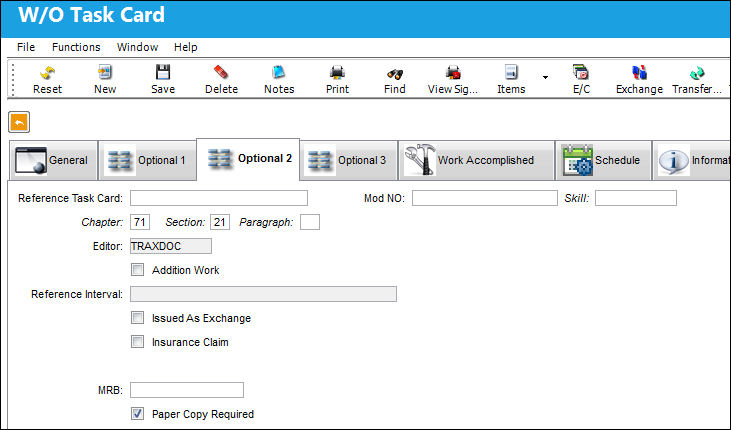

The Shop W/O Task Card, Optional 2 tab allows the user to add additional information relating to the Shop Work Order Task Card. This window is accessed via the Shop Work Order Header, via the Task Card button.

The following information/options are available in this window:
_____________________________________________________________________________________

Reference Task Card

Additional Reference for Customer Task Cards.

MOD No

The Task Card's MOD number.

Skill

The skill associated with the Task Card / Non-Routine Task Card.

Note: If Production Switch WOTCMATCHSKILL is set to Yes, this field may be auto-populated with the Main Skill selected in the Skills Tab of the Task Card Item window, if that Main Skill is a Inspector skill.

Chapter / Section / Paragraph

The ATA chapter/section/paragraph, as applicable.

Editor drop down

The application that will be used to edit the Task Card information. The application will also be used to edit Task Cards when those Task Cards are placed on Work Orders via Production/Update/Work Order. Selectable formats include: Word ®, TASKCARD, or the default Powerbuilder ® RTF (i.e. NONE). This is a customized layout for the Task Card.

Addition Work checkbox

Select this checkbox to indicate additional work. When selected in this window it is automatically selected in the General tab and vice versa.

Note: When a T/C with this checkbox selected is invoiced through a Third Party Shop Work Order, the Customer Invoice Authorization window will contain this checkbox for Labor Charges. For more information refer to the Labor Charge via the Production Training Manual.

Reference Interval

The Task Card / Non-Routine Task Card reference interval is the schedule for this work requirement. This is an informational field and the schedule is derived from the E/C that the Task Card is associated to.

Issued As Exchange checkbox

Select this checkbox to indicate that the Task Card was issued as an exchange Task Card.

Insurance Claim checkbox

Select this checkbox to indicate that this Shop W/O is associated with an Insurance Claim. When selected the Claim Number field appears.

Claim Number - The Insurance claim number, which applies to the part of the order.

Expenditure Code

The Expenditure Code related to this Task Card. For additional information on Expenditure Codes, please refer to the Task Card, Optional 1 Tab of the Engineering manual.

MRB

The Maintenance Review Board related to the Task Card / Non-Routine Task Card.

Paper Copy Required checkbox

Select this checkbox to inform users and auditors that information related to this Task Card / Non-Routine Task Card has been printed and must be processed. This checkbox can be configured via Settings/ Explorer/ Engineering/ Task Card Category Transaction Code. For additional information, refer to the Task Card Category Transaction Code via Engineering Transaction Code Manual.
