A/C Type/Series, Formulas Tab

User must have security access to the Formulas Tab in the A/C Type Series Window.

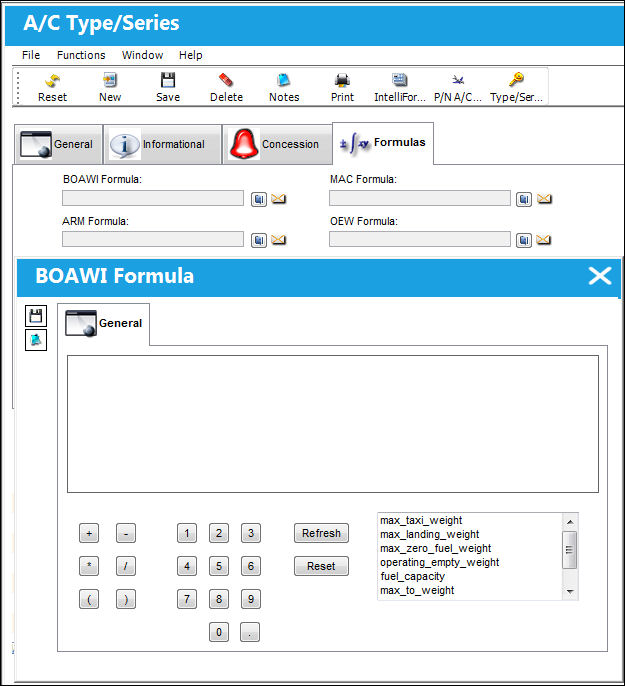

Select the BOAWI button. The BOAWI Formula Window appears as shown below:

In Settings/Update/A/C Type Series/Formulas Tab. Select the MAC button. The MAC Formula Window appears as shown below:

The same set up is required for the Arm and OEM Formulas.

Notes Option:

The Notes option has been added to the A/C Type/Series, Formulas tab:

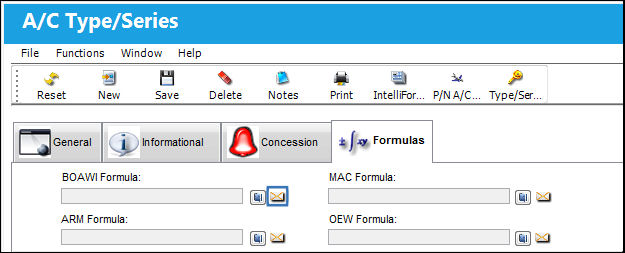

To access to Notes option, select any of the Formula buttons. In this example, the user will select the BOAWI Formula button.

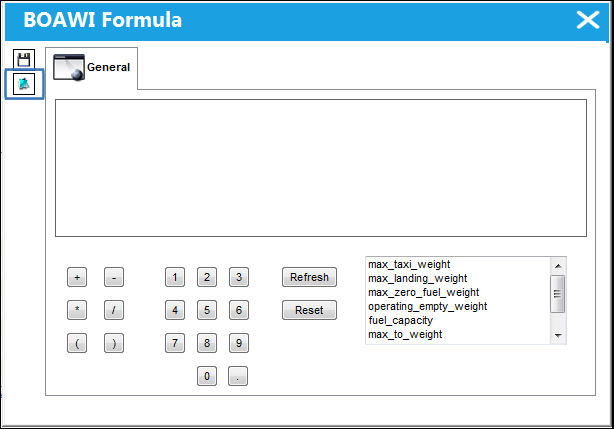

TRAX displays the BOAWI Formula window. Select the Notes button.

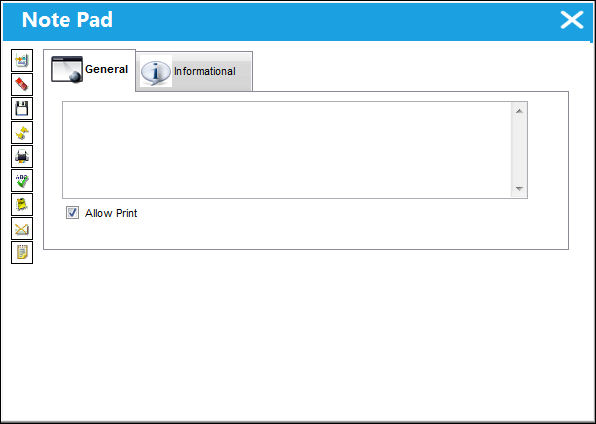

TRAX displays the Note Pad window:

For information regarding the Notes option, refer to the Notes Button, Via The Standard Buttons which can be found in the System Standards Training manual.
