Attaching a Task Card Panel to a Work Order

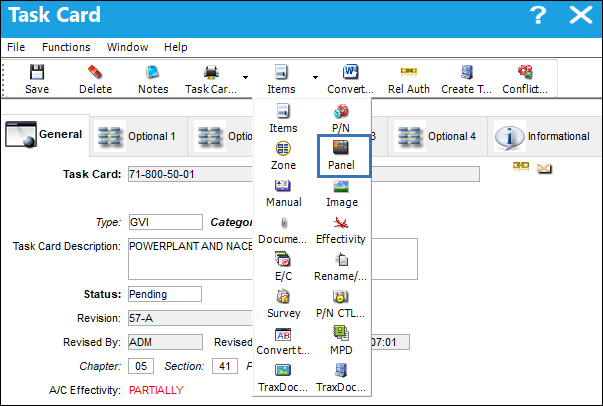

Create a Task Card or find an existing one. Select the Panel button.

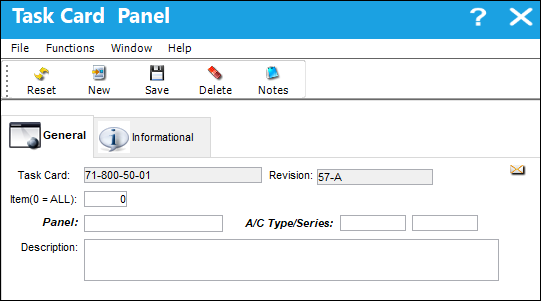

The system displays the Task Card Panel window.

Use the Panel field drop down selection menu to select a panel.

Note: Ensure to select a panel with the same A/C Type/Series effectivity as the Task Card.

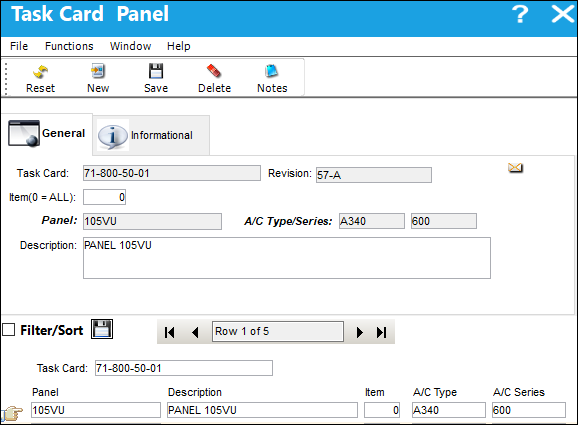

Select the Save button; the panel is saved as shown below:

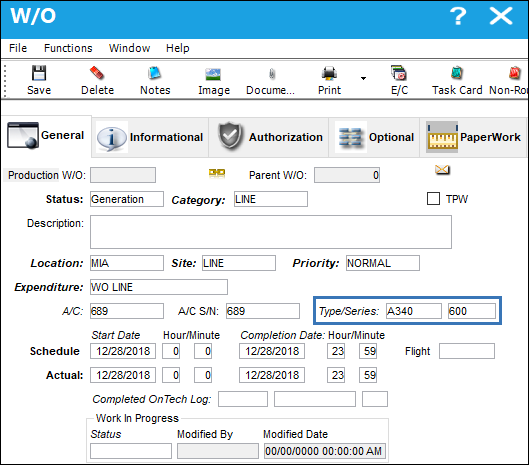

Create a Work Order for an A/C that has the same effectivity as the Task Card and panel.

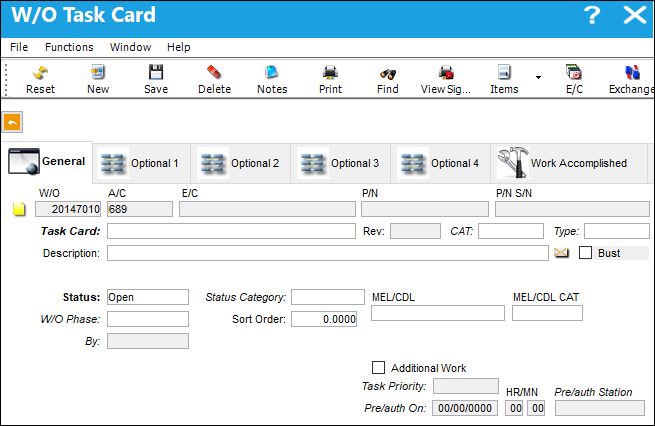

Select the Task Card button and the W/O Task Card window appears; select the New button.

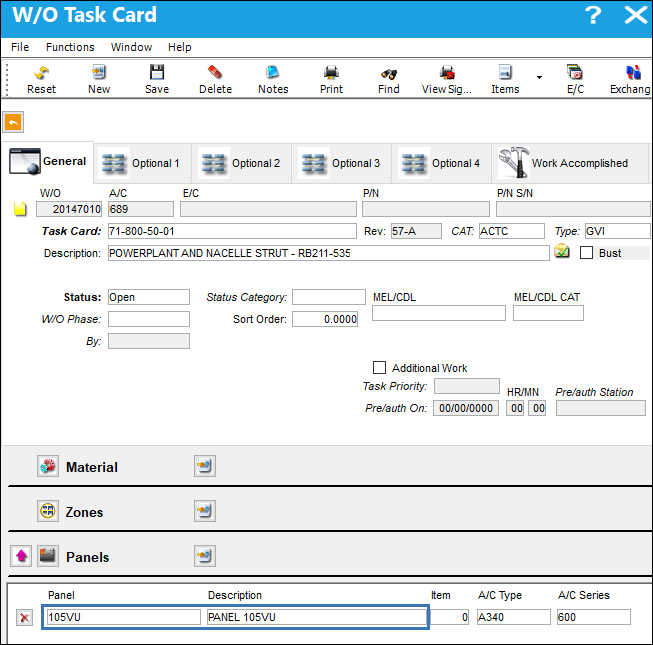

Attach the Task Card that the panel is linked to and save the record. The Task Card and associated panel have been added to the W/O.

Note: Although a Task Card can be attached to any W/O, if the panel associated to the Task Card is not effective to the A/C Type/Series defined in the W/O, the panel will not follow the Task Card.
