TraxDoc Task Card Images Button, via Task Card Authorization

The TraxDoc Task Card Images but_image_small button allows users to view images attached to a TraxDoc which attached to a Task Card.

From the Task Card Authorization window, select the TraxDoc Task Card Images but_image_small button.

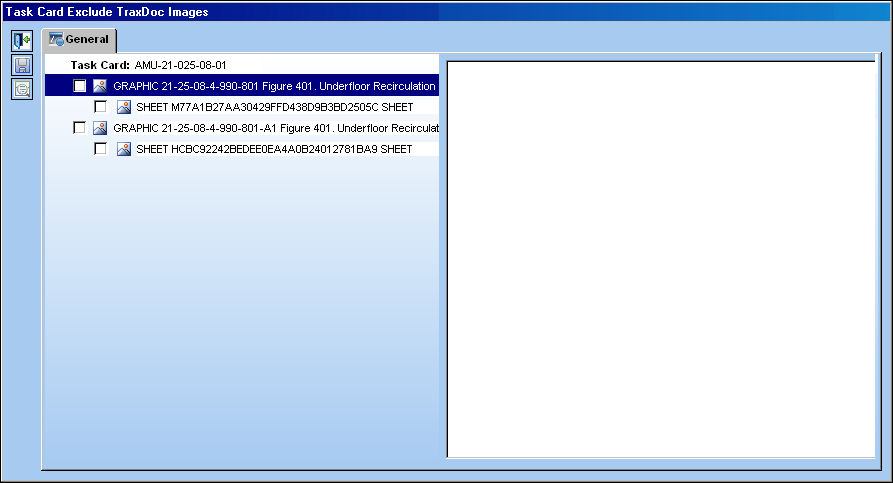

TRAX displays the Task Card Exclude TraxDoc Images window.

Select (highlight in blue) a graphic to be viewed.

Select the Preview but_preview_sm button.

ENG_traxdoc_tc_image1

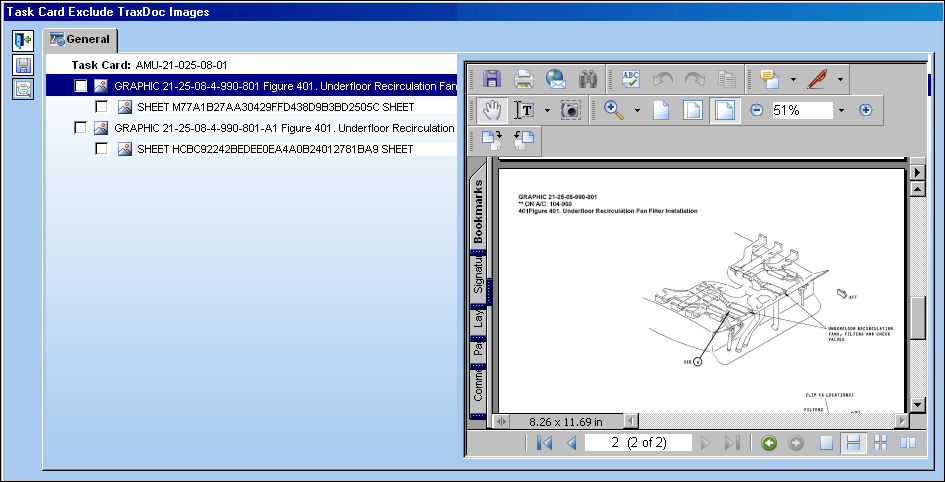

The image appears in PDF on the right side of the Task Card Exclude TraxDoc Images window as shown below:

ENG_traxdoc_tc_image2
