MURATAMST - Enables Control of Multiple Picking Stations from a Single PC

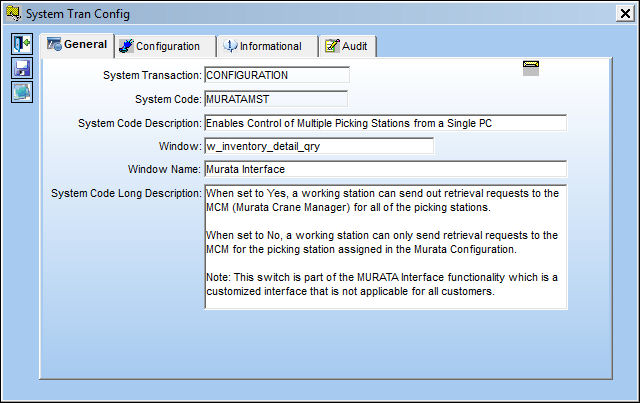

Enables Control of Multiple Picking Stations from a Single PC

Affected Window: w_inventory_detail_qry

This Switch is part of the MURATA Interface functionality which is a customized interface that is not applicable for all customers. For more information consult a TRAX System Administrator.

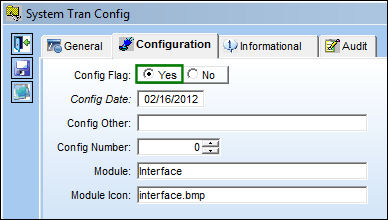

Switch Set to Yes:

When set to Yes, a working station can send out retrieval requests to the MCM (Murata Crane Manager) for all of the picking stations.

Note: For this functionality to work properly, Interface Switch MURATA must be set to Yes.

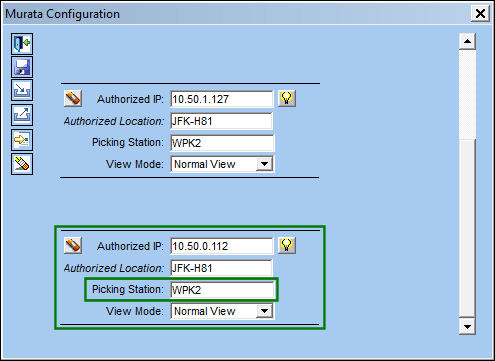

From the Murata Configuration window, notice that the highlighted IP has one Picking Station.

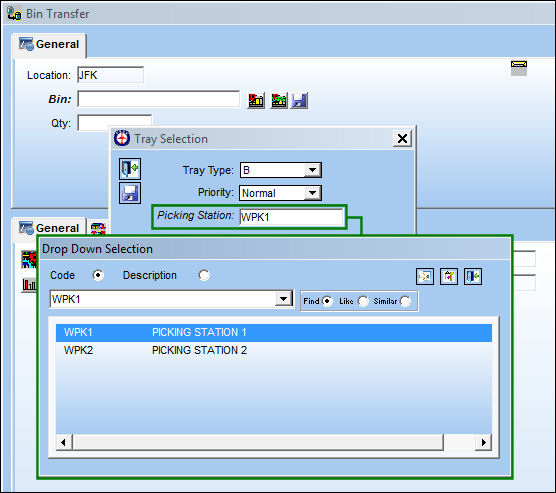

Now when completing a Bin Transfer, notice that from the Tray Selection window users can pick from multiple Picking Stations.

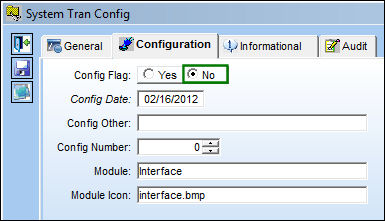

Switch Set to No:

When set to No, a working station can only send retrieval requests to the MCM for the picking station assigned in the Murata Configuration.

From the Murata Configuration window, notice that the highlighted IP has one Picking Station.

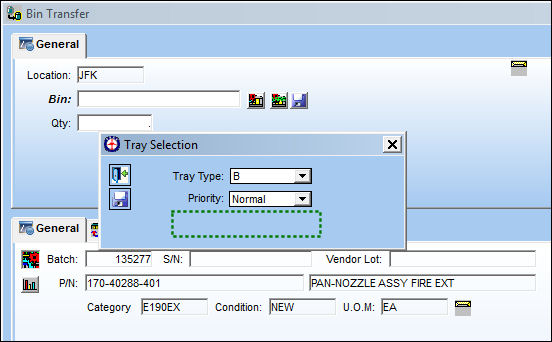

Now when completing a Bin Transfer, notice that from the Tray Selection window users cannot choose a Picking Station. The Picking Station registered to the IP via the Murata Configuration is the only one available for the transfer.
