Seat Mapping, Query Area

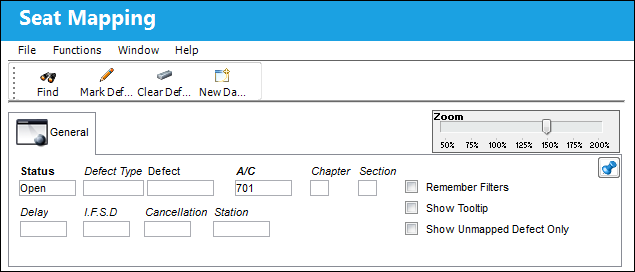

The Query Area allows the user to filter for defects depending on the criteria entered.

From the Query Area, enter an aircraft and select the Find button.

The following information/options are available in this window:
_____________________________________________________________________________________

Status

The status of the defect.

Defect Type

The type of defect found on the aircraft (for example, Pilot Report, MX Report). For additional information, refer to the Defect Type Transaction Code, via the Technical Records Transaction Code Manual.

Defect

The defect number (or log book number).

A/C

The individual aircraft tail number.

Chapter/Section

The ATA Chapter/Section classification of the Defect. The Chapter/Section information must be set up against the Seat Configuration button(s). If no Chapter/Section is set up against the aircraft, the query will return the images for all Chapter/Sections of the aircraft. For additional information, refer to the Seat Configuration button, via A/C Type/Series of the Settings Training Manual.

Delay

The Delay Code (i.e. Equipment Failure, Scheduled Ground Time). For additional information, refer to the Delay Transaction Code, via the Technical Records Transaction Code Manual.

I.F.S.D.

The Engine In-Flight Shut Down code (i.e. Foreign Object Debris, Lightning Strike). These codes can be set up via the Technical Records Transaction Codes. Go to Settings/ Explorer/ System Transaction Code/ Technical Records.

Cancellation

The flight cancellation code if applicable (i.e. Maintenance Repairs, Ground Servicing). These codes can be set up via the Technical Records Transaction Codes. Go to Settings/ Explorer/ System Transaction Code/ Technical Records.

Station

The station where the defect was worked on.

Remember Filters checkbox

Select the Remember Filters checkbox to have the system remember and display the filters specified by the user when they exit and enter the Seat Mapping window.

Show Tooltip checkbox

Select the Show Tooltip checkbox to view additional details regarding the defect when the user hovers over each mark illustrated on the image.

Show Unmapped Defect Only checkbox

Select the Unmapped Defect Only checkbox to display only defects that have not yet been mapped on the image.

Zoom dial

The Zoom dial allows the user to zoom in and out of the image(s) in the Work Area.
