P/N Software Configuration Revision Query

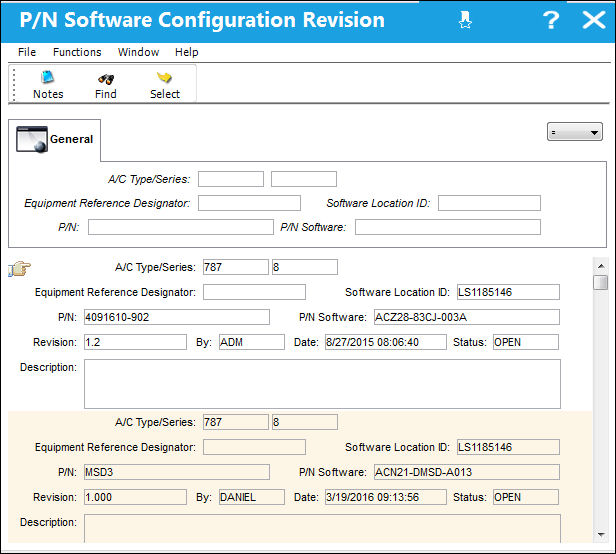

The P/N Software Configuration Revision Query allows users to query for any revisions that have been made to any aircraft's (typically Boeing 787s) Software Configurations. Users enter search criteria at the top of the window, and the results are displayed in the table to the bottom.

Note: Actual records cannot be edited from the Query window. For detailed information on how to create revisions for existing Software Configurations, refer to the P/N Software Configuration window.

Search Section

The following information/options are available in this window:
_____________________________________________________________________________________

General

A/C Type - The entire Aircraft Type.

A/C Series - The entire Aircraft Series.

Equipment Reference Designator - The aircraft position ERD (Equipment Reference Designator) reference. This is the physical position on the aircraft where the hardware part is installed.

Software Location ID - The Software Location Identification (SLID) code. The SLID is where the software for the part is loaded onto the hardware part's ERD location. One ERD may have multiple SLIDs as a hardware part may have multiple software components.

P/N - The hardware part that is installed on the aircraft in its ERD position.

P/N - Software - The software part that is installed on the aircraft for the hardware part.

_____________________________________________________________________________________

Result Section

The following information/options are available in this window:
_____________________________________________________________________________________

A/C Type - The entire Aircraft Type.

A/C Series - The entire Aircraft Series.

Equipment Reference Designator - The aircraft position ERD (Equipment Reference Designator) reference. This is the physical position on the aircraft where the hardware part is installed.

Software Location ID - The Software Location Identification (SLID) code. The SLID is where the software for the part is loaded onto the hardware part's ERD location. One ERD may have multiple SLIDs as a hardware part may have multiple software components.

P/N - The hardware part that is installed on the aircraft in its ERD position.

P/N Software - The software part that is installed on the aircraft for the hardware part.

Revision - The P/N Software Configuration revision.

By - The name of the User.

Date - The Date of the last Software revision that was used.

Status - The Status of the Software.

Description - The P/N Software Configuration description.

_____________________________________________________________________________________
