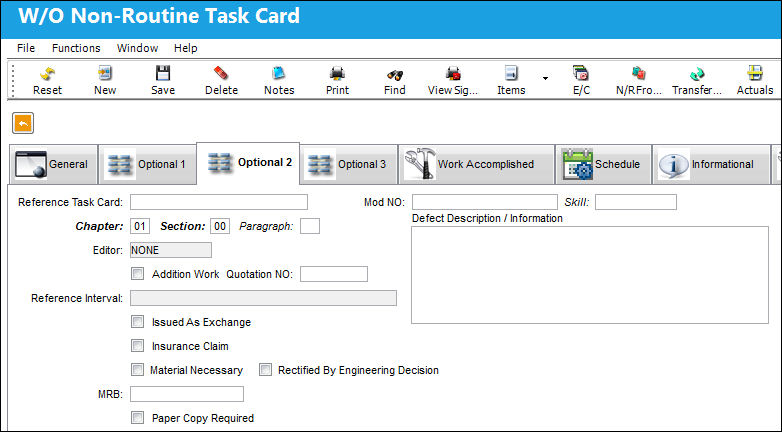

The Shop W/O Non-Routine Task Card, Optional 2 tab allows the user to enter/update optional information related to a Non-Routine Task Card. This window is accessed from the Shop Work Order Detail window via the Non-Routine Task Card button.

The following information/options are available in this window:
_____________________________________________________________________________________

Reference Task Card

Additional Reference for Customer Task Cards.

MOD No

The Task Card's modification number. This is informational only.

Skill

The skill associated with the Task Card / Non-Routine Task Card.

Note: If Production Switch WOTCMATCHSKILL is set to Yes, this field may be auto-populated with the Main Skill selected in the Skills Tab of the Task Card Item window, if that Main Skill is a Inspector skill.

Chapter

The ATA Chapter related to the Non-Routine Task Card. The ATA Chapter auto-populates with the ATA Chapter used to create a Defect Report when a defect is added to an already existing Work Order.

Section

The ATA Chapter Section related to the Non-Routine Task Card. The ATA Section auto-populates with the ATA Section used to create a Defect Report when a defect is added to an already existing Work Order.

Paragraph

The ATA Chapter/Section Paragraph related to the Non-Routine Task Card.

Defect Description/Information

Enter any related defect or description information.

Note: This field is not available if the N/R Task Card is linked to a Defect Report in the General tab.

Editor

The application that will be used to edit the Non-Routine Task Card information. The application will also be used to edit Non-Routine Task Cards when those Non-Routine Task Cards are placed on Work Orders via Production/Update/Work Order. Selectable formats include: Word ®, TASKCARD, or the default Powerbuilder ® RTF (i.e. NONE). This is a customized layout for the Non-Routine Task Card.

ASC

The Aircraft System Code.

Addition Work checkbox

Select this checkbox to indicate additional work. When selected in this window it is automatically selected in the General tab and vice versa.

Note: When a T/C with this checkbox selected is invoiced through a Third Party Work Order, the Customer Invoice Authorization window will contain this checkbox for Labor Charges. For more information refer to the Labor Charge via the Production Training Manual.

Quotation NO

The Quotation Number for the Non-Routine Task Card.

Note: If the Addition Work checkbox is selected, this field cannot be populated and saved.

Reference Interval

The Task Card / Non-Routine Task Card reference interval is the schedule for this work requirement. This is an informational field and the schedule is derived from the E/C that the Task Card is associated to.

Issued As Exchange checkbox

Check to indicate that the item is issued as an exchange.

Insurance Claim checkbox

Select this checkbox if an Insurance Claim applies. Then specify the applicable Insurance Claim Number; the total cost of the Order or Work Order will appear on the Insurance Claim for collection from the Insurance company. For additional information, please refer to the Insurance Claim section of the Orders Manual. If selected, the Claim Number field will be mandatory.

Claim Number - The Insurance Claim number to associate with the item.

Material Necessary checkbox

Check to indicate that material is necessary to complete the Non-Routine Task Card.

Rectified By Engineering Decision checkbox

Check to indicate that the Task Card was rectified by an Engineering decision.

MRB

Maintenance Review Board.

Paper Copy Required checkbox

Select this checkbox to inform users and auditors that information related to this Task Card / Non-Routine Task Card has been printed and must be processed. This checkbox can be configured via Settings/ Explorer/ Engineering/ Task Card Category Transaction Code. For additional information, refer to the Task Card Category Transaction Code via Engineering Transaction Code Manual.
