A/C Installed Parts Query

The A/C Installed Parts Query allows the user to query for parts that have been installed on an aircraft.

As with the majority of the query selections on the system, it is better to select as many parameters as required to minimize the search result.

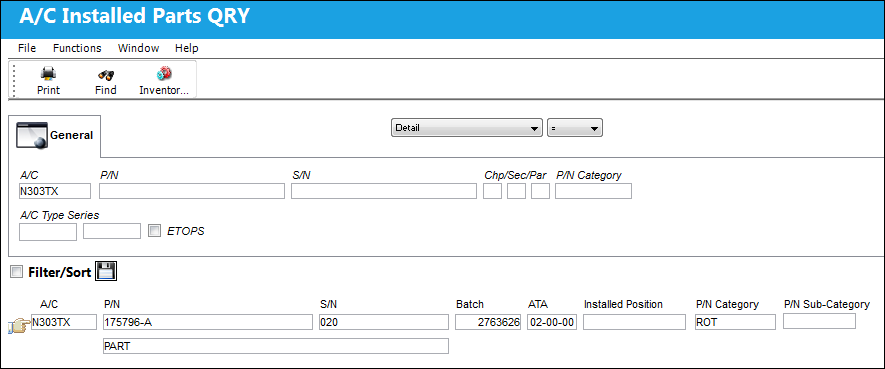

Query

The following information/options are available in this window:
_____________________________________________________________________________________

A/C

The individual aircraft tail number.

P/N

The Part Number reference for the aircraft part.

S/N

The Aircraft's Serial Number which is provided by the manufacturer. This serial number is like a registration number, but it is not dependent on a country code and therefore never changes.

Chp/Sec/Par

The ATA chapter/section/paragraph, as applicable.

P/N Category

The category of the part as defined in Settings/ Explorer/ System Transaction Code Explorer/ Settings/ P/N Category (e.g. Rotable, Consumable, Repairable) and entered for the particular part in the P/N Master.

A/C Type Series

The Aircraft Type and Series/Fleet assignment.

ETOPS checkbox

Select this checkbox if the aircraft is an ETOPS rated aircraft.

_____________________________________________________________________________________

Results

The following information/options are available in this window:
_____________________________________________________________________________________

A/C

The individual aircraft tail number.

P/N

The Part Number reference for the aircraft part.

S/N

The Aircraft's Serial Number which is provided by the manufacturer. This serial number is like a registration number, but it is not dependent on a country code and therefore never changes.

Batch

The inventory number that is currently associated with a part or group of parts. A part's Batch number can change after various types of transactions take place.

ATA

The ATA chapter/section/paragraph, as applicable.

Installed Position

The position on the aircraft of the installed part.

P/N Category

The category of the part as defined in Settings/ Explorer/ System Transaction Code Explorer/ Settings/ P/N Category (e.g. Rotable, Consumable, Repairable) and entered for the particular part in the P/N Master.

P/N Sub-Category

The Sub Category for each part.

_____________________________________________________________________________________
