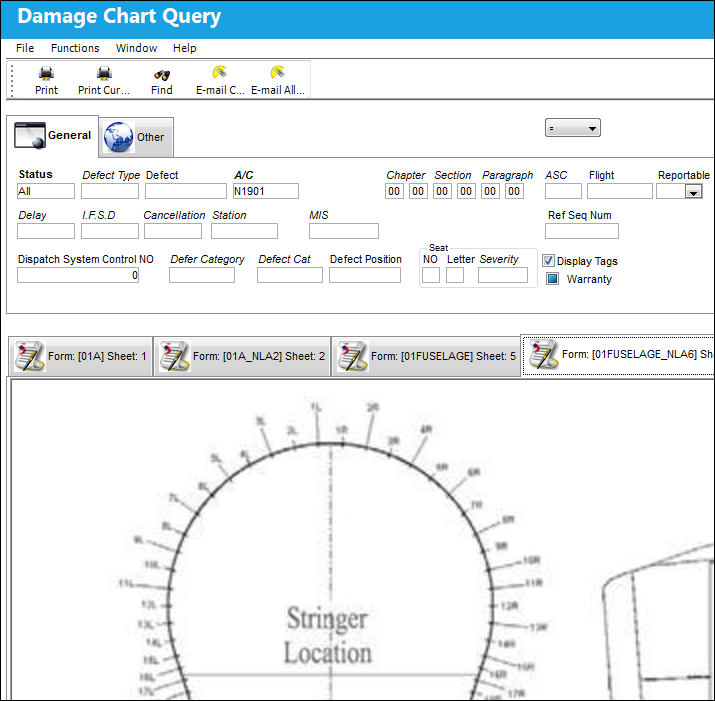

Damage Chart Query

The Damage Chart Query allows the user to query for Damage Charts. A Damage Charts is created when a dent has been marked on an aircraft.

As with the majority of the query selections on the system, it is better to select as many parameters as required to minimize the search result.

The following information/options are available in this window:
_____________________________________________________________________________________

General Tab

Status - The status of the Defect Report.

Defect Type - The type of defect found on the aircraft (for example, Pilot Report, MX Report).

Defect - The defect number (or log book number). The Defect Number is typically the same number of the A/C log page.

A/C - The individual aircraft tail number.

Chapter - The ATA Chapter classification associated to the Defect Report. The chapters which appear for selection are those ATA Chapters which are flagged for Defect in the ATA Master. This Chapter/Section must have Alert levels set up in order for Recurrent Items to be created via the Reliability module.

Section - The specific Section of the ATA Chapter associated to the Defect Report. The Sections which appear for selection are those ATA Chapters which are flagged for Defect in the ATA Master. This Chapter/Section must have Alert levels set up in order for Recurrent Items to be created via the Reliability module.

Paragraph - The ATA Chapter/Paragraph classification of the Defect.

ASC - The Aircraft System Code.

Flight - The inbound flight number associated with the Defect Report.

Reportable drop down - Select Yes, No, or All to filter for reportable defects.

Delay - Delay reference number.

I.F.S.D - The Engine In-Flight Shut Down code (i.e. Foreign Object Debris, Lightning Strike). These codes can be set up via the Technical Records Transaction Codes. Go to Settings/ Explorer/ System Transaction Code/ Technical Records.

Cancellation - The Flight Cancellation code (if applicable).

Station - The Station where the Defect was reported.

MIS - The Mechanical Interruption Summary related to this Defect.

Ref Seq Num - The reference sequence number of this Defect.

Dispatch System Control Number - This number is generated by the system and represents that the defect has been sent to SABRE for those customers with this interface.

Defect Category - The Defect Report's Category Code.

Defer Category - Category of the deferment. This is the reference if the deferral is operational, or performance related. This field may be used to reference if the deferral is related to a General Maintenance Manual or a Standard Practice Manual.

Defect Position - The aircraft position of the item.

Seat Number - The passenger seat number on the aircraft.

Seat Letter - The passenger seat letter on the aircraft.

Seat Severity - The Seat Severity Code used to indicate the level of severity (i.e damage) of the seat. This can be selected from the list of Seat Severity Transaction Codes via the Technical Records System Transaction Codes.

Display Tags checkbox - Select this checkbox to display the tags on the forms.

Warranty Flag - Select this checkbox if the aircraft is associated with a warranty condition

Other Tab

Created By - The user who created the record.

From/To Created Date - Enter the created date of the Damage Chart (From-To range) to query for.

From/To Reported Date - Enter the reported date of the Damage Chart (From-To range) to query for.
