TRAX MANUALS > Receiving > Receiving Module > Receiving, Update Menu > Order Receiving > Order Receiving Detail > Order Receiving Detail Buttons > Removal History Button, via Order Receiving Detail

The Removal Historybutton allows users to create records of past removals of a part from existing aircraft when receiving or loading that part into the system.

This button will appear for the following Order types:

• Exchange Order Out
• Purchase Order
• Rental Order
• Exchange Order Out

This option is security controlled via Security Explorer/ Receiving/ Update/ Order Receiving/ Removal History. For more information refer to the Security Explorer via the System Administration Training Manual.

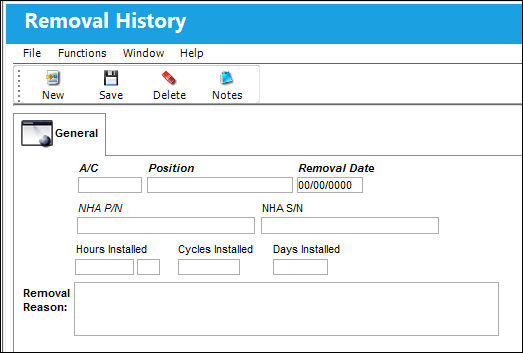

The following information/options are available in this window:
_____________________________________________________________________________________

A/C

The individual aircraft tail number.

Position

The aircraft position reference.

Removal Date

The date of removal.

NHA P/N

The part’s Next Higher Assembly P/N (if applicable).

NHA S/N

Next Higher Assembly (NHA) serial number.

Hours/Cycles/Days Installed

The amount of hours/minutes/cycles/days of the current installation. The hours and cycles are dependent on the flight times accumulated during the current installation.

Removal Reason

The reason for the removal.

_____________________________________________________________________________________

Note: The information entered in the Removal History window can then be viewed in the Inventory Detail Transaction History. For more information, refer to the Removal History button, via Inventory Detail Transaction History.
