W/O Tasks Bust Authorization Explorer

The W/O Tasks Bust Authorization Explorer allows a lead technician or supervisor to review, accept and/or reject W/O Task Card bust requests. Only tasks that have been requested to be busted will appear in the W/O Task Card Bust Authorization window. The authorization process can be as simple as a one step authorization, or as complex as the user would like, such as a five or ten step authorization process. Once the task has been Accepted, it will be removed from this window.

Please note that not every W/O Task Card bust request is required to go through this authorization process. The authorization requirement is determined by the Task Priority defined against the scheduled task. For additional information, refer to the Task Priority Transaction Code via the Production Transaction Code Manual. In addition, the authorization process for a busting a Task Card can also be completed via the W/O Task Card Bust Authorization window via Production/ Update.

This window is security controlled via Production/ Explorer/ W/O Tasks Bust Authorization Explorer. For more information refer to the Security Explorer via the System Administration Training Manual.

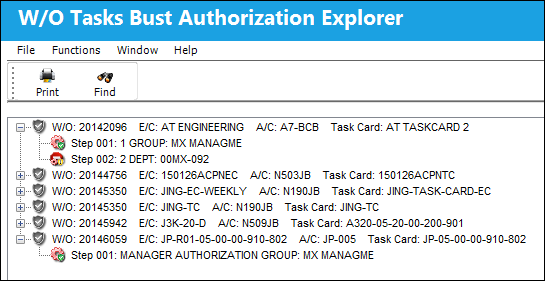

When entering the W/O Tasks Bust Authorization Explorer window, the following screen is displayed:

The following authorization icons indicate the current status of the W/O's authorization.

_____________________________________________________________________________________

Unauthorized icon

This is the Task being added to a Work Order that is pending authorization icon. This information includes the E/C, T/C, or N/R T/C, as applicable.

Current/Pending Step icon

The current open Work Order Authorization Step(s) that is pending acceptance. There may be more than one Authorization Step open due to Parallel Steps. These steps can be viewed in Query Mode after being accepted if required.

Reserved Step icon

The reserved icon appears when a step has been reserved and the Reserved checkbox has been selected.

Accepted Step icon

A Work Order Authorization Step that has been accepted. These steps can be viewed in Query Mode if required.

Upcoming Step icon

An Authorization Step that is waiting for a prior step to be accepted. These steps cannot be accepted until the prior step(s) have been accepted. The Authorization Step is in pending acceptance status. These steps can be viewed in Query Mode.

_____________________________________________________________________________________

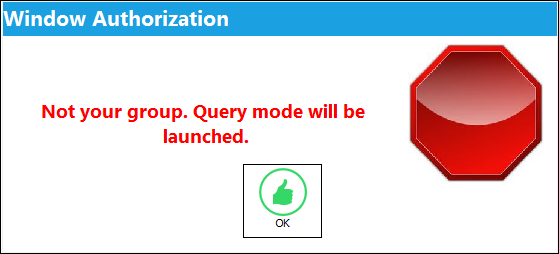

When in the W/O Tasks Bust Authorization Explorer window and attempting to access and authorize a step that is not configured for the Department or Group that the user belongs to, the user cannot Accept or Reject the step. The user may only view the Authorization Step in Query Mode due to the Priority configuration stipulating that another department is set up to authorize this specific step. The system will display this query only warning message and allow the user to enter the Authorization Step only to view the information:

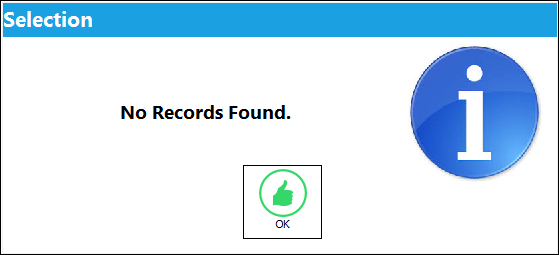

If no Task Cards have been requested to be busted, or there are no records pending authorization that fit the users' criteria based upon the setup of the Task Priority System Transaction Code, the following message will appear:

When initially entering the W/O Tasks Bust Authorization Explorer window to accept the first Authorization Step, the following screen is displayed:

By selecting into the Authorization Step, TRAX displays the following pop-up window:

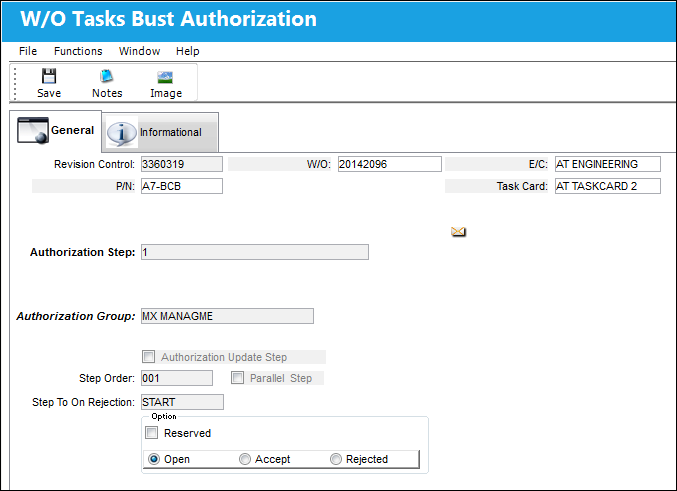

Select the Authorization option and TRAX displays the W/O Tasks Authorization window.

The following information/options are available in this window:
_____________________________________________________________________________________

Revision Control

Automatically generated control number for each revision step.

W/O

The Work Order used to categorize, manage, and schedule work requirements for aircraft maintenance.

E/C

The Engineering Control that specifies aircraft or component scheduled maintenance intervals.

P/N

The Part Number reference for the aircraft part.

Task Card

The Non-Routine Task Card that details non-scheduled maintenance work / findings.

Authorization Step

A description of the Authorization Step; each Authorization Step can have its own unique description to describe the steps general purpose.

Department

The department which has authority for approval of this step. The Authorization Step can only be performed by an individual in the department specified here. See Settings/ Update/ Employee Master to verify that the employee is assigned to the appropriate department. Authorizing employees must have security access to the appropriate Authorization Explorer option. When this field is left blank, the Authorization Group field is available.

Division

The division which has authority for approval of this step. The Authorization Step can only be performed by an individual in the division specified here.

Section

The section which has authority for approval of this step. The Authorization Step can only be performed by an individual in the section specified here.

Authorization Group

The Authorization Group which has authority for approval of the step. The Authorization Step can only be performed by an individual that is included in the Authorization Group specified here.

Authorize Update Step checkbox

When selected, the checkbox indicates that the current Authorization Step will be the last step in the authorization process. During the creation of the Authorization Steps, this checkbox should only be selected for the final step before the record is to be released from authorization.

Step Order

This number indicates the order of Steps if one or multiple Steps are created. This number is automatically created and can be overridden and changed to any number. It is recommended that the user enter Steps in a standard incremental pattern (i.e. Step 5, Step 10, Step 15, etc.) to allow for the insertion of Steps into the sequence at a later time if required.

Parallel Step

The Parallel Step functionality allows for the grouping of a set of steps to be authorized in conjunction with one another during the Authorization Process. This is useful when several departments are required to authorize steps at the same time before the Authorization Process can continue on to the next step. When this checkbox is selected, the Parallel Group field becomes available.

Step To On rejection

This indicates how the Authorization Process will react when a Step is rejected. When an authorization Step has been rejected, the Step To On Rejection process begins based on the configuration of the Work Order Priority System Transaction Code.

Start - Will return the Authorization Process to the first step.

Return To - Will return the Authorization Process to a specific Authorization Step as specified by the 'Return To' Step number in the Return To Step Order field.

Re-Release - Will return the Authorization Process to the queue where it will await Release For Authorization.

Reserved checkbox

This allows a user to reserve the step. This will lock that user into that specific authorization step and does not allow another user to accept the step. The name of the user who Reserved the Authorization Step will appear in the Reserved By field.

Open radio button

All authorization steps are initially in Open status, until either Accepted or Rejected. A step can also be Open and Reserved at the same time.

Accept radio button

This option is selected when the user accepts the authorization step.

Rejected radio button

This option is selected when the user is rejecting the Authorization Step when there are reasons that do not permit the step from remaining open or being accepted. The Rejection Reason field is mandatory upon the Authorization Step becoming Rejected.

_____________________________________________________________________________________

To accept this W/O Tasks Bust Authorization Step, select the Accept radio button and select the Save button.

To reject this W/O Tasks Bust Authorization Step, select the Rejected radio button and select the Save button. When rejecting an Authorization Step, the Rejection Reason field shows in the window. It is mandatory to populate the reason when rejecting an Authorization Step. The user has the option to Reserve the Authorization Step, as well.

If selecting the Accept option on the radio bar, select 'Yes' in the Save Record pop-up window. TRAX will automatically refresh the W/O Tasks Bust Authorization Explorer view and display the Explorer screen.

For more information, refer to the following:

Authorization Process

Authorization Steps
