Auto Exchange Order One-Way Forward [P/N Pool]

The Auto Exchange Order option (for one-way forward P/Ns) allows customers to set up an auto generated Exchange Order (EX) when parts from the P/N Pool agreement are returned to stock; the Pool Type must be Exchange, the Auto Exchange Order checkbox selected, and the Exclusive checkbox deselected. If a part being included in a P/N Pool has a one-way forward P/N, the one-way forward P/N is the only P/N that should be listed in the P/N Pool.

Note: In order for the auto exchange order for a One-Way Forward (OWF) P/N to function correctly, the following switches must be set to Yes: AUTOROS, AUTOEXONLYUNS, NOAUTOEXFORADV.

Note: When the return to stock transaction occurs and an EX does not exists in the system, a new EX will be created for the P/N. When the return to stock transaction occurs and there is an open EX for the P/N (or for its one-way forward P/N), the system will attach the returned to stock P/N S/N to the EX for the P/N that has been unfulfilled the longest.

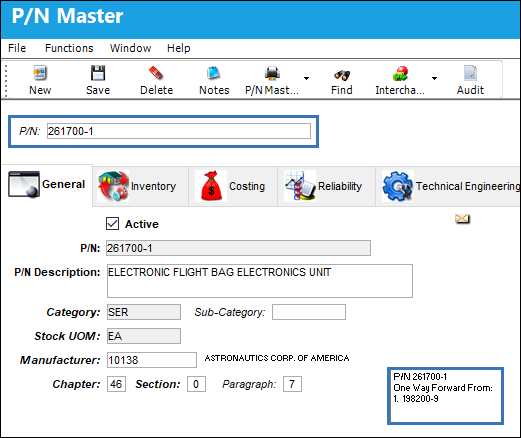

From the P/N Master, notice the one-way forward relationship between the two P/Ns.

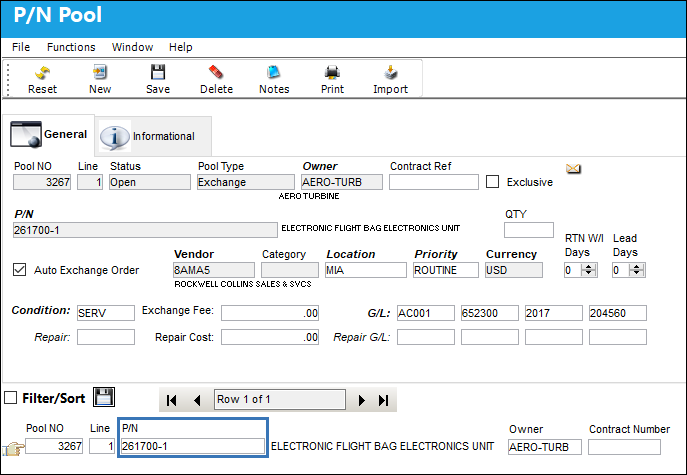

In the P/N Pool window the Pool Type is Exchange, the Auto Exchange Order checkbox is selected, the Exclusive checkbox is deselected, and the one-way forward P/N is attached.

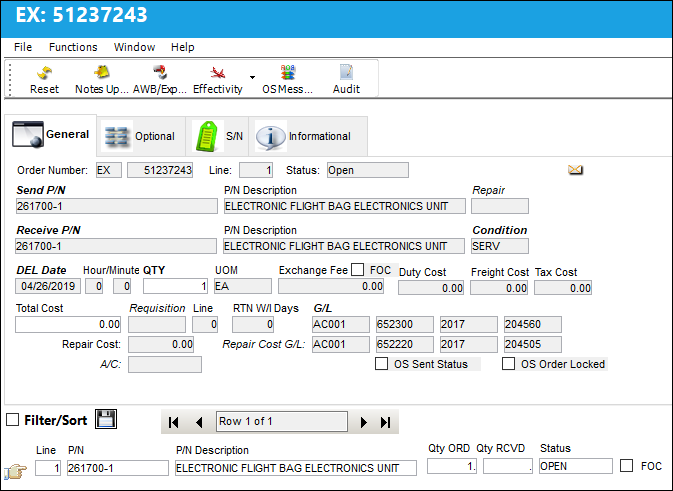

An open EX exists for the one-way forward P/N.

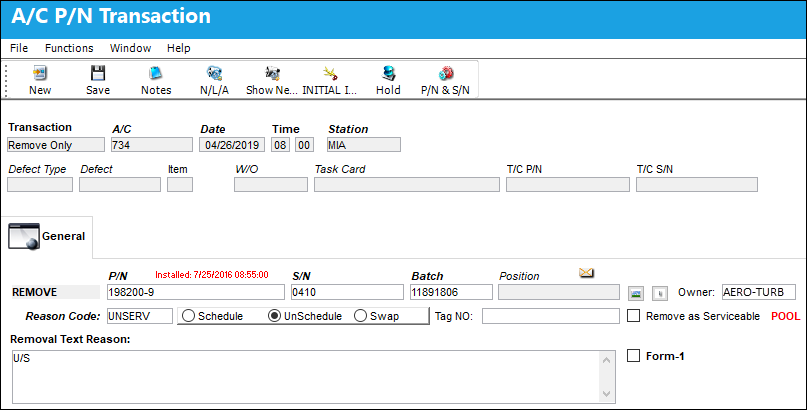

The main P/N is removed from an aircraft.

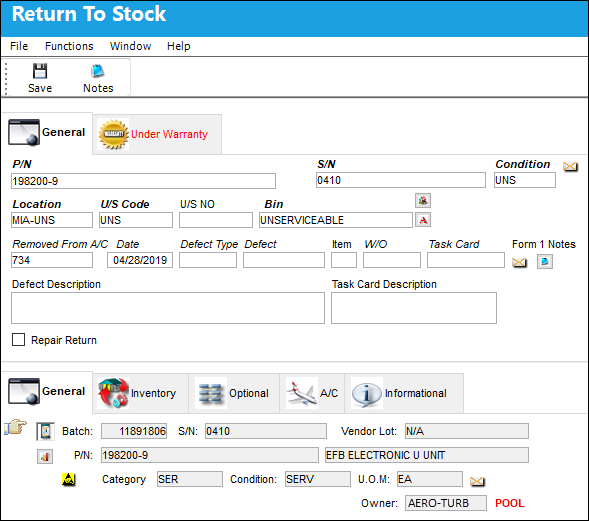

The main P/N is returned to stock.

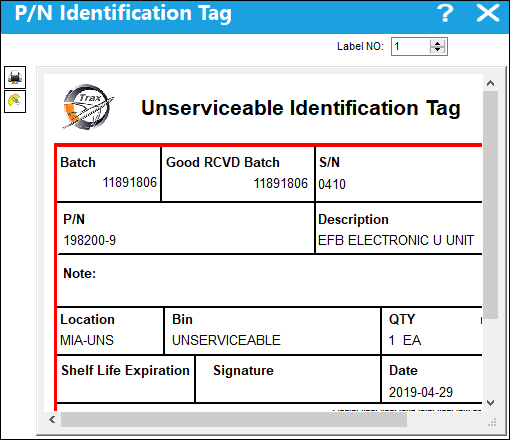

The record is saved and the the P/N Identification Tag appears.

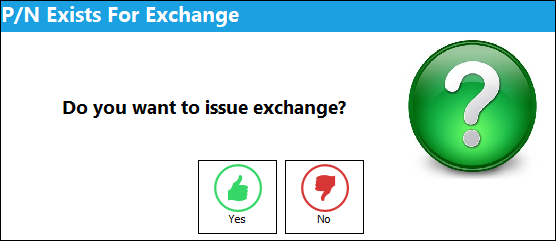

The following prompt appears, informing the user that a P/N exists for an exchange, select Yes.

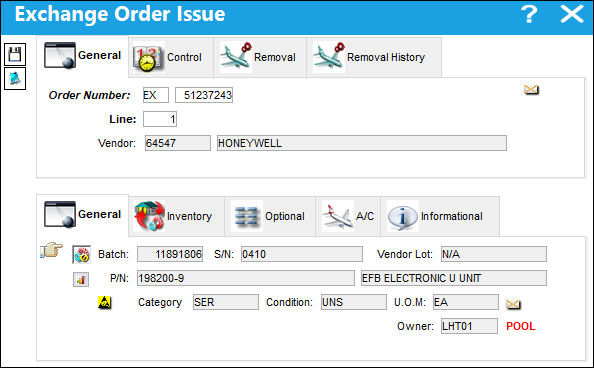

The Exchange Order Issue window appears, notice the EX number is the same as the open EX with the one-way forward P/N; select the Save button.

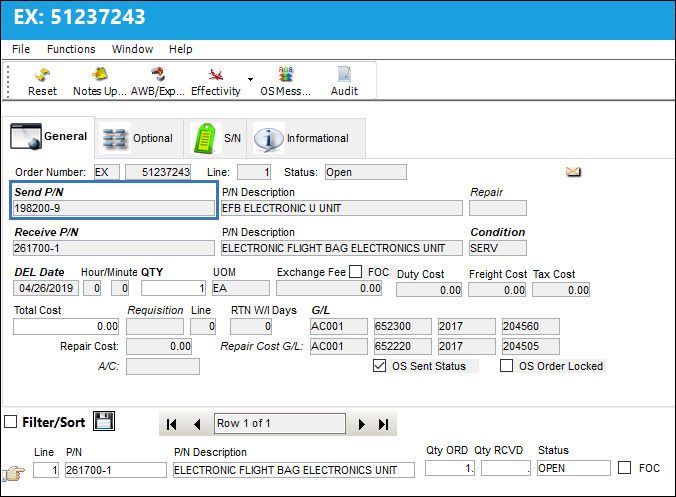

The EX has been updated, reflecting the main P/N in the Send P/N field.

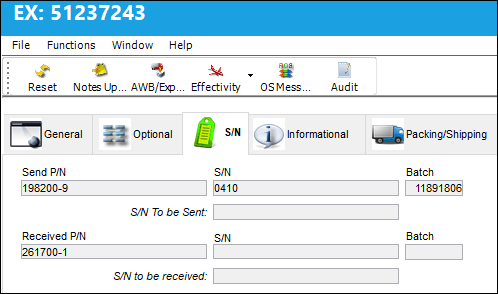

The S/N tab has been updated accordingly and shows the changed Send P/N and the S/N issued for the exchange.
