AUTOROS - ROS Auto Repair Orders Sent to Vendor

logo_15 big switch

ROS Auto Repair Orders Sent to Vendor

Affected Window: w_ro_order_detail_eu

Note: This switch is part of the ROS interface functionality. The switch will only function as designed if the interface is set up accordingly. Additionally, switch AUTOEXONLYUNS and switch NOAUTOEXFORADV must be set to Yes for switch AUTOROS to function correctly.

Note: When the switch AUTOROS is set to Yes, the system automates the Send to Vendor function for all Repair Oders. This means the functionality applies to every Repair Order, not just those that are auto-generated. All Repair Orders for Vendors that support AeroRepair are automatically sent to AeroXchange, eliminating the need for users to manually click the Send to Vendor button. This process is triggered when the Repair Order print is generated. The functionality is available for Trax version 15.13 and in all subsequent releases.

Set Up

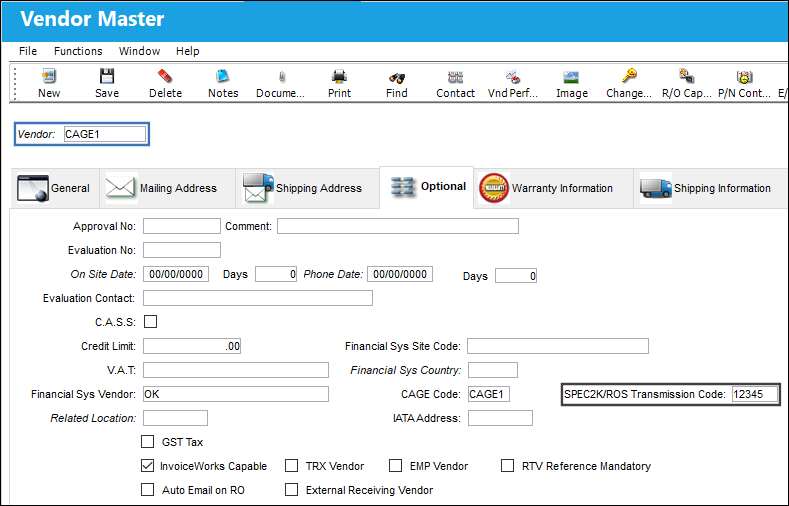

The below vendor is set up with an ROS interface.

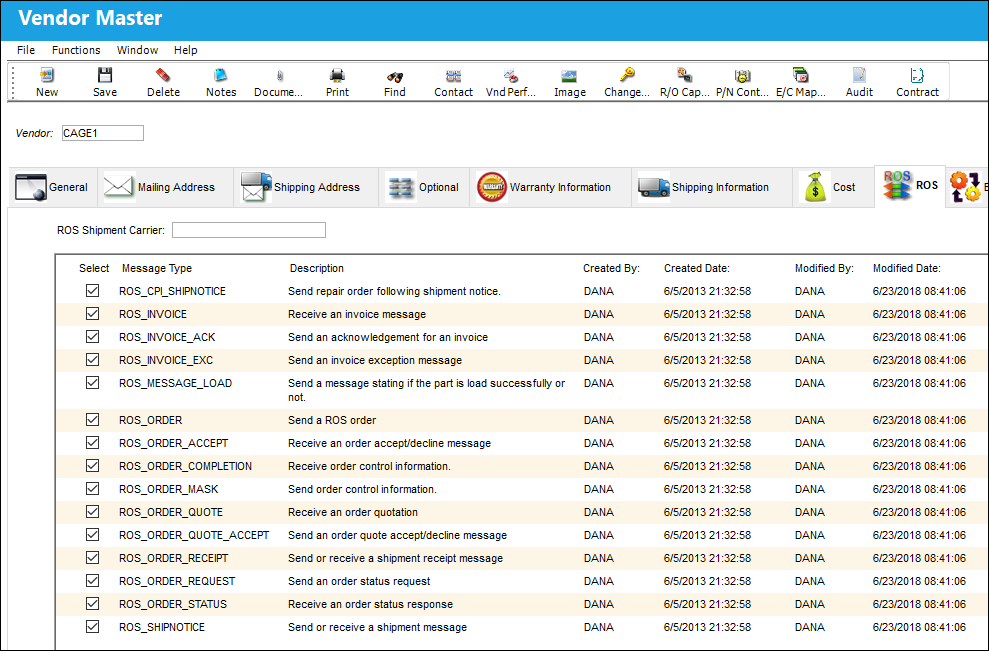

In the Vendor Master, ROS tab, the following messages have been set up and are all activated.

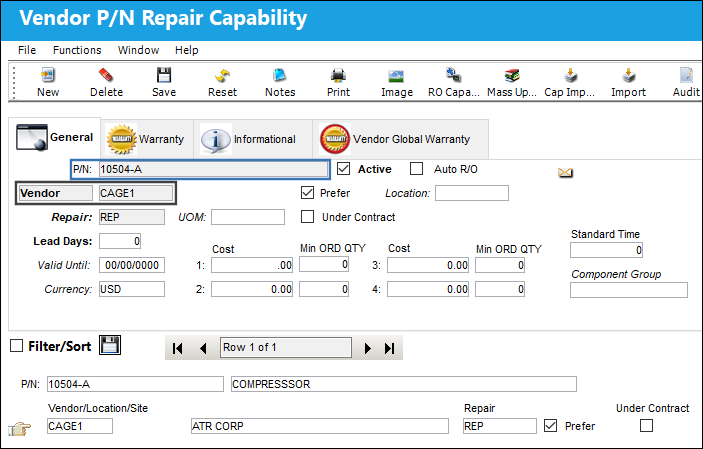

The below P/N is set up with the specified repair capability vendor.

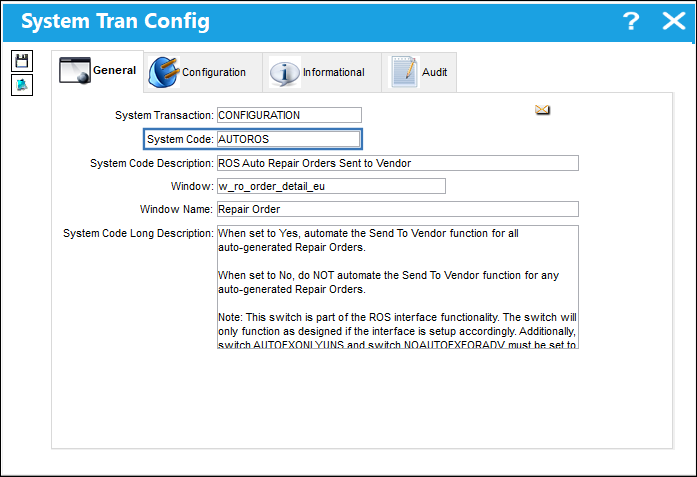

Switch Set to Yes:

When set to Yes, automate the Send To Vendor function for all auto-generated Repair Orders.

12_Orders_Yes

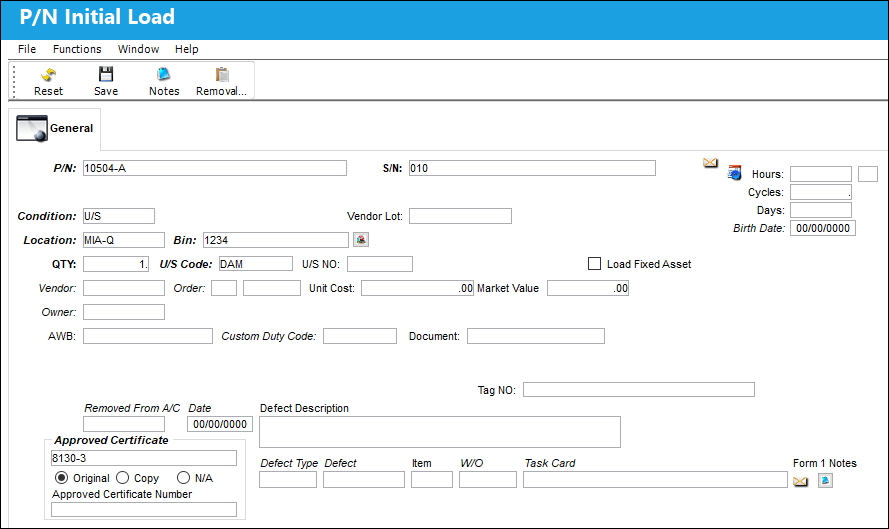

A P/N Initial Load transaction is in progress for the following P/N that has a preferred vendor of CAGE1.

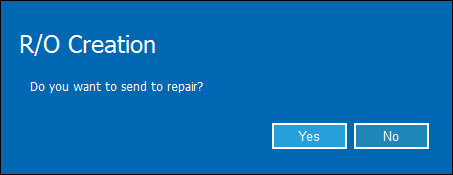

Upon saving the P/N Initial Load transaction, the following R/O Creation pop-up appears asking the user if they would like to create

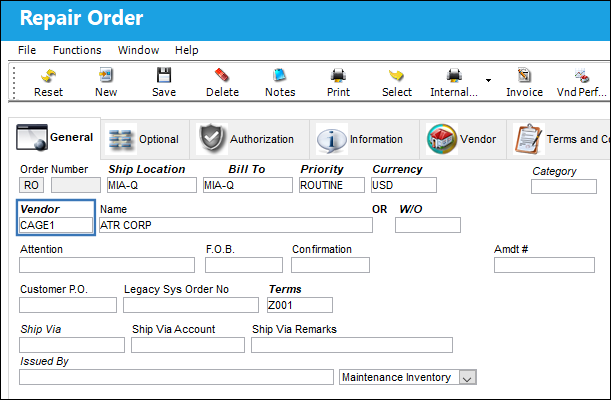

The following RO is auto created with the specified vendor. Populate all mandatory and desired information and save the RO header.

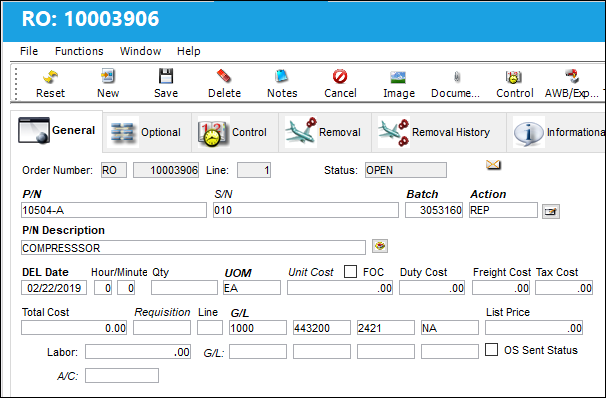

From the RO detail, some information such as the P/N, and S/N is auto populated. Populate all mandatory and desired information and save the Repair Order. Once saved, release the RO for authorization.

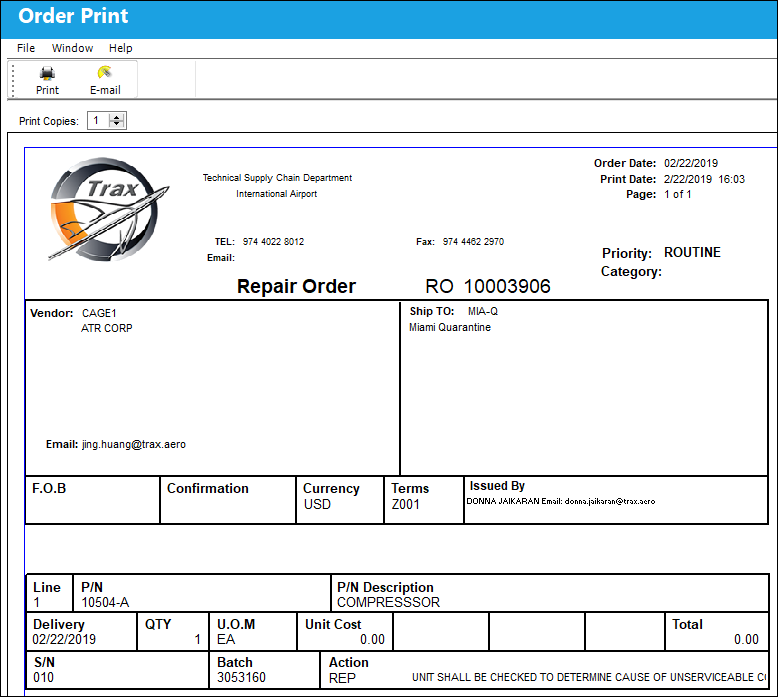

The RO print appears.

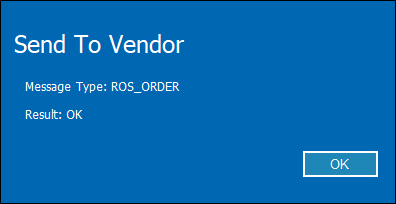

The Send To Vendor ROS_ORDER message is automatically generated.

Switch Set to No:

When set to No, do NOT automate the Send To Vendor function for any auto-generated Repair Orders.

12_Orders_No

When the RO is generated, the ROS_ORDER message does not auto generate after the RO print appears.
