AUTOEXONLYUNS - Only Unserviceable (U/S - Quarantine) Parts will be Recognized by the Auto Exchange process

TRAX MANUALS > Inventory > Inventory Switches > AUTOEXONLYUNS - Only Unserviceable (U/S - Quarantine) Parts will be Recognized by the Auto Exchange process

AUTOEXONLYUNS - Only Unserviceable (U/S - Quarantine) Parts will be Recognized by the Auto Exchange process

but_12 big

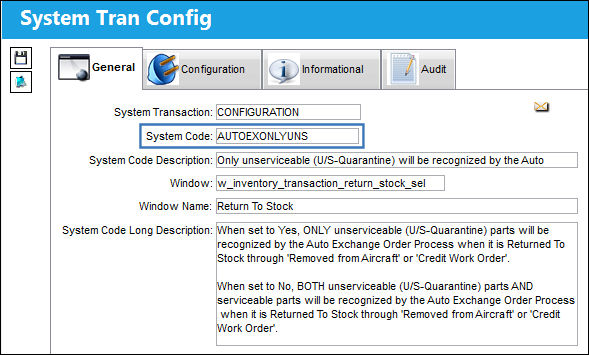

Only unserviceable (U/S - Quarantine) will be recognized by the Auto Exchange process

Affected window: w_inventory_transaction_return_stock_sel

AUTOREORDFORMNOTAC(1)

Note: If Switch NOAUTOEXFORADV is set to YES, then an exchange order will only be created when no advanced exchange order is available.

Switch Set to Yes:

When set to Yes, ONLY unserviceable (U/S-Quarantine) parts will be recognized by the Auto Exchange Order Process when it is Returned to Stock through the 'Removed from Aircraft' or 'Credit Work Order' options.

12_Inventory_Yes

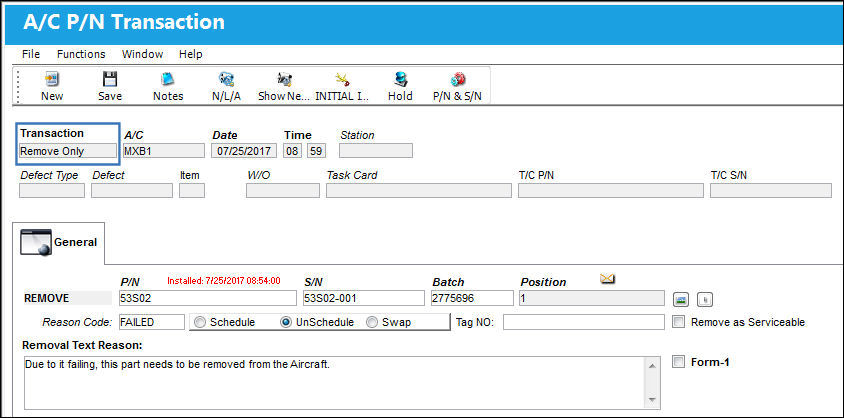

In this example, a part is going to be removed from an aircraft and then Returned to Stock.

AUTOREORDFORMNOTAC(3)

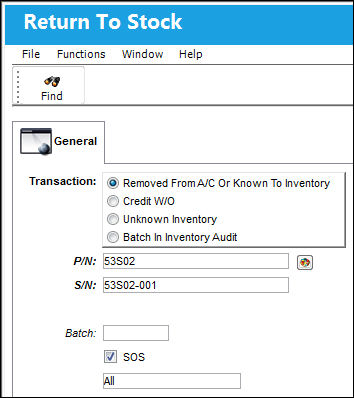

In the Return to Stock window, the 'Removed From A/C Or Known To Inventory' option is selected. Note that the 'Credit W/O' option is always affected by the Switch setting.

AUTOREORDFORMNOTAC(4)

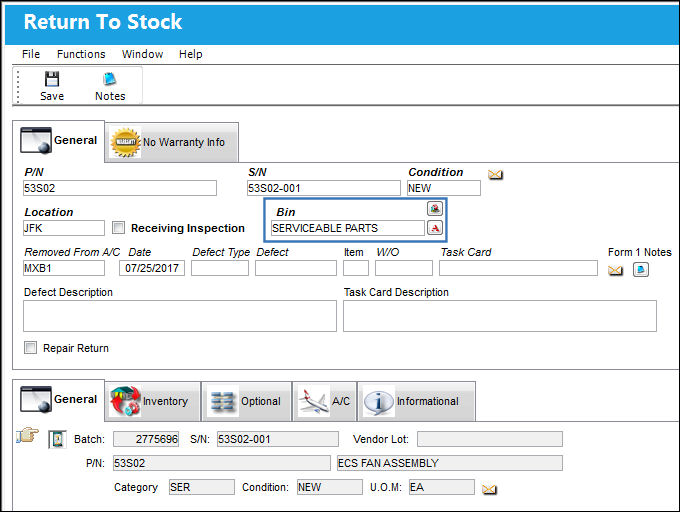

Then, the part is returned to a serviceable location. After selecting the Save button, note that no 'Issue to Exchange' prompt will be displayed.

AUTOREORDFORMNOTAC(5)

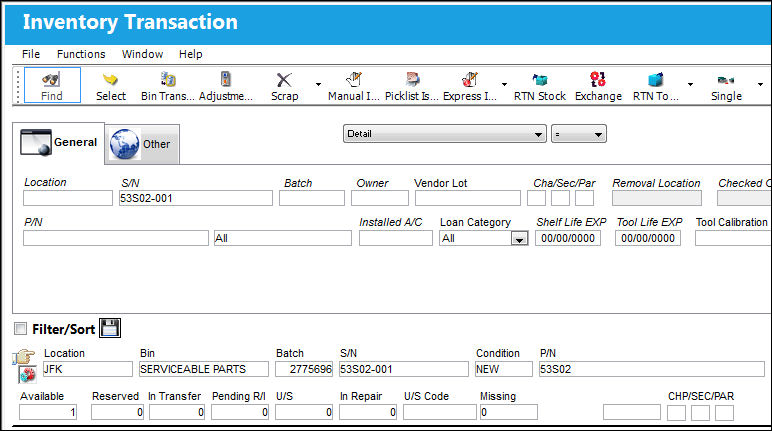

Once the process is completed, the part is sent back to the shelf.

AUTOREORDFORMNOTAC(6)

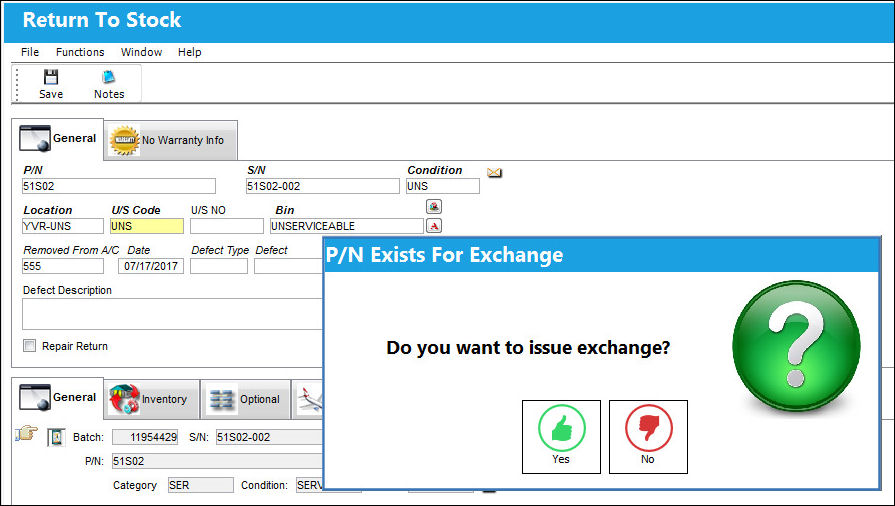

However, if the part is returned to an unserviceable location during the Return to Stock process, the prompt will be displayed once the Save button is selected.

AUTOREORDFORMNOTAC(7)

Switch Set to No:

When set to No, BOTH unserviceable (U/S-Quarantine) AND serviceable parts will be recognized by the Auto Exchange Order Process when it is Returned to Stock through the 'Removed from Aircraft' or 'Credit Work Order' options.

12_Inventory_No

In this example, a part is going to be removed from an aircraft and then Returned to Stock.

AUTOREORDFORMNOTAC(3)

In the Return to Stock window, the 'Removed From A/C Or Known To Inventory' option is selected. Note that the 'Credit W/O' option is always affected by the Switch setting.

AUTOREORDFORMNOTAC(4)

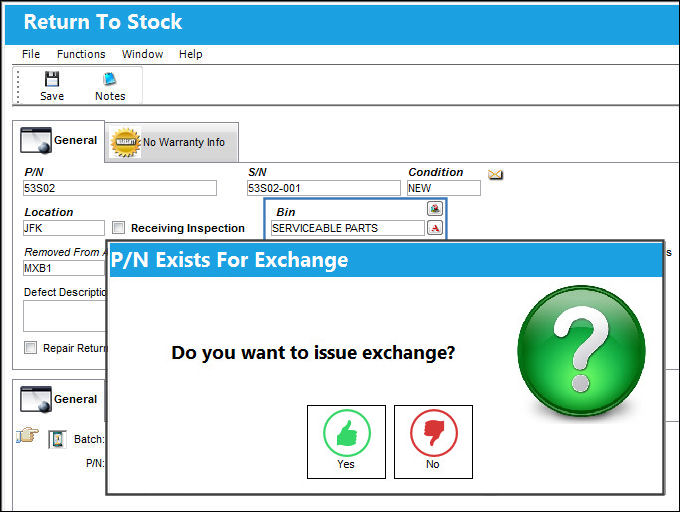

Then, the part is returned to a serviceable location. After selecting the Save button, the 'Issue to Exchange' prompt will be displayed.

AUTOREORDFORMNOTAC(8)

If the part is returned to an unserviceable location during the Return to Stock process, the prompt will also be displayed.

AUTOREORDFORMNOTAC(7)
