ETOPS - ETOPS Allow Warning at Manual Issue

TRAX MANUALS > Inventory > Inventory Switches > ETOPS - ETOPS Allow Warning at Manual Issue

ETOPS - ETOPS Allow Warning at Manual Issue

ETOPS Allow Warning at Manual Issue

Affected Window: w_pn_master_eu

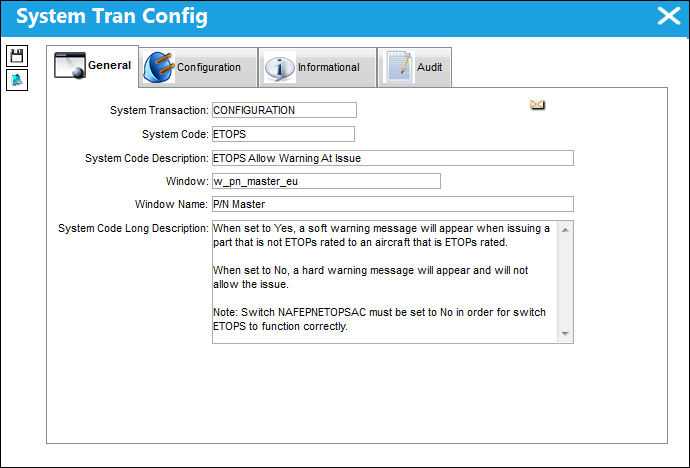

12_ETOPS_General

Note: Switch NAFEPNETOPSAC must be set to No in order for this switch to function correctly. Further, Switch ETOPS must be set to Yes in order for Switch NAFEPNETOPSAC to function correctly.

Note: Parts with a higher ETOPS rating can be issued to or installed on aircraft with a lower ETOPS rating. For example, a part with an ETOPS rating of 180 can be installed on an aircraft with an ETOPS rating of 120.

Switch Set to Yes:

When set to Yes, users are allowed to issue parts that are not ETOPS rated to aircraft that are ETOPS rated.

12_Inventory_Yes

The following A/C is ETOPS rated.

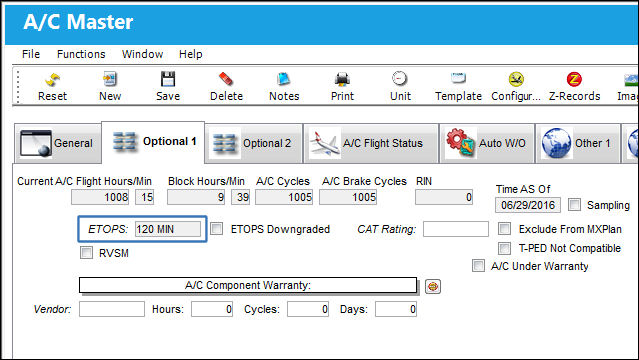

12_ACMaster(YES1)

The following P/N is not ETOPS rated.

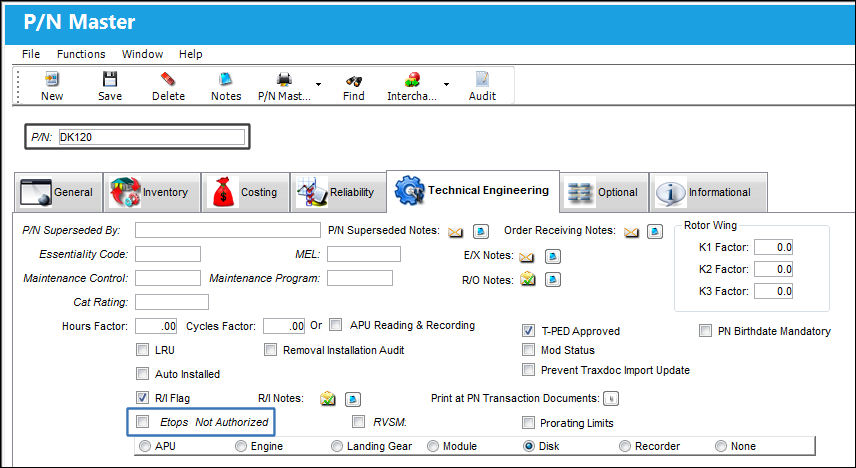

12_PNMaster(YES2)

Upon creating a Manual Issue for the P/N that is not ETOPS rated to an A/C that is ETOPS rated, a soft warning message appears. Selecting ‘OK’ allows the user to continue with the Manual Issue.

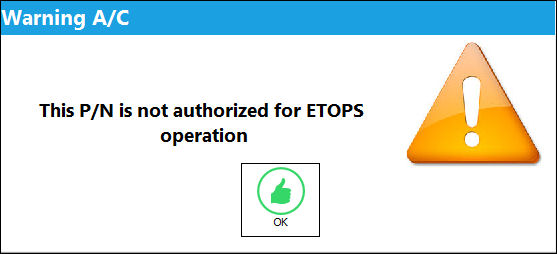

12_WarningAC

Switch Set to No:

When set to No, a hard warning message will appear and not allow the issuing of a part that is not ETOPS rates to an aircraft that is ETOPS rated.

12_Inventory_No

The following A/C is ETOPS rated.

12_ACMaster(YES1)

The following P/N is not ETOPS rated.

12_PNMaster(YES2)

Upon creating a Manual Issue for the P/N that is not ETOPS rated to an A/C that is ETOPS rated, a hard warning appears preventing the user from completing the Manual Issue.

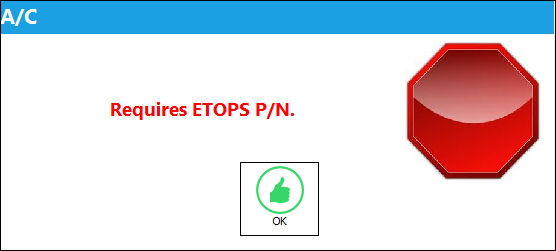

12_AC(Yes3)
