NOEMPTYIFNONLA - Do Not Display Missing NLA If Component Does Not Have An NLA

TRAX MANUALS > Inventory > Inventory Switches > NOEMPTYIFNONLA - Do Not Display Missing NLA If Component Does Not Have An NLA

NOEMPTYIFNONLA - Do Not Display Missing NLA If Component Does Not Have An NLA

Do Not Display Missing NLA If Component Does Not Have An NLA

Affected Window: w_pn_assembly_explorer

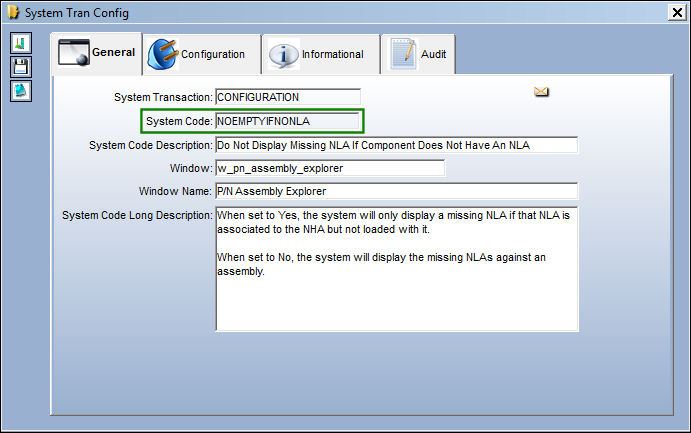

NOEMPTYIFNONLA_des

Setup:

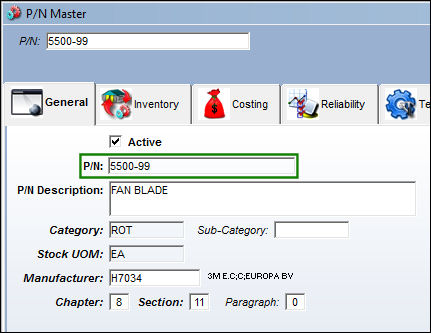

Note the following P/N.

NOEMPTYIFNONLA_yes1

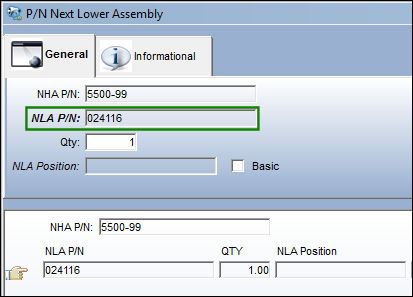

P/N 5500-99 has the following NLA 024116.

NOEMPTYIFNONLA_yes3

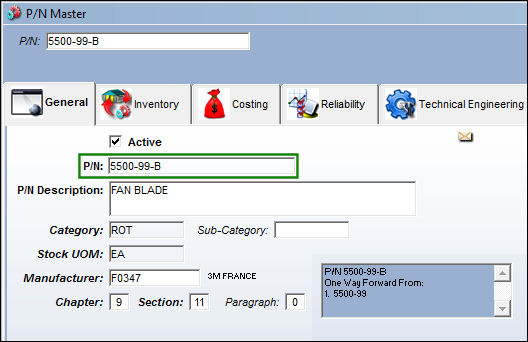

P/N 5500-99-B is a One Way Interchangeable for 5500-99.

NOEMPTYIFNONLA_yes2

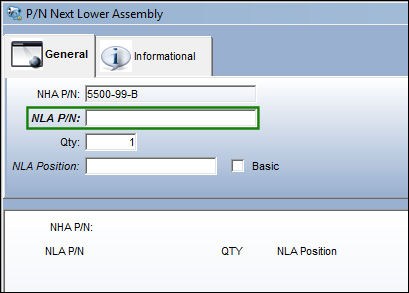

The One Way Interchangeable P/N does not have an NLA.

NOEMPTYIFNONLA_yes4

Switch Set to Yes:

When set to Yes, the system will only display a missing NLA if that NLA is associated to the NHA but not loaded with it.

INV_yes

The missing component is showing, as expected because it exists against the NHA, but was not loaded with it.

NOEMPTYIFNONLA_yes5

The Interchangeable P/N does not show a missing component. This is correct since the P/N does not have an NLA associated to it.

NOEMPTYIFNONLA_yes6

Switch Set to No:

When set to No, the system will display the missing NLAs against an assembly.

INV_no

The following P/N appears to be missing a component.

NOEMPTYIFNONLA_yes5

The following P/N appears to be missing a component.

NOEMPTYIFNONLA_yes6
