PCKLISTPSLOCATION - Create Packing & Shipping Record if Picklist Delivery Location and Picklist Issue Location Do Not Match

TRAX MANUALS > Inventory > Inventory Switches > PCKLISTPSLOCATION - Create Packing & Shipping Record if Picklist Delivery Location and Picklist Issue Location Do Not Match

PCKLISTPSLOCATION - Create Packing & Shipping Record if Picklist Delivery Location and Picklist Issue Location Do Not Match

but_12 big switch

Create Packing & Shipping Record if Picklist Delivery Location and Picklist Issue Location Do Not Match

Affected Window: w_inventory_transaction_picklist_sel

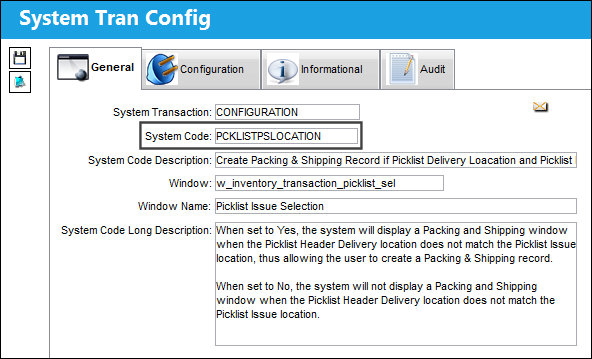

PCKLISTPSLOCATION_Configuration

Switch Set to Yes:

When set to Yes, the system will display a Packing and Shipping window when the Picklist Header Delivery location does not match the Picklist Issue location, thus allowing the user to create a Packing & Shipping record.

12_Inventory_Yes

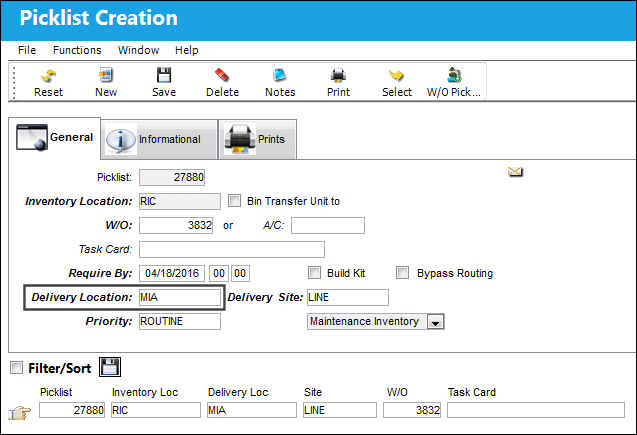

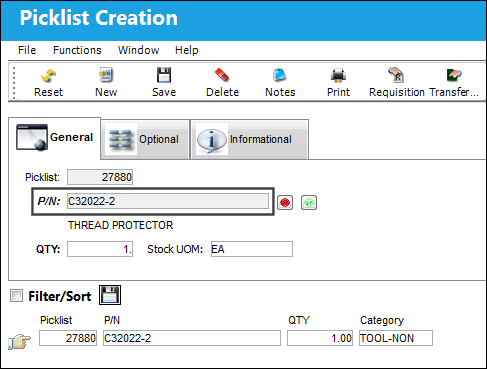

The following Picklist for a part is created with a specified Delivery Location.

PCKLISTPSLOCATION_Yes_No_1

PCKLISTPSLOCATION_Yes_No_2

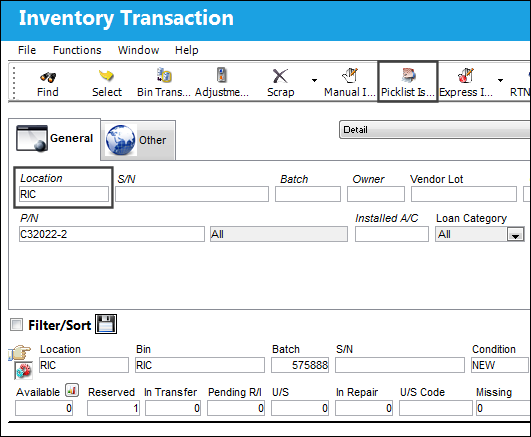

The location where the part will be issued is different from that of the Picklist's Delivery Location. Issue the Picklist.

PCKLISTPSLOCATION_Yes_No_3

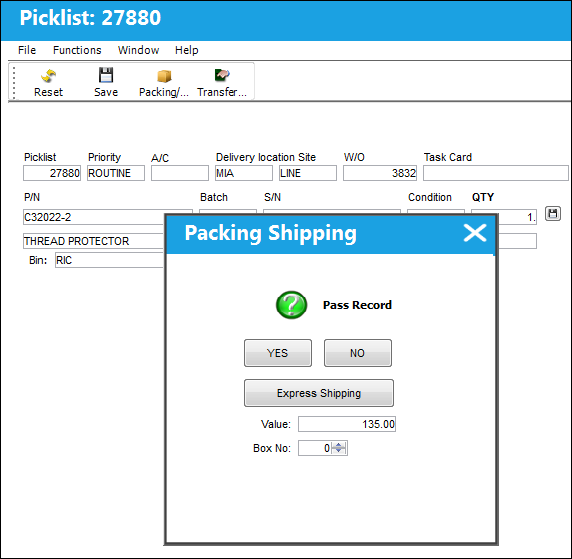

Upon saving the Picklist Issue transaction, the following Packing Shipping pop up appears allowing the user to create a Packing and Shipping record since the Delivery Location and Picklist Issue Location are not the same.

PCKLISTPSLOCATION_Yes_4

Switch Set to No:

When set to No, the system will not display a Packing and Shipping window when the Picklist Header Delivery location does not match the Picklist Issue location.

12_Inventory_No

The following Picklist for a part is created with a specified Delivery Location.

PCKLISTPSLOCATION_Yes_No_1

PCKLISTPSLOCATION_Yes_No_2

The location where the part will be issued is different from that of the Picklist's Delivery Location. Issue the Picklist.

PCKLISTPSLOCATION_Yes_No_3

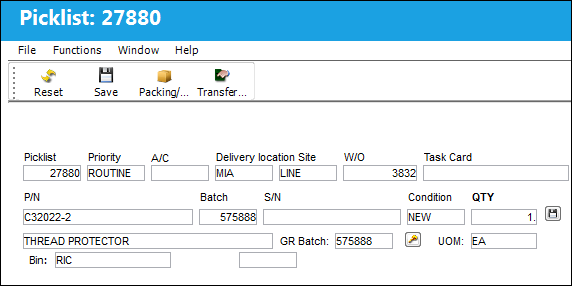

Upon saving the Picklist Issue transaction, the Packing Shipping pop up does not appear.

PCKLISTPSLOCATION_No_4
