INC1WAYPCKLST - Include One-Way Forward Interchangeable Parts in Picklists

Include One-Way Forward Interchangeable Parts in Picklists

Affect Window: w_picklist_header_eu

Note: This switch's functionality will not work if the Picklist is created for a Third Party Work Order.

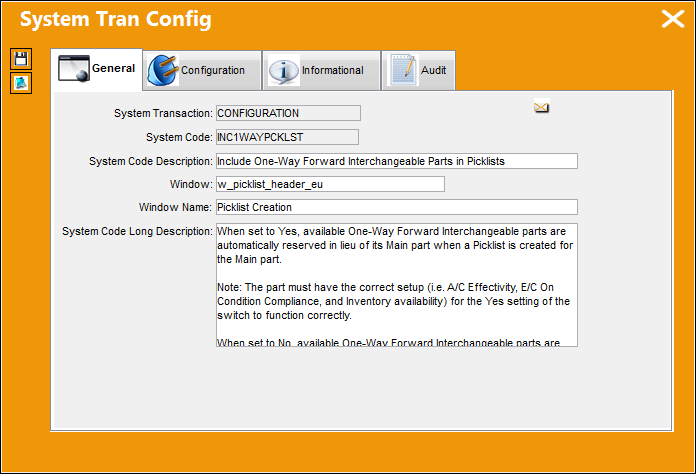

Configuration Switch INC1WAYPCKLST

Switch Set to Yes:

When set to Yes, available One-Way Forward Interchangeable parts are automatically reserved in lieu of its Main part when a Picklist is created for the Main part. This takes place automatically if the Main part is not available at the required Location but the One Way part is.

Note: The part must have the correct setup (i.e. A/C Effectivity, E/C On Condition Compliance, and Inventory availability) for the Yes setting of the switch to function correctly.

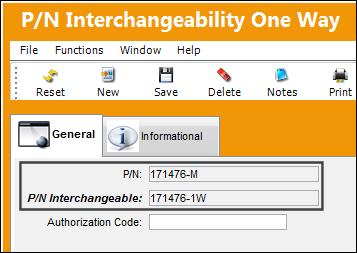

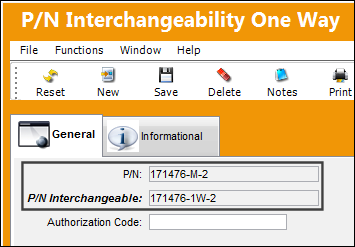

For example, notice the Main part to One-Way Interchangeable part relationship.

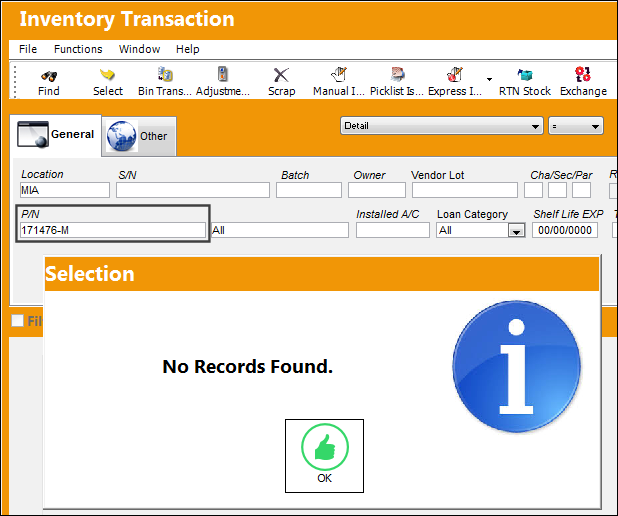

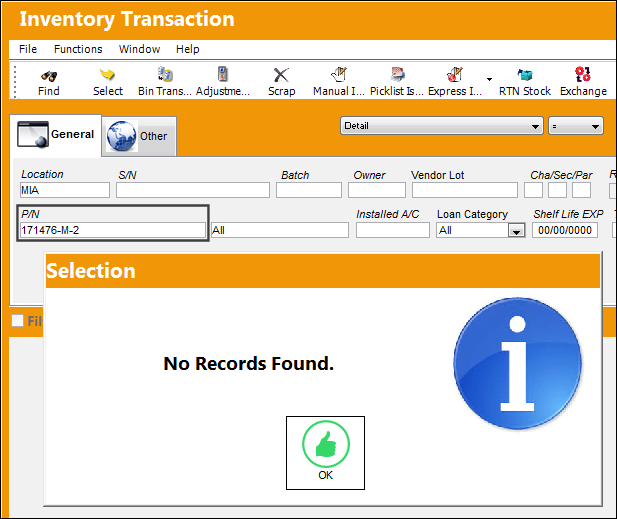

At the following Location, the main part is not in stock.

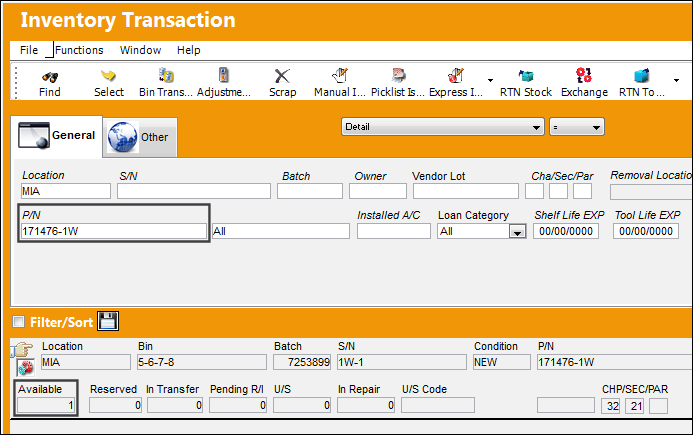

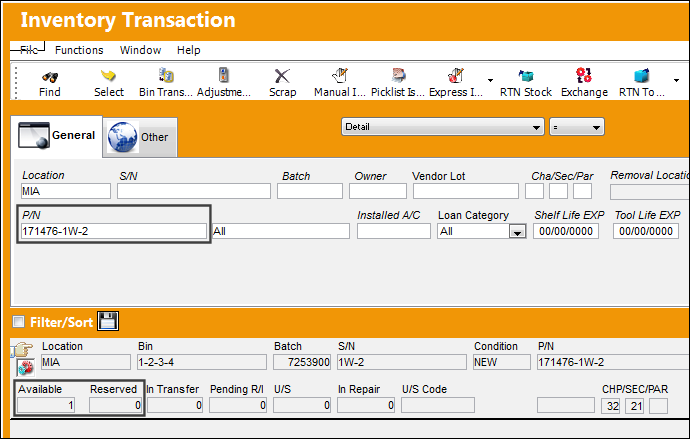

However, at the same Location the Main part's One-Way Interchangeable part is available.

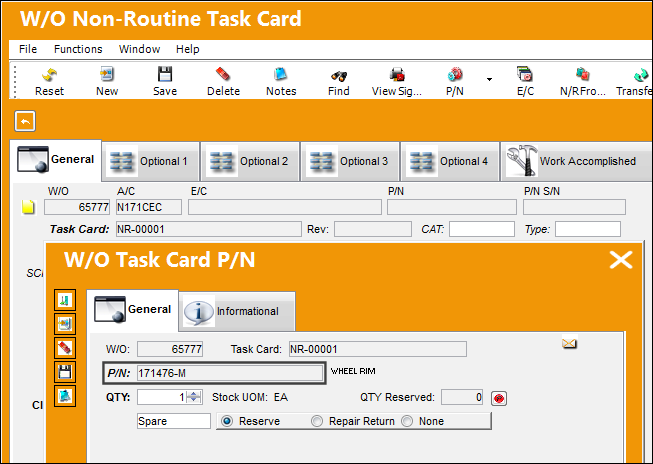

The following production Work Order Task Card is set up at the same Location with a P/N Requirement of the Main part.

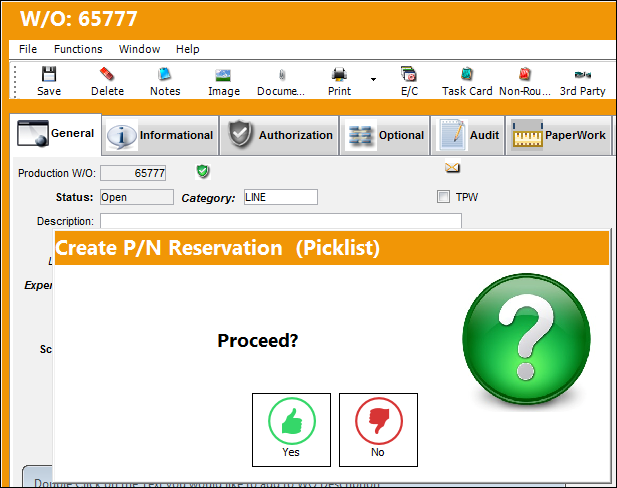

A Picklist is then created for that required part.

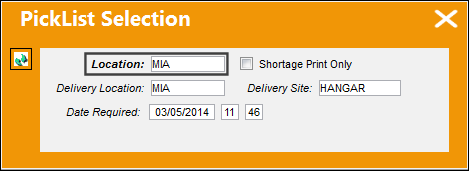

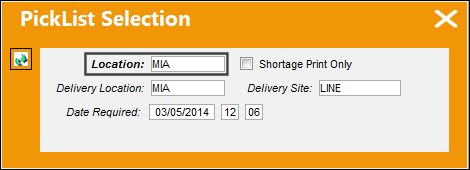

The Picklist Location is the same as above.

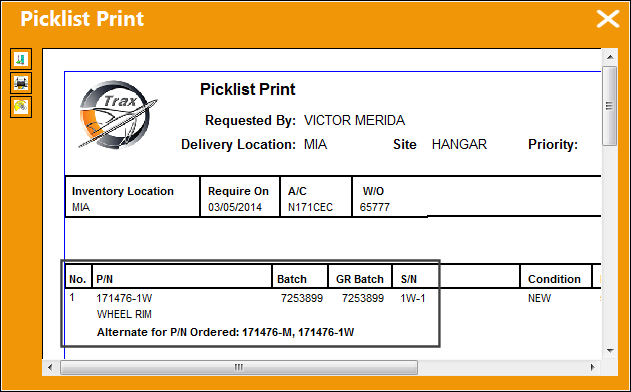

Because the Main part is not available at the required Location, notice that a Picklist automatically reserves the available One-Way Interchangeable part.

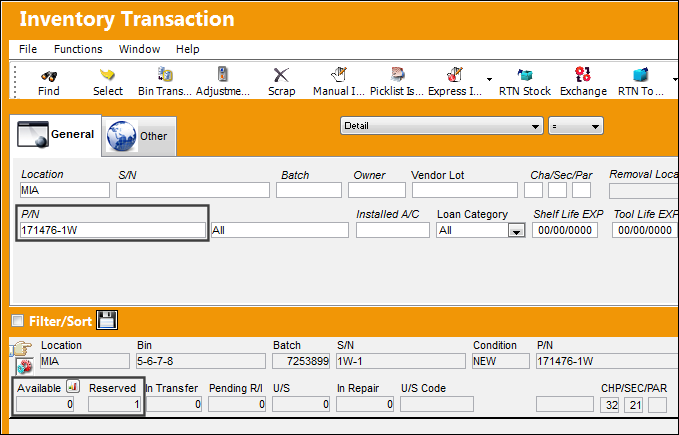

From the Inventory Transaction window, notice that the One-Way Interchangeable part is reserved for this Picklist.

Switch Set to No:

When set to No, available One-Way Forward Interchangeable parts are not automatically reserved when a Picklist is created for a Main part.

For example, notice the Main part to One-Way Interchangeable part relationship.

At the following Location, the main part is not in stock.

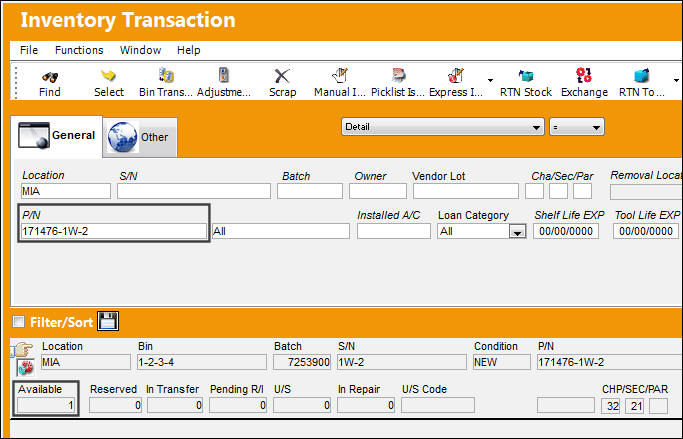

However, at the same Location the Main part's One-Way Interchangeable part is available.

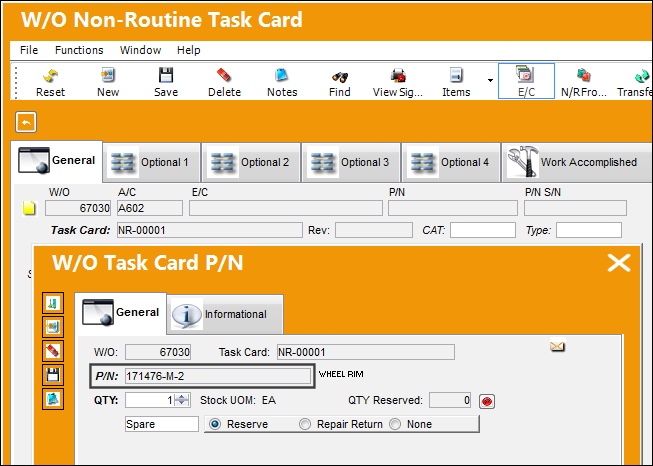

The following Work Order Task Card is set up at the above Location with a P/N Requirement consisting of the Main part.

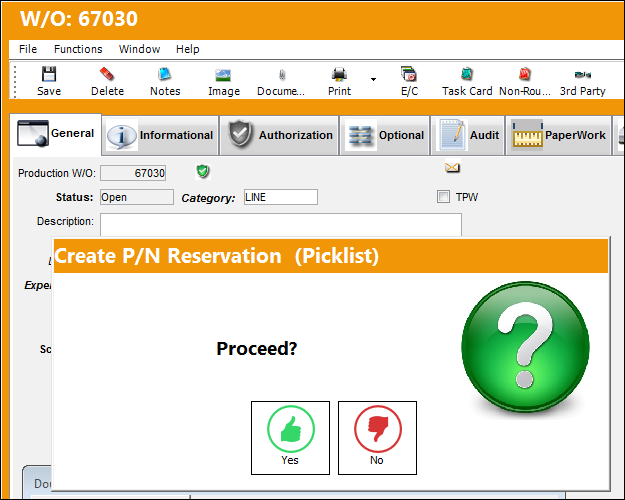

A Picklist is then created for that required part.

The Picklist Location is the same as above.

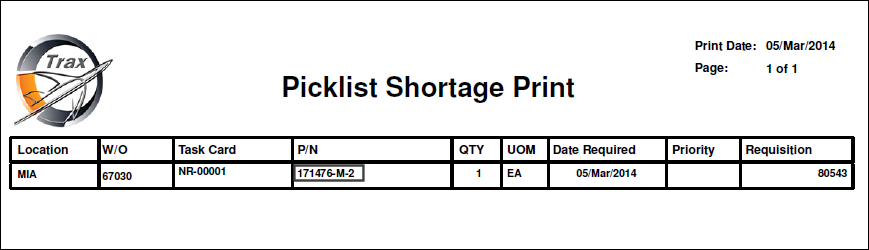

Because the required Main part is not available at the Location, the following Picklist Shortage Print was generated for that Main part. Even though the One-Way Interchangeable part is available at the required Location, that part is not automatically reserved.

Notice that the available One-Way Interchangeable part has not been reserved.
