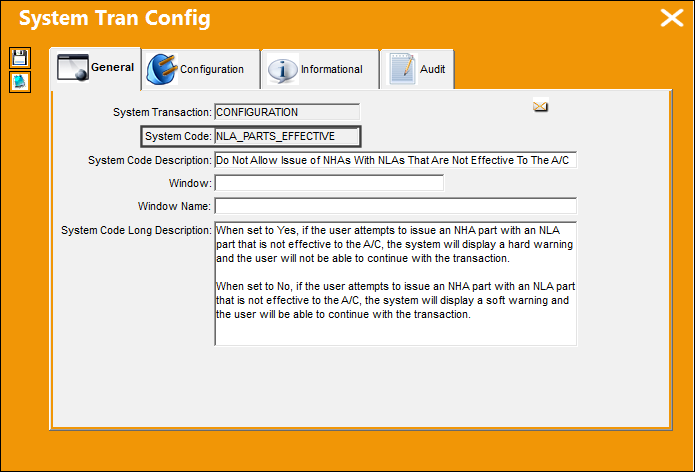

NLA_PARTS_EFFECTIVE - Do Not Allow Issue of NHAs With NLAs That Are Not Effective To The A/C

TRAX MANUALS > Inventory > Inventory Switches > NLA_PARTS_EFFECTIVE - Do Not Allow Issue of NHAs With NLAs That Are Not Effective To The A/C

NLA_PARTS_EFFECTIVE - Do Not Allow Issue of NHAs With NLAs That Are Not Effective To The A/C

Do Not Allow Issue of NHAs With NLAs That Are Not Effective To The A/C

Set Up:

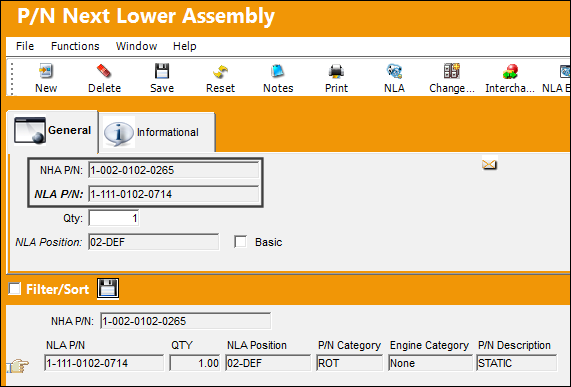

Note the following NHA and NLA.

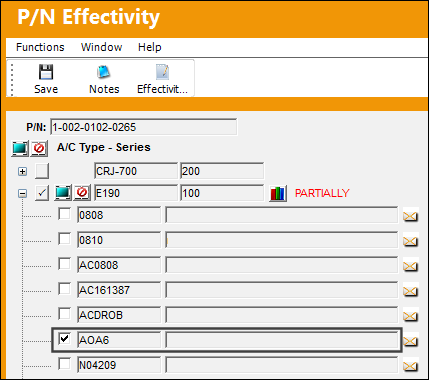

The following NHA is effective to aircraft AOA6.

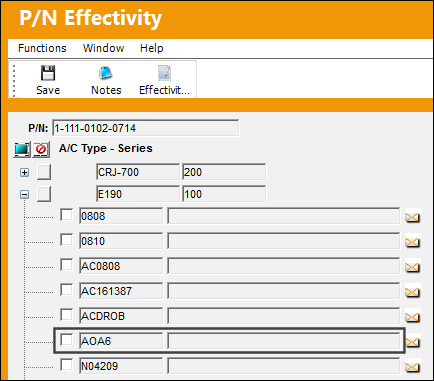

The following NLA is not effective to aircraft AOA6.

Switch Set to Yes:

When set to Yes, if the user attempts to issue an NHA part with an NLA part that is not effective to the A/C, the system will display a hard warning and the user will not be able to continue with the transaction.

INV_yes

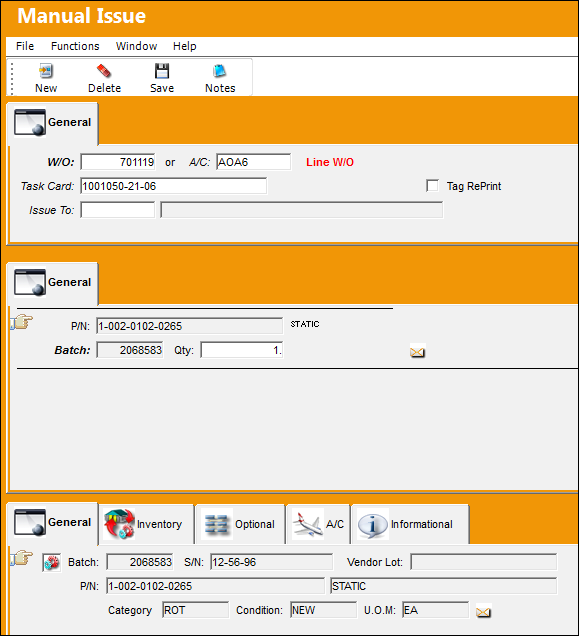

The user attempts to perform a Manual Issue.

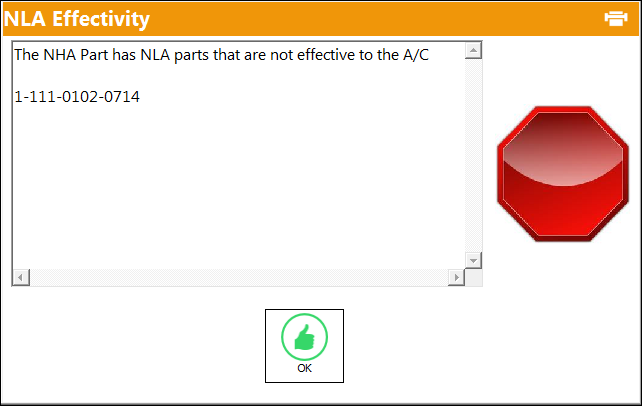

The following hard warning appears informing the user that the NHA part has an NLA part that is not effective to the aircraft. The use is not able to complete the Manual Issue transaction.

Switch Set to No:

When set to No, if the user attempts to issue an NHA part with an NLA part that is not effective to the A/C, the system will display a soft warning and the user will be able to continue with the transaction.

INV_no

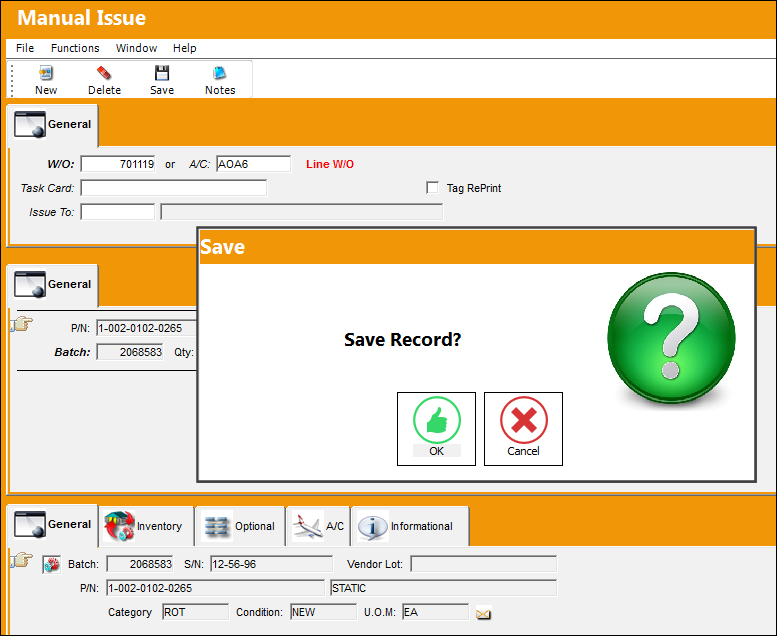

The user attempts to perform a Manual Issue.

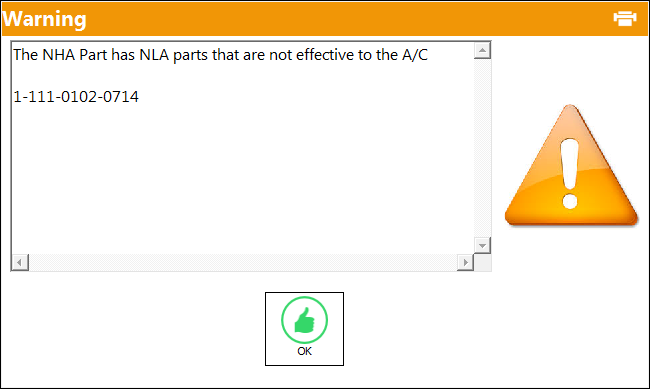

The following soft warning appears informing the user that the NHA part has an NLA part that is not effective to the aircraft. Select 'OK.'

The user is still able to proceed with the transaction.
