DEFRIFG - Default R/I at RTS and PN Initial Load

TRAX MANUALS > Inventory > Inventory Switches > DEFRIFG - Default R/I at RTS and PN Initial Load

DEFRIFG - Default R/I at RTS and PN Initial Load

Default R/I at RTS and PN Initial Load

Affected Window: w_inventory_transaction_return_non_eu

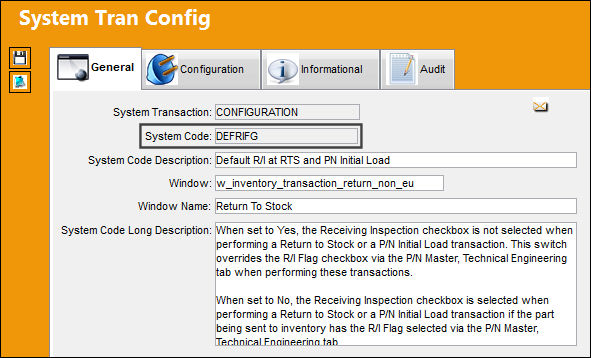

DEFRIFG_Configuration

Switch Set to Yes:

When set to Yes, the Receiving Inspection checkbox is not selected when performing a Return to Stock or a P/N Initial Load transaction. This switch overrides the R/I Flag checkbox via the P/N Master, Technical Engineering tab when performing these transactions.

INV_yes

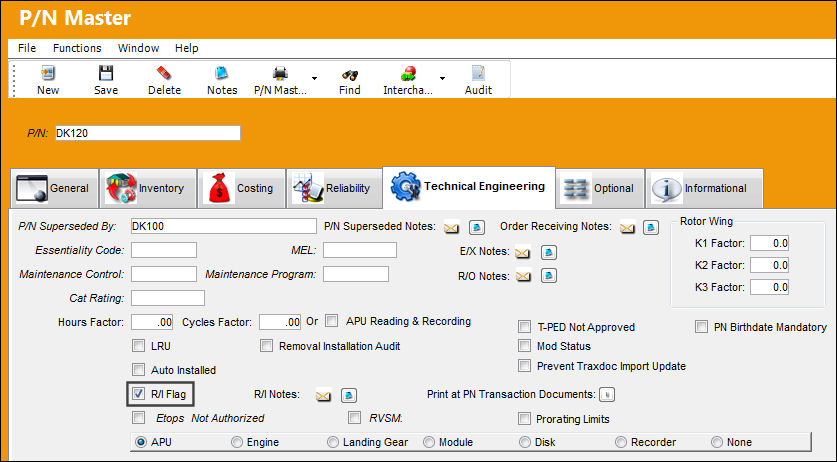

For example, notice that the following part has the R/I Flag checkbox selected via the P/N Master, Technical Engineering tab.

DEFRIFG_Yes_No_1

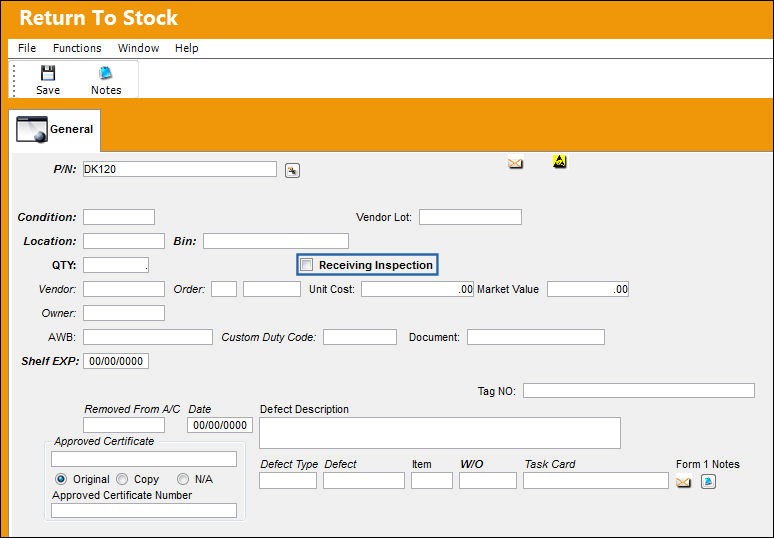

However, when the same part is returned to inventory through the Return to Stock functionality, the Receiving Inspection checkbox is deselected automatically.

DEFRIFG_Yes_3

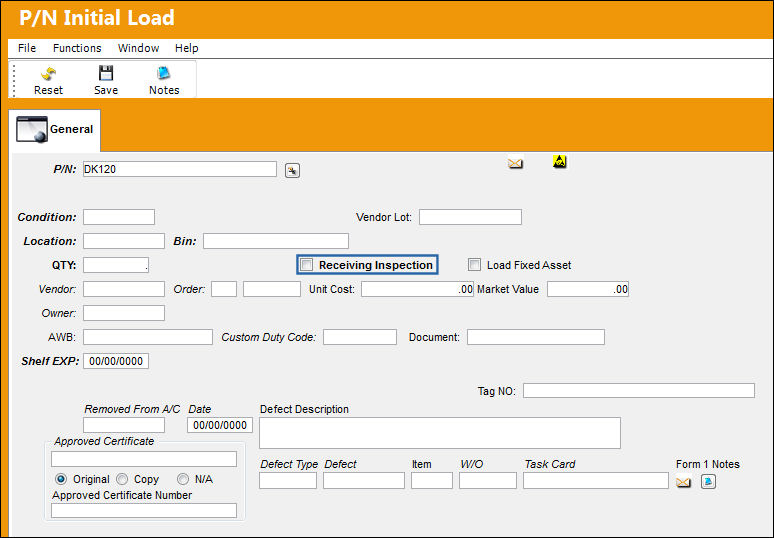

The same takes place from the P/N Initial Load window. Notice that the Receiving Inspection checkbox is deselected automatically.

DEFRIFG_Yes_2

Switch Set to No:

When set to No, the Receiving Inspection checkbox is selected when performing a Return to Stock or a P/N Initial Load transaction if the part being sent to inventory has the R/I Flag selected via the P/N Master, Technical Engineering tab.

INV_no

For example, notice that the following part has the R/I Flag checkbox selected via the P/N Master, Technical Engineering tab.

DEFRIFG_Yes_No_1

When the same part is returned to inventory through the Return to Stock functionality, the Receiving Inspection checkbox is selected by default.

DEFRIFG_No_3

When the same part is sent to inventory through the P/N Initial Load functionality, the Receiving Inspection checkbox is selected by default.

DEFRIFG_No_2
