TOOLCKOUTMAN - Tool Check Out W/O and Task Card fields Mandatory

TRAX MANUALS > Inventory > Inventory Switches > TOOLCKOUTMAN - Tool Check Out W/O and Task Card fields Mandatory

TOOLCKOUTMAN - Tool Check Out W/O and Task Card fields Mandatory

but_11.5 big switch

Tool Check Out W/O and Task Card fields Mandatory

Affected Window: w_inventory_transaction_tool_check_out

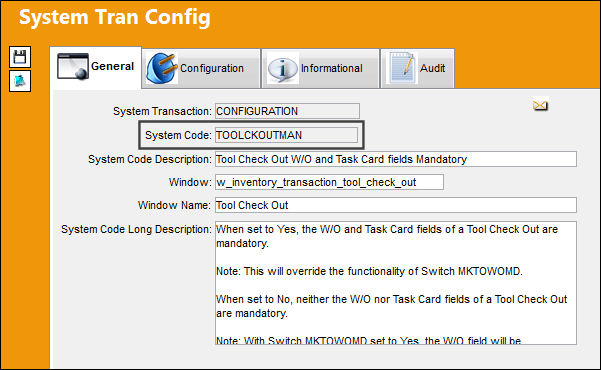

TOOLCKOUTMAN_Configuration

Switch Set to Yes:

When set to Yes, the W/O and Task Card fields of a Tool Check Out are mandatory.

INV_yes

Note: This will override the functionality of Switch MKTOWOMD.

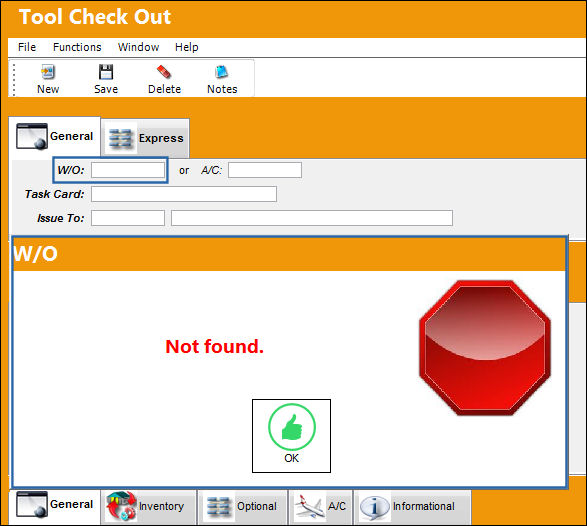

The following Tool Check Out is being conducted. Notice the W/O field is mandatory.

TOOLCKOUTMAN_Yes_1

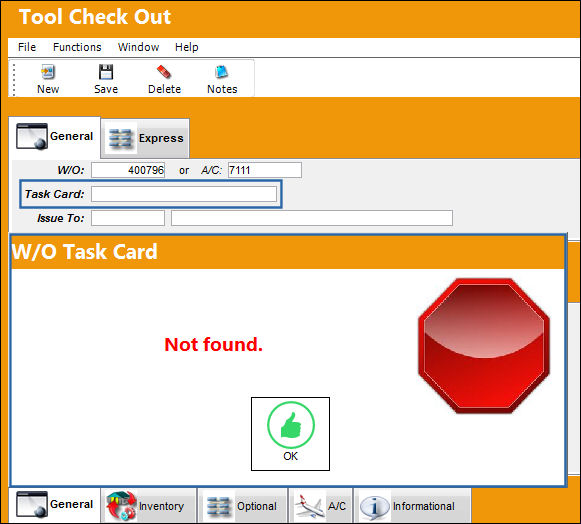

Upon the W/O being populated, notice the Task Card is mandatory.

TOOLCKOUTMAN_Yes_2

Switch Set to No:

When set to No, neither the W/O nor the Task Card fields of a Tool Check Out are mandatory.

INV_no

Note: With Switch MKTOWOMD set to Yes, the W/O field will be mandatory.

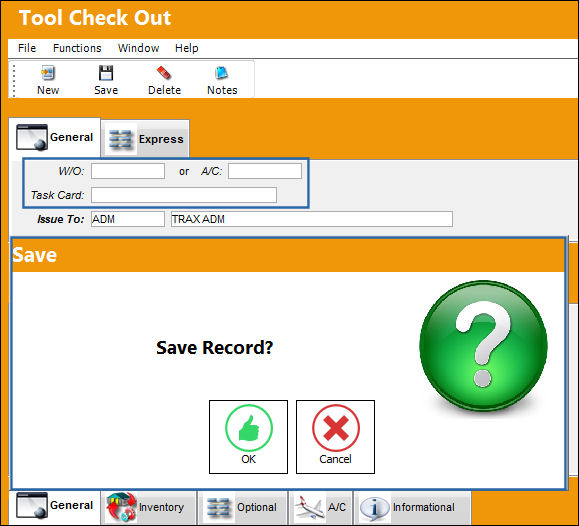

The following Tool Check Out is being conducted. Notice neither the W/O nor Task Card fields are mandatory.

TOOLCKOUTMAN_No_1
