PNBINCHG - P/N Identification Tag Bin Change to Receiving Bin

TRAX MANUALS > Inventory > Inventory Switches > PNBINCHG - P/N Identification Tag Bin Change to Receiving Bin

PNBINCHG - P/N Identification Tag Bin Change to Receiving Bin

P/N Identification Tag Bin Change to Receiving Bin

Affected Window: w_pn_identification_tag_print

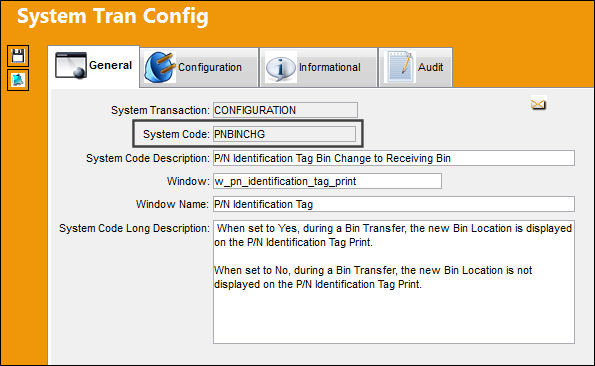

PNBINCHG_Configuration

Switch Set to Yes:

When set to Yes, during a Bin Transfer, the new Bin Location is displayed on the P/N Identification Tag Print.

INV_yes

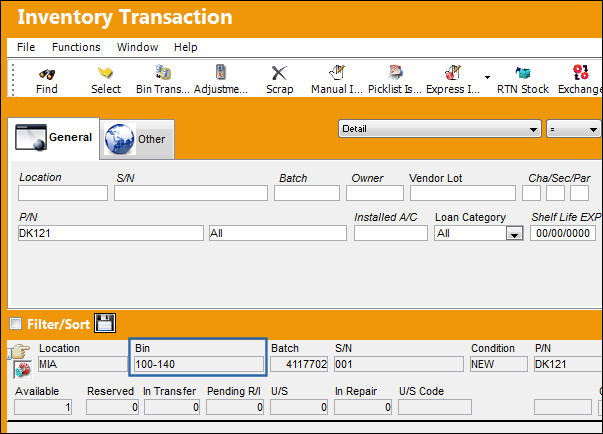

Notice the current Bin of a P/N.

PNBINCHG_Yes_1

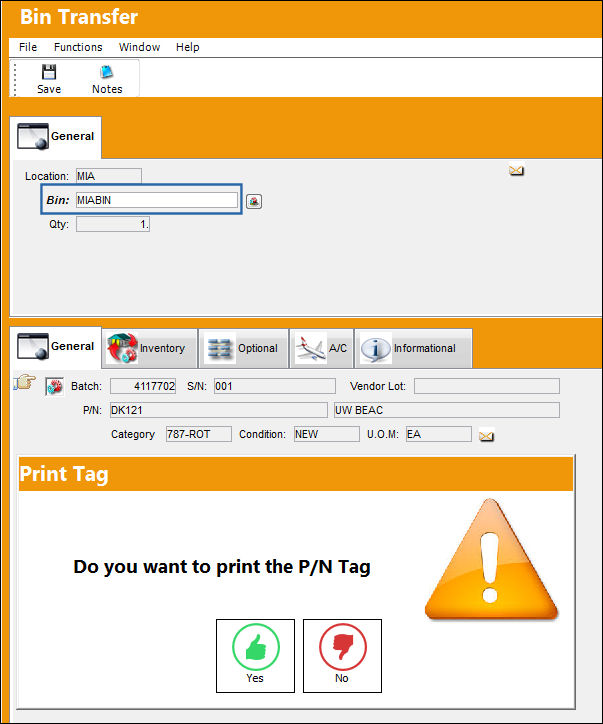

Upon conducting a Bin Transfer, the P/N Identification Tag is available to print.

PNBINCHG_Yes_2

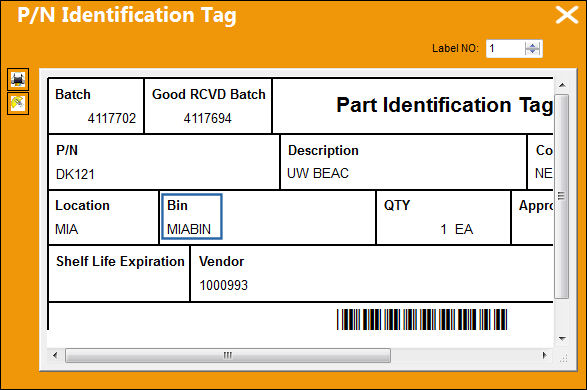

With the switch set to Yes, the new Bin Location is displayed on the P/N Identification Tag.

PNBINCHG_Yes_3

Switch Set to No:

When set to No, during a Bin Transfer, the new Bin Location is not displayed on the P/N Identification Tag Print.

INV_no

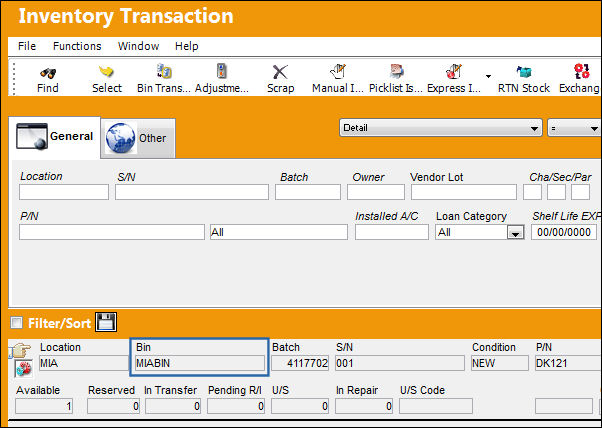

Notice the current Bin of a P/N.

PNBINCHG_No_1

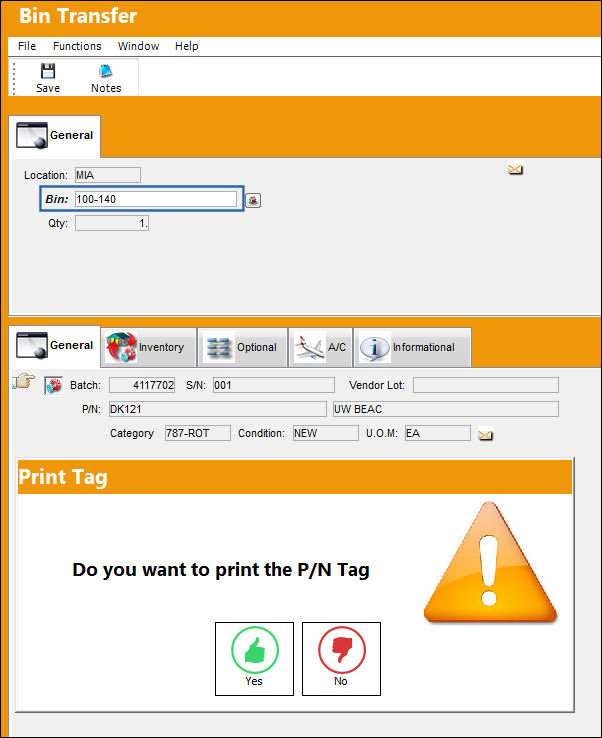

Upon conducting a Bin Transfer, the P/N Identification Tag is available to print.

PNBINCHG_No_2

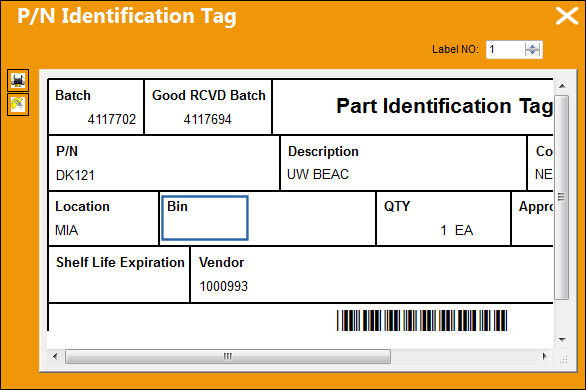

With the switch set to No, the new Bin Location is not displayed on the P/N Identification Tag.

PNBINCHG_No_3
