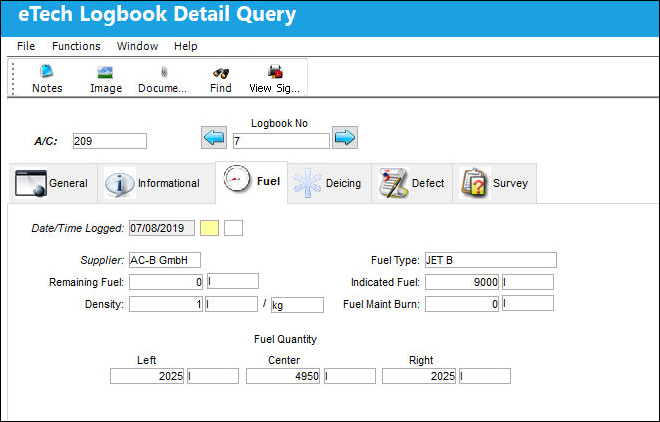

eTech Logbook Detail Query, Fuel Tab

The Fuel tab displays the aircraft's fuel information for the selected logbook entry, as recorded in the Pilotlog logbook.

 The Notes, , Image, , and Document Control buttons are available in this window.

The following information/options are available in this window:
_____________________________________________________________________________________

View Signed PDF button

Select this button to view any signed PDFs that have been attached to the eTech Logbook record.

A/C

The individual aircraft tail number.

Logbook No.

The eTech Logbook number associated with the SN. This field is populated when saved. Displays the current logbook number. The left button and right buttons can be used to display the previous or next logbook entry.

Date/Time Logged

The date and time the aircraft's fuel levels were serviced.

Supplier

The fuel vendor.

Fuel Type

The type of fuel.

Remaining Fuel

The amount of fuel remaining after the flight. This value is calculated by adding the amount of fuel in each tank after the flight.

Indicated Fuel

The amount of fuel required for the flight and taxiing.

Density

The fuel density (the ratio of its mass to its volume).

Fuel Maint Burn

This is the amount of fuel burned during maintenance before or after the flight.

Fuel Quantity Left/Center/Right

The total quantity of fuel added in each tank.

_____________________________________________________________________________________
