TRAX Fields populated by Spec 2000 XML Import

TRAX MANUALS > Engineering > Engineering Module - E/C > Engineering E/C, Update Menu > Manufacturer Data Import > A/C Readiness Records Spec2000, via Manufacturer Data Import > TRAX Fields populated by Spec 2000 XML Import

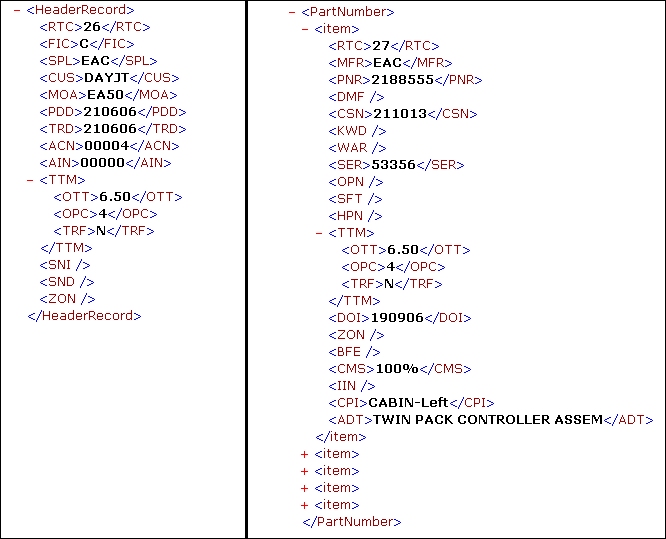

The Spec 2000 XML file contains aircraft and part number information in tagged fields. All these fields are imported into the Data Import Tab of the A/C Readiness Spec 2000 Manufacturer Data Import Program.

Spec 2000_traxfields_2

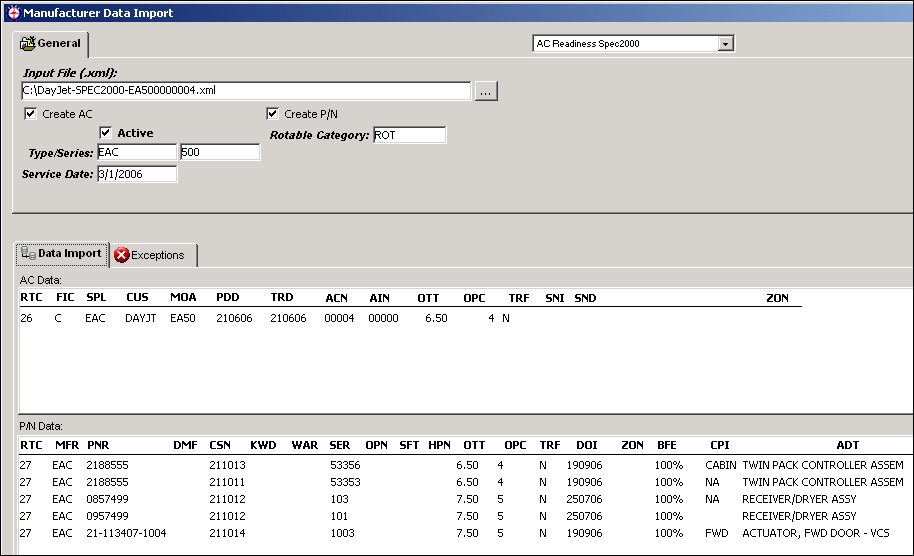

The upper window in the Data Import Tab displays the A/C Data extracted from the Spec 2000 XML file.

The lower window displays the P/N Data extracted from the Spec 2000 XML file.

Spec 2000_traxfields_1

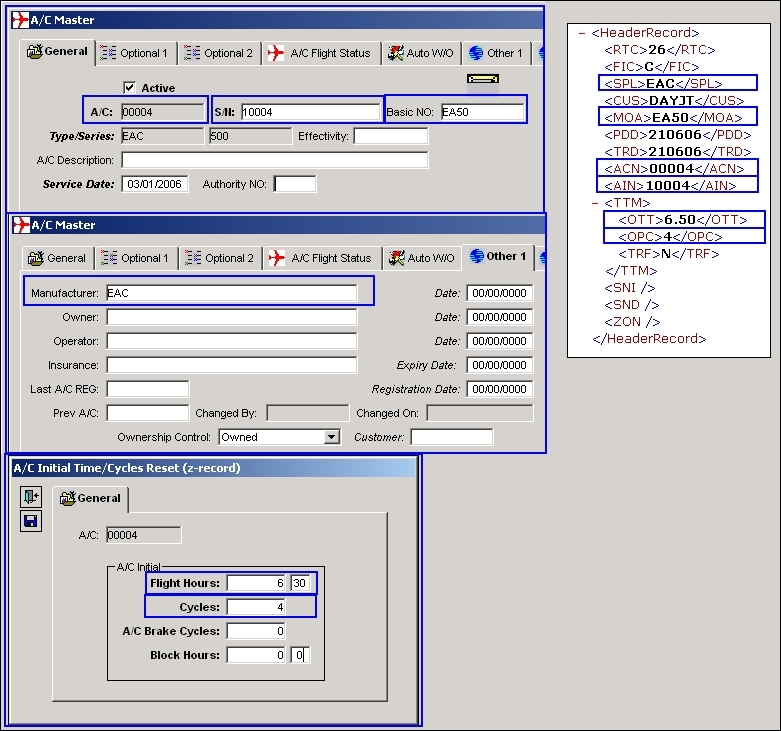

The following xml tagged A/C data is imported into TRAX:

A/C Data
<RTC>	Identifies the data as A/C data or P/N data (26=A/C data, 27=P/N data).
<SPL>	Manufacturer in the TRAX A/C Master, General Tab.
<MOA>	Basic Number in the TRAX A/C Master, General Tab.
<ACN>	A/C Number in the TRAX A/C Master, General Tab.
<AIN>	A/C S/N Number in the TRAX A/C Master, General Tab.
<OTT>	A/C Flight Hours (creates z-record in TRAX).
<OPC>	A/C Cycles (creates z-record in TRAX).

Spec 2000_traxfields_3.jpg

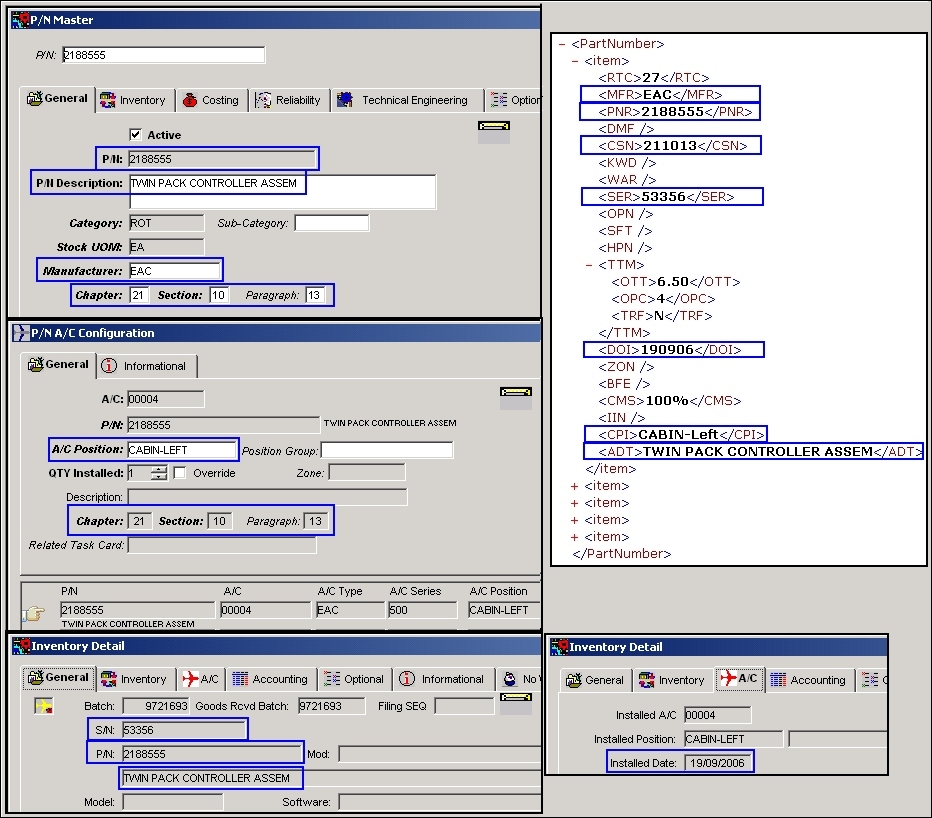

The following xml tagged P/N data is imported into TRAX:

P/N Data
<RTC>	Identifies the data as A/C or P/N data (26=A/C data, 27=P/N data).
<MFR>	Manufacturer in the TRAX P/N Master.
<PNR>	Part Number in the TRAX P/N Master.
<CSN>	Chapter, Section, Paragraph in the TRAX P/N Master.
<SER>	Part Serial Number in TRAX Inventory.
<DOI>	Installed Date (DDMMYY) in TRAX Inventory.
<ZON>	Zone in the TRAX P/N A/C Configuration.
<CPI>	A/C P/N Position in the TRAX P/N A/C Configuration.
<ADT>	P/N Description in the TRAX P/N Master.

Spec 2000_traxfields_4
