Display By Area, via Shop Resource/Tasks Planner

The Display Area contains detailed information regarding the Shop Tasks.

Note: The display of the Location/Sites is dependant on the setting of Switch SHPPLNDLF.

The following information/options are available in this window:
_____________________________________________________________________________________

Red Vertical Line indicator

Current date visual marker.

Different Location icon

The yellow icon at the beginning of a Shop Work Order indicates that the Shop Work Order is in a different location than the scheduled flight.

Work Order Node

The different colored Shop Work Orders indicate the type of Shop Work Order Category. This can be set up via Settings/Explorer/System Transaction Code Explorer/Production/W/O Category. The color assigned to each Shop Work Order category will be the color displayed in the Display By Area. The Shop Work Order Node is represented by a six digit Shop Work Order number and a Shop Work Order description note that is defined in the Selected Shop Work Order Area, General tab. For more information refer to the Selected Shop Work Order Area.

Overdue E/C icon

The red arrow at the end of a Shop Work Order indicates that an E/C within the Shop Work Order is overdue. A Shop Work Order containing an overdue E/C cannot be moved or changed.

Note: The Overdue E/C icon will disappear once the E/C has taken manual compliance and the window has been refreshed.

Next Lower Work Order icon

The black arrow linking two Shop Work Orders displays the Next Lower Shop Work Order.

_____________________________________________________________________________________

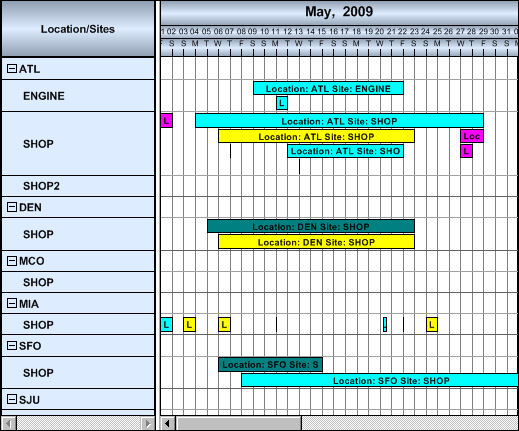

Right click in the blue/gray area as shown below:

The following options become available:

_____________________________________________________________________________________

Edit time scale...

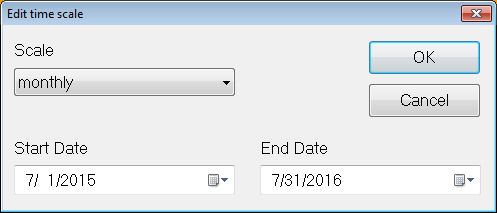

Select the Edit time scale option. The Edit time scale pop-up appears. The user may use the below fields to change the time scale displayed in the Display By Area.

Note: The user may also access the Edit time scale drop down by double clicking in the blue/gray area.

Scale - The user may select from one of the following time increments (monthly, weekly, daily) to change the display in the Display By Area:

Monthly - Select 'monthly' to view all planning jobs on a monthly calendar.

Weekly - Select 'weekly' to view all planning jobs on a weekly calendar.

Daily - Select 'daily' to view all planning jobs on a daily calendar.

Start Date - From the Start Date drop down, use the arrows to the left and right of the month to change the Start Date/month/year of the view in the Display By Area.

End Date - The End Date is used the same way as the Start Date.

Time-now line

Select the Time-now line to have the Today marker display as shown below:

Grid

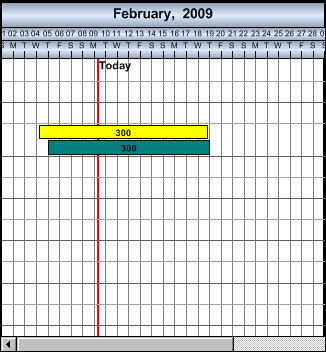

When the Grid option is selected, the display By Area is displayed with grid lines, as shown below:

_____________________________________________________________________________________

Additional Functionality:

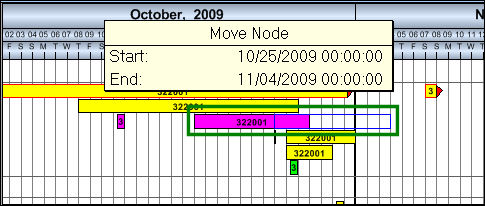

To move the Work Order from one Location to another, the Shift key must be held while the Shop W/O is dragged.
