Copy/Paste, via XML Tree View Panel

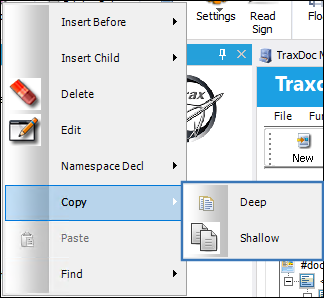

Select the Copy option to copy either a selected element along with its child (Copy Deep) or copy the element by itself (Copy Shallow).

Trax XML tree Copy-Paste-1



Copy Deep:

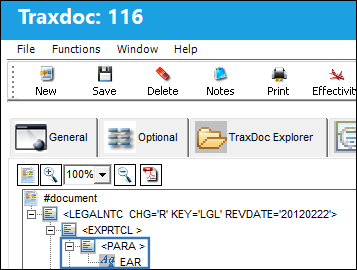

Select the element to be copied:

Trax XML tree Copy-Paste-2.1

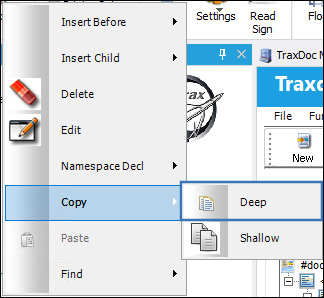

Select the Copy Deep option.

Trax XML tree Copy-Paste-3

Select the area where the element and its child are to be copied. Select the Paste but_paste1.jpg button.

Note: The Paste but_paste1.jpg button becomes activated once the Copy function is selected.

Trax XML tree Copy-Paste-4

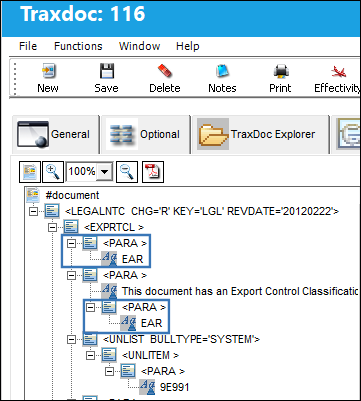

The element along with its child has been copied and pasted as shown below:

Trax XML tree Copy-Paste-5



Copy Shallow:

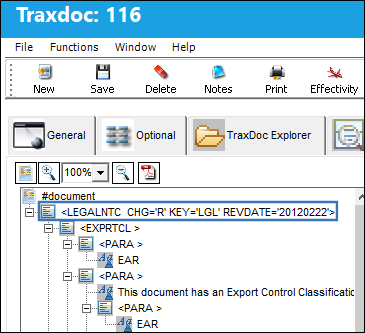

Select the element to be copied:

Trax XML tree Copy-Paste-6

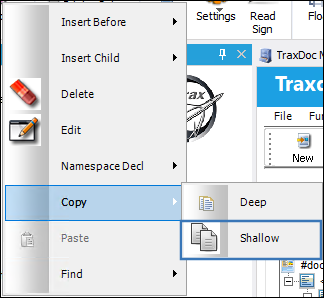

Select the Copy Shallow option.

Trax XML tree Copy-Paste-7

Select the area where the element is to be copied. Select the Paste but_paste1.jpg button.

Trax XML tree Copy-Paste-4

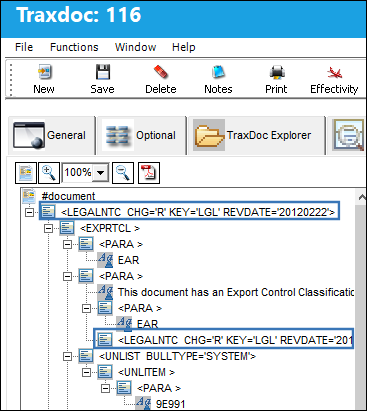

The element has been copied and pasted as shown below:

Trax XML tree Copy-Paste-9
