P/N Software Configuration, General Tab

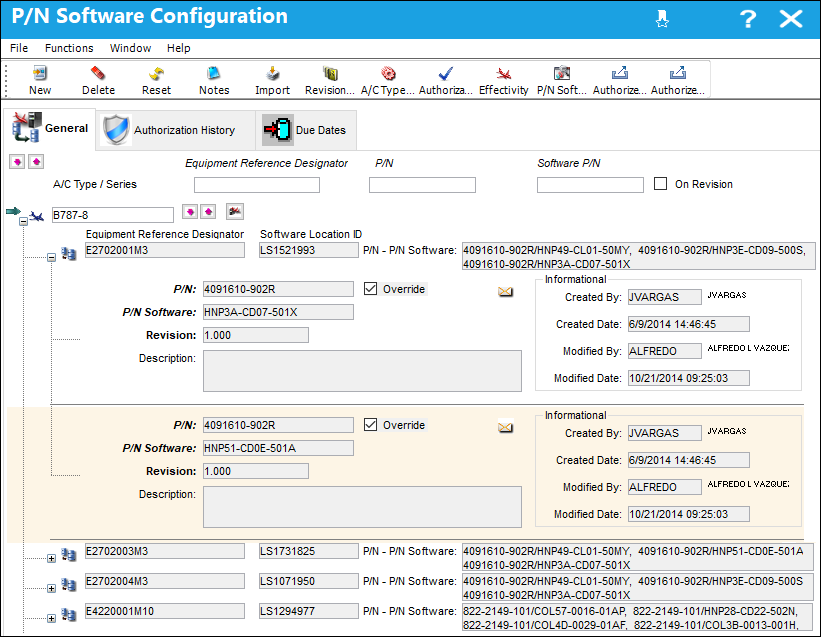

The P/N Software Configuration, General tab, allows users to create, delete, import, revise, and view the configuration of installed software parts for each A/C Type/Series.

The following information/options are available in this window:
_____________________________________________________________________________________

A/C Type/Series

The Aircraft Type and Series/Fleet assignment.

Expand All button

Select the Expand All button to expand the P/N Software Configuration assembly.

Collapse All button

Select the Collapse All button to collapse the P/N Software Configure assembly.

P/N Software Configuration On A/C button

Select the P/N Software Configuration On A/C button to view installed configuration on a specified aircraft. This information is loaded through the 'As Flying' import in the Manufacturer Data Import window of the Engineering module. Selecting this button lists the ERD, SLID, and Serial Number for each software part installed on the aircraft. For additional information, refer to the P/N Software Configuration On A/C Button, via P/N Software Configuration.

Equipment Reference Designator (ERD)

The aircraft position ERD (Equipment Reference Designator) reference. This is the physical position on the aircraft where the hardware part is installed.

Note: When Switch PNSOFTEC is set to Yes, this field is not available. For more information, refer to Switch PNSOFTEC via the Settings Switches Training Manual.

Software Location ID (SLID)

The Software Location Identification (SLID) code. The SLID is where the software for the part is loaded onto the hardware part's ERD location. One ERD may have multiple SLIDs as a hardware part may have multiple software components. Each SLID has a transaction code via the Settings Module. SLIDs are typically loaded into the system through the 'A/C Authorized Software Configuration' Manufacturer Data Import but they may also be created manually.

P/N

The Part Number reference for the aircraft part. The hardware part that is installed on the aircraft in its ERD position.

Note: When Switch PNSOFTEC is set to Yes, this field is not available. For more information, refer to Switch PNSOFTEC via the Settings Switches Training Manual.

P/N Software

The software part that is installed on the aircraft for the hardware part.

Revision

The P/N Software Configuration revision.

Description

The P/N Software Configuration description.

Override checkbox

When this checkbox is selected, it indicates that the P/N Software Configuration is only effective to some aircraft. When it is deselected, it indicates that the P/N Software Configuration is effective to all aircraft. This checkbox is informational only and cannot be selected/deselected in this window.

_____________________________________________________________________________________

Informational:

The following information/options are available in this window:
_____________________________________________________________________________________

Created By

The user who created the record.

Created Date

The date the record was created.

Modified By

The user who last modified the record.

Modified Date

The date the record was last modified.

_____________________________________________________________________________________
