HELICOPTER INTEGRATION > Planning P/N Controls for Helicopters

Planning P/N Controls for Helicopters

The Formulas created in the Settings module can be applied to P/N Controls for parts that are installed on Helicopter Aircraft. These P/N Controls can then track component schedules based on these customized Helicopter formulas. Once flight times are accumulated for the components/helicopter, the Planning Query accounts for these customized P/N Controls and updates the component's scheduled dates and Due Dates accordingly.

For example, two Formulas were created that will measure installed components' usages.

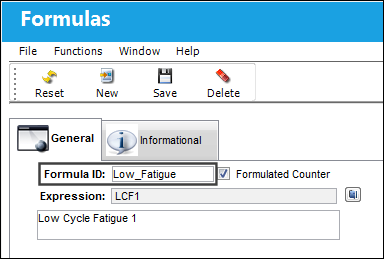

The first formula example is 'Low_Fatigue.'

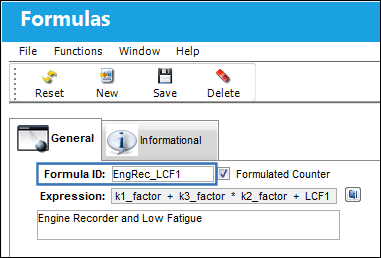

The second formula is 'EngRec_LCF1'. (Notice that this formula is made up of the LCF1 formula and the K Factors below).

Note: For more information refer to the Formulas window in the Settings Training Manual.

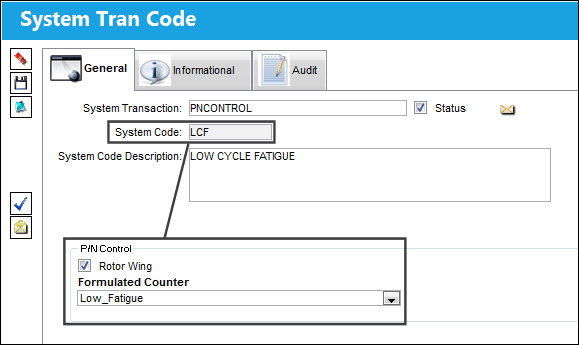

Now these formulas must be linked to P/N Controls which will track specific Helicopter components. The 'Low_Fatigue' formula was linked to a P/N Control called 'LCF'.

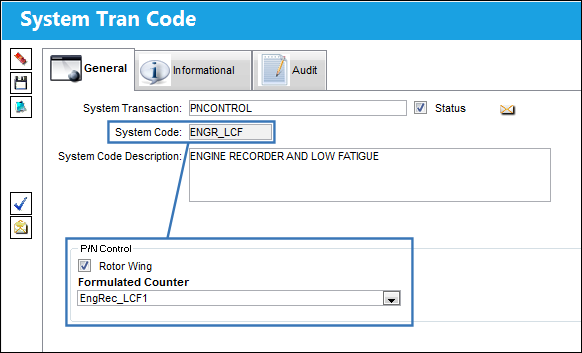

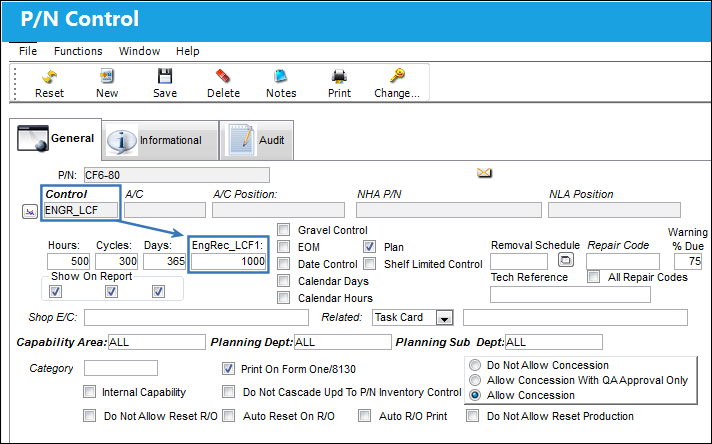

The 'EngRec_LCF1' formula was linked to a P/N Control called 'ENGR_LCF'.

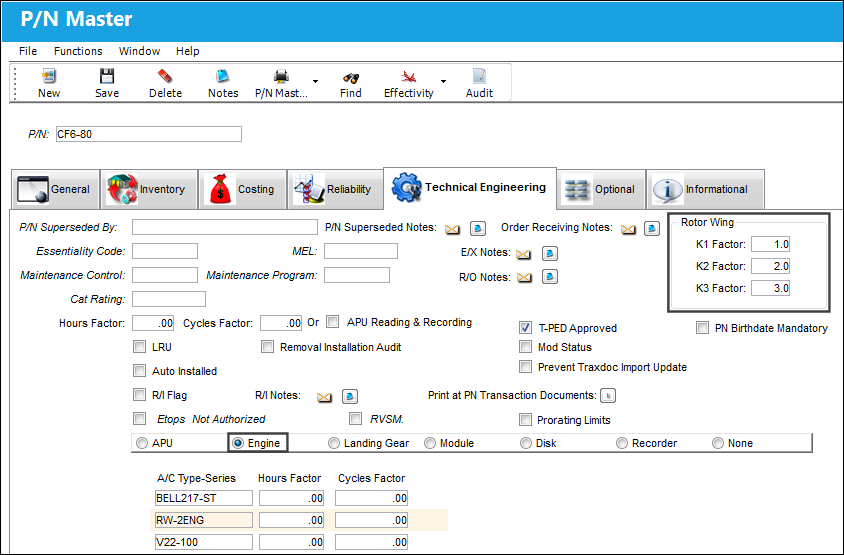

The following part is an Engine NHA component that will be tracked along with the K Factors in the P/N Master, Technical Engineering tab.

This NHA part is linked to the above P/N Controls that are linked to the formulas. P/N Control 'LCF' has a schedule for formula 'Low_Fatigue'.

P/N Control 'ENGR_LCF' has a schedule for formula 'EngRec_LCF1'.

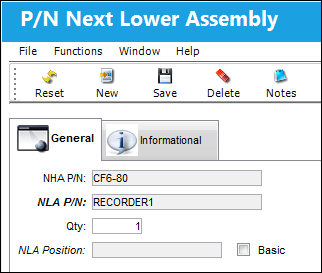

Now notice that the NHA component contains an NLA.

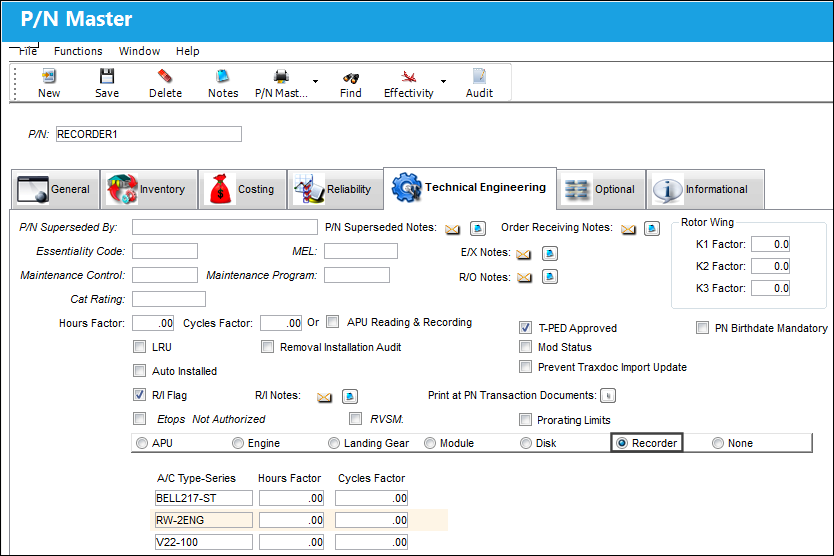

This NLA part is a Recorder. This indicates that the engine contains a Recorder which has information that can be tracked. Parts with this selection can be tracked via the P/N Engine Recorder Reading window via Technical Records.

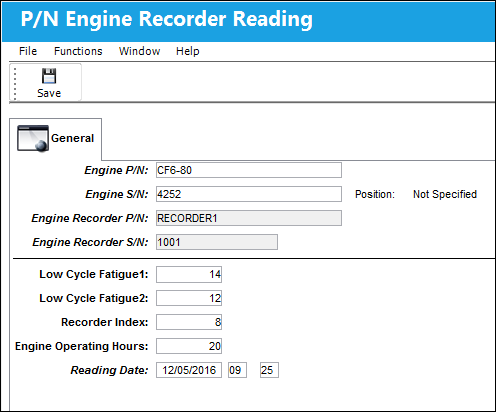

The following Recorder information was configured for this Recorder NLA via the P/N Engine Recorder Reading window. (The Formula 'LCF1' from above corresponds to the Low Cycle Fatigue1 field in this window.)

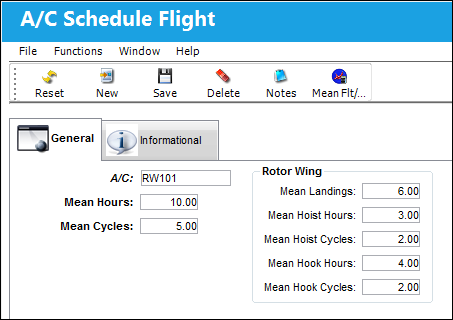

The following A/C Schedule Flight Mean times were defined for the Helicopter Aircraft via the A/C Schedule Flight window. This will help determine the Remaining schedule once the Planning Query is run.

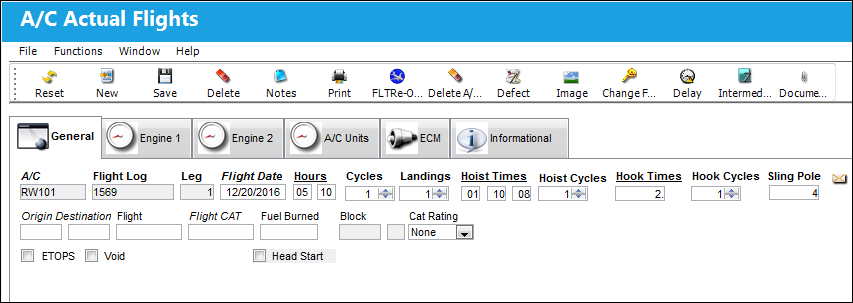

The following flight was scheduled to take place after the P/N Controls' Reset Date via the A/C Actual Flights window.

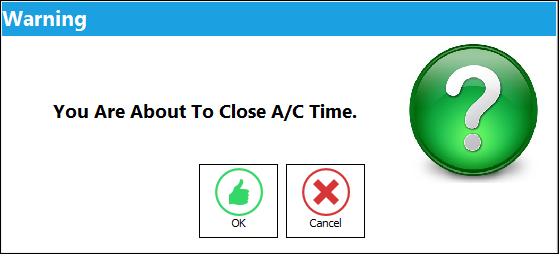

The actual flights are then closed via A/C Actuals Flights Closing.

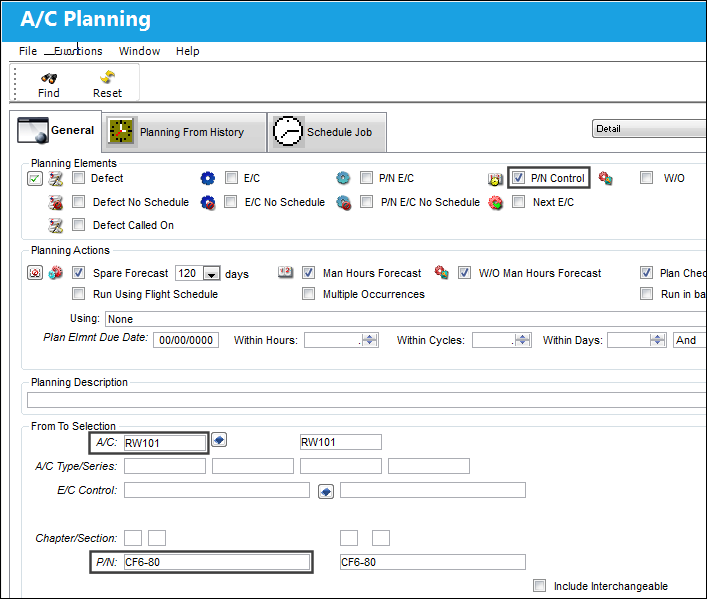

The Planning Query is then run for the P/N Controls for the NHA component and the Helicopter Aircraft that it's installed on.

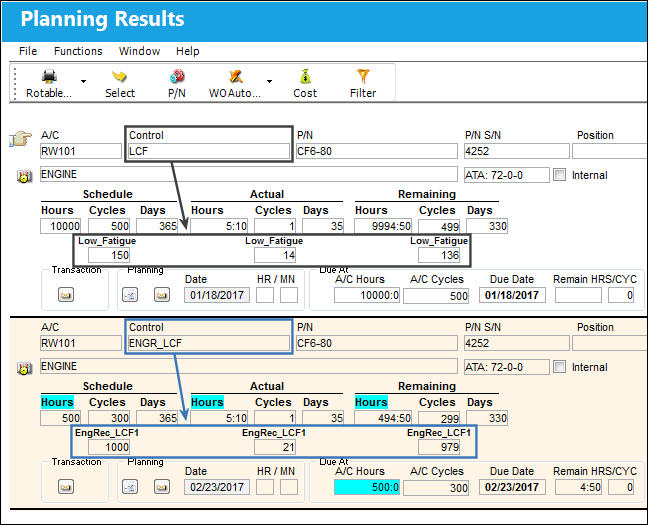

In the Planning Results window, notice that the schedules for each P/N Control have been calculated based on the Formulas for each control and the Flight times accumulated.

• Control 'LCF' has an Actual 'Low_Fatigue' schedule of 14 because the formula which is based on the information in the P/N Engine Recorder Reading window.
  • Low_Fatigue = 14
• Control 'ENGR_LCF' has an Actual 'EngRec_LCF1' schedule of 21 because of its formula which is based on the P/N's K Factors and the above 'Low_Fatigue' reading.
  • EngRec_LCF1 =
  • K1 + K2 * K3 + 'Low_Fatigue' =
  • 1 + 2 * 3 + 14 =
  • 1 + 6 + 14 = 21
