A/C Detail Item Print

The A/C Detail Item print will display the detail of all installed components on the A/C including controls.

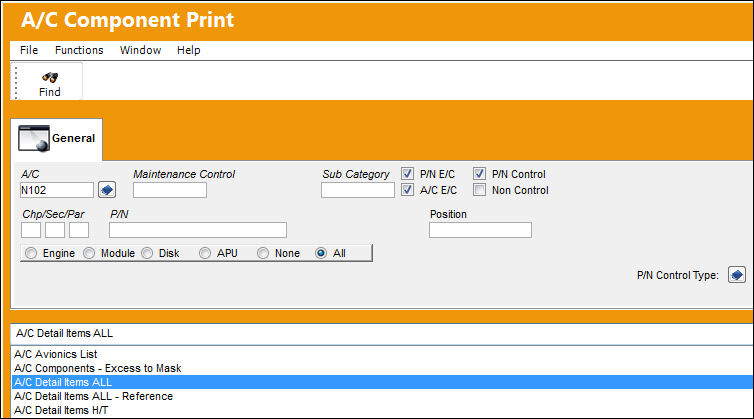

In the A/C Component Print window, select the A/C Detail Items ALL print. Enter the A/C in the A/C field or select the A/C drop down menu to select multiple A/Cs.

Select the Find button.

Note: All fields, with the exception of P/N and S/N, are greyed out and not editable. Certain fields will become available and controls will be selected depending on the report required.

Note: The following is one example of a print option that may be used. Use of other prints is determined by the the lease or sales agreement.

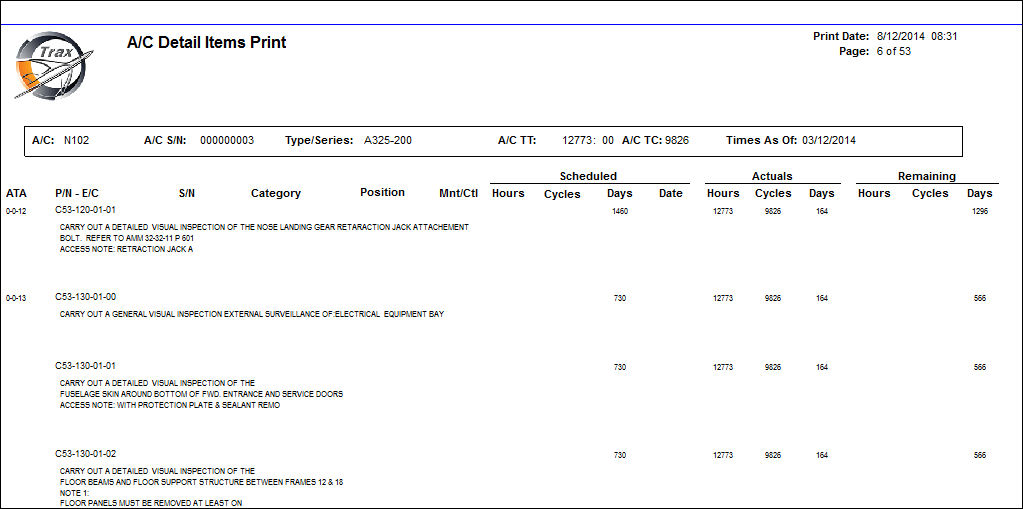

The A/C Detail Items Print will display with a detailed list of all installed items and controls:
