Engines and Components All Print

The Engines and Components All report will display all component and Engine information from actual life cycle information to P/N Control information.

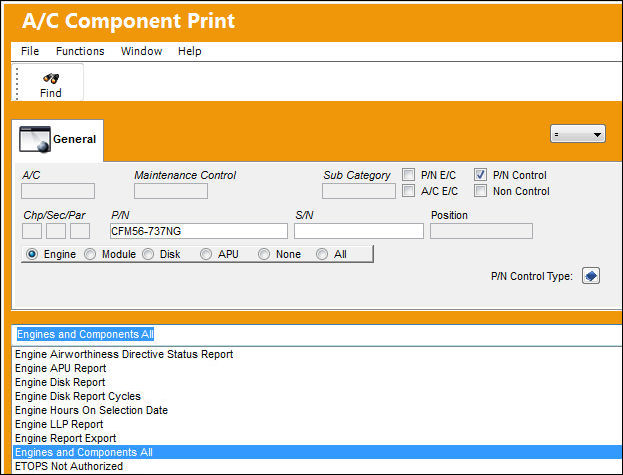

In the A/C Component Print window, select the Engines and Components All print. Search for the P/N required and select the Find button.

Note: All fields, with the exception of P/N and S/N, are greyed out and not editable. Certain fields will become available and controls will be selected depending on the report required.

Note: The following is one example of a print option that may be used. Use of other prints is determined by the the lease or sales agreement.

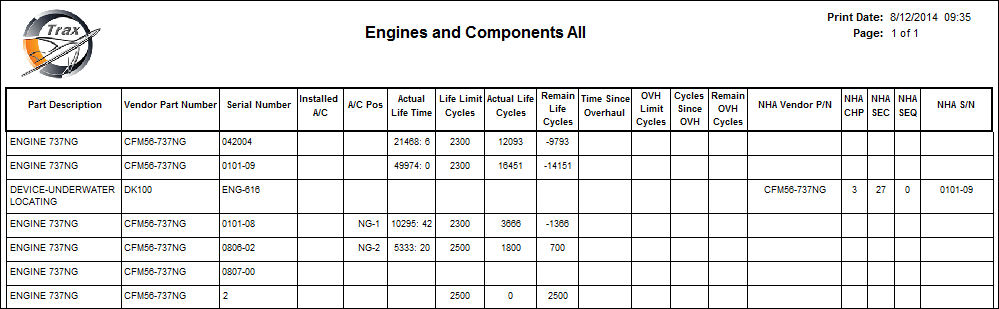

The Engines and Components All report will display all engine and associated component information with P/N controls.

Note: This is a customizable print. The above example is the TRAX standard Engines and Components All Print.
