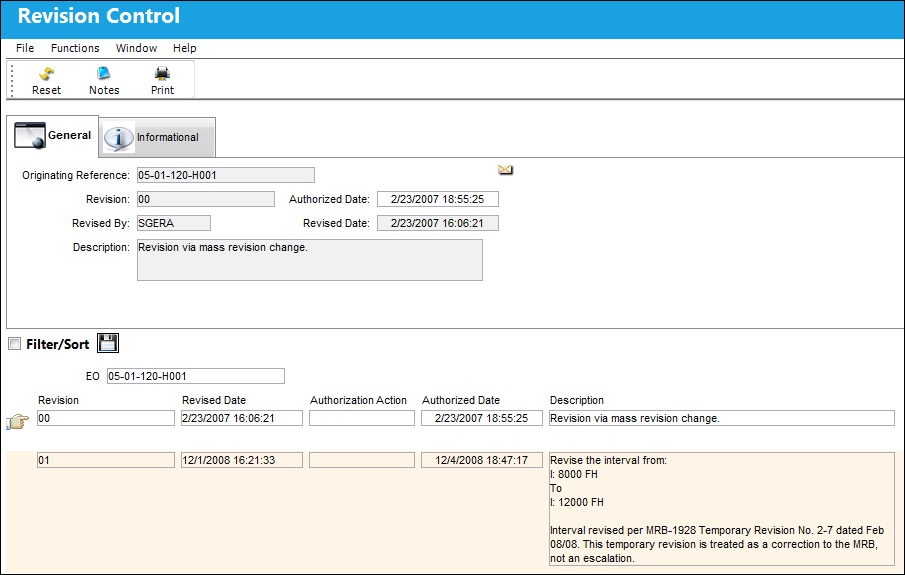

Select the Revision Control button to view the revision history for an E/C. The information in this window is view only. The user may not create new records or edit exiting revision records.

The following information/options are available in this window:
_____________________________________________________________________________________

Originating Reference

Original Engineering Control reference that requires revision.

Revision

The revision number of the E/C. This can be alpha numeric. When the revision is changed and saved, the system will prompt the user with a revision control record, where the changes made for the specific revision can be saved for auditing purposes. The 'Revised By' field will be automatically updated with the user's user code, and the revision date can be set as required.

Authorized Date

The date the new revision was authorized.

Revision By

The user who creates and/or authorizes the E/C revision.

Revised Date

The date of the new revision takes effect.

Description

The description/reason of the new revision.
