The Picklist button allows users to generate a picklist for a Shop Work Order's required parts, as long as those parts are available in the Inventory selected.

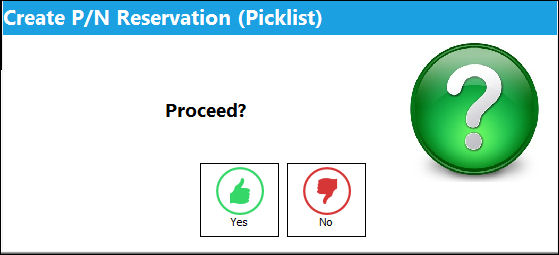

From the Shop W/O Detail, select the Picklist button. The system displays the Create P/N Reservation (Picklist) pop-up window. Select 'Yes' to proceed with the Picklist creation.

Note: Please note the setting and functionality of switch PNLABORRESE.

Note: If the Shop W/O does not have any part requirements against a Task Card or Non-Routine Task Card, then a Picklist cannot be created for the Shop W/O through this button.

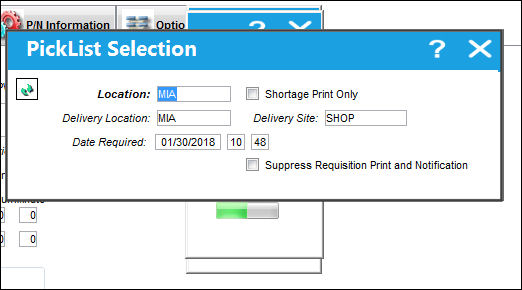

Populate all mandatory and desired information and select the Find button. If the required parts are available in Inventory, then a Picklist will be created for that part.

Note: If Inventory Switch VALPNCONTROLSCHEDULE is set to Yes, the system will validate all parts' P/N Controls' Actuals against their P/N Control Schedules. If no part in the inventory passes the validation test, the system will instead create a requisition for the part(s) instead of a picklist.

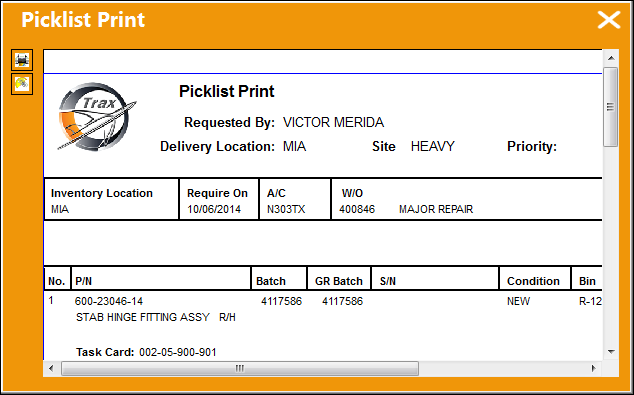

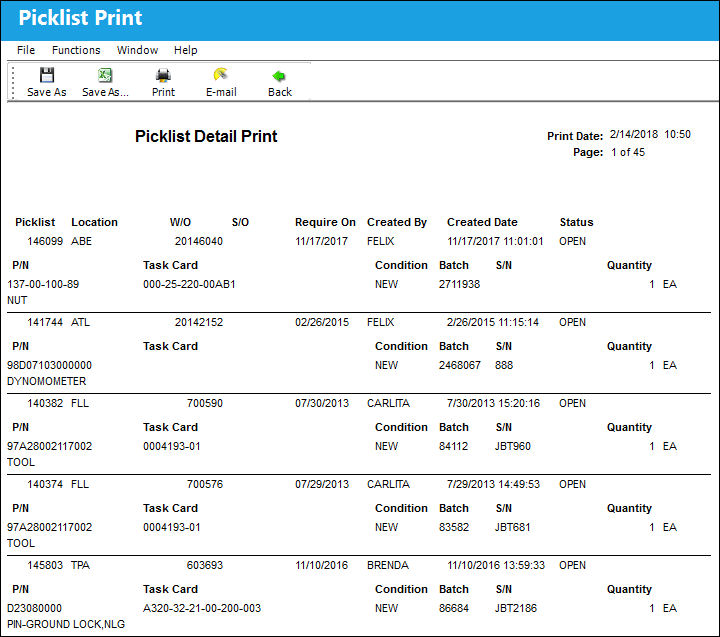

The Picklist Print is generated as shown below:

Note: Parts that are categorized as General (Interchangeable) parts will appear on the Picklist Print, regardless of their effectivity as long as the Main P/N is effective to the specified aircraft used to create the Shop Work Order.

ETOPS Picklist Reservation:

The following is an example of how ETOPS non authorized and ETOPS authorized parts behave when being reserved.

Note: Switch ETOPS must be set to No. For additional information, refer to Switch ETOPS, via the Inventory Switches Manual.

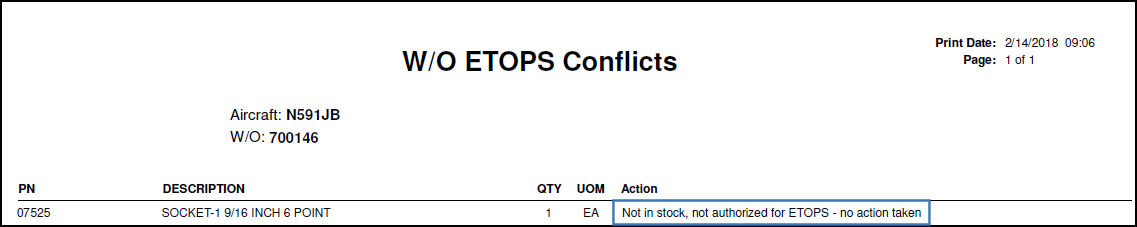

When creating a reservation for an ETOPS non authorized P/N, the main P/N is not reserved:

When creating a reservation for an ETOPS non authorized, non available P/N, the main P/N is not reserved:

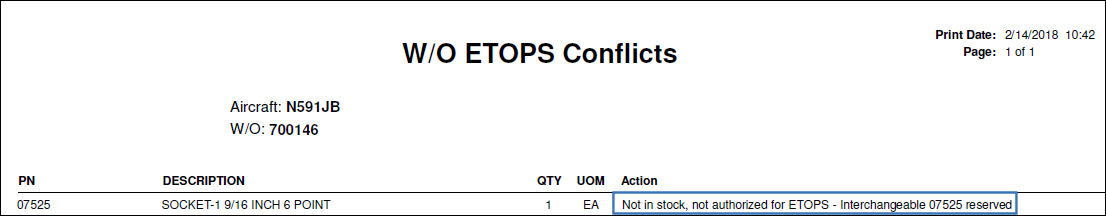

When creating a reservation for an ETOPS non authorized main P/N with an ETOPS authorized interchangeable, the main P/N is not reserved, but the interchangeable is reserved:
