TRAX MANUALS > System Administration > System Administration Module > System Administration, Explorer Menu > Security Explorer > Applying Wall Passwords > Wall Password Protected Transactions > Wall Password Example - Inventory Transaction Scrap

Within Inventory Transaction – when a Scrap for a unit is required – the system can optionally request the Wall Password in a pop-up window.

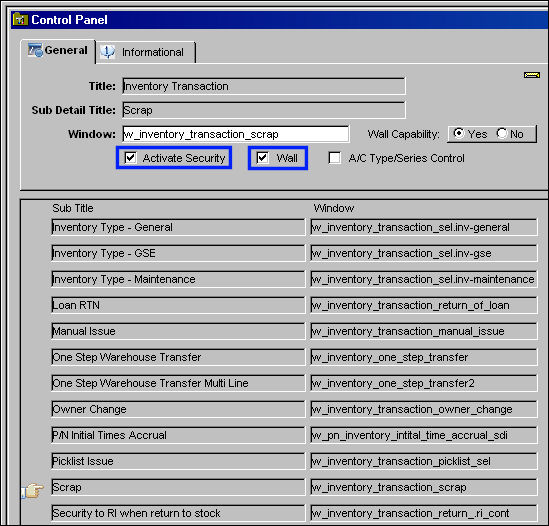

Place the Hand pointer in front of the desired Module (Inventory) and double click. In the next window, place the Hand pointer in front of the desired Category Title the user would like to control security/wall password from. Double click on selection (i.e. Inventory Transaction). In the next window, select the Activate Security and Wall checkboxes. Select the Sub Title and select the Save button. In this example the user has selected the Scrap Sub Title as shown below:

For more information about the above process, please refer to the Control Panel section of this manual.

Go to Inventory/Update/Inventory Transaction.

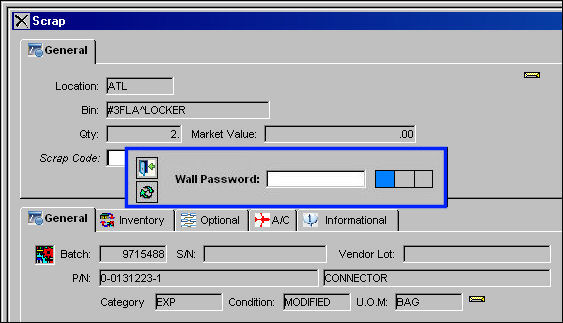

Select a Part Number and click on the Find button. Select the Scrap button. Select the Save button. The Wall Password pop-up appears.
